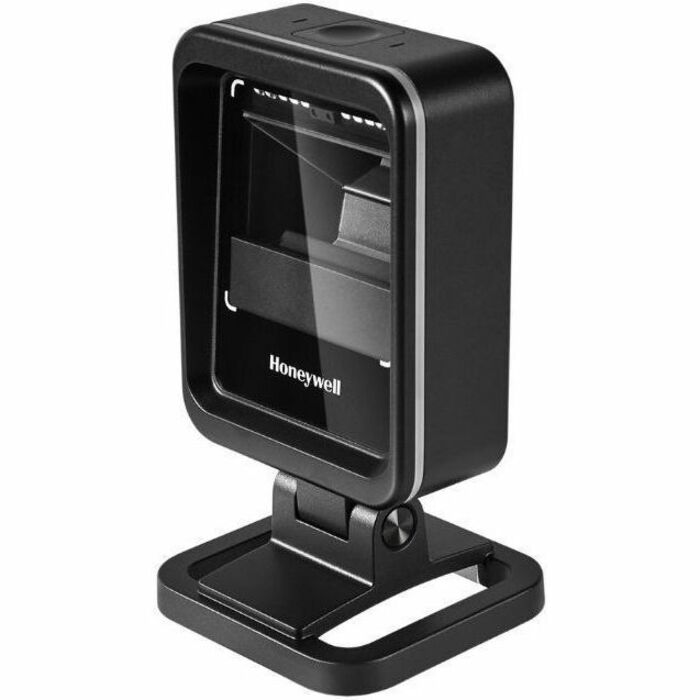

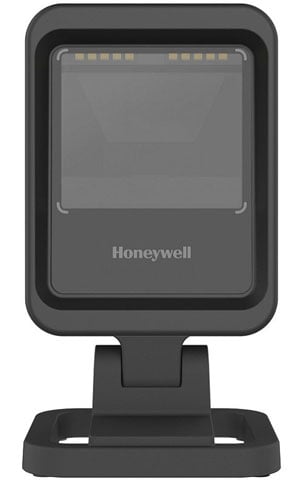

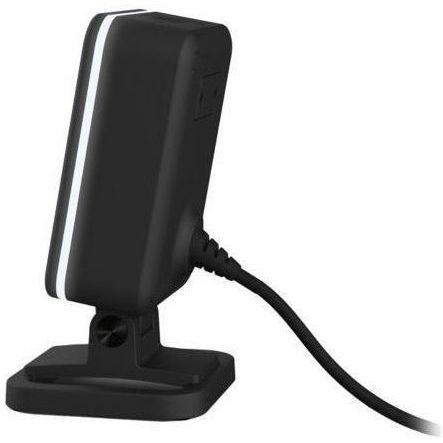

Honeywell Genesis XP 7680g – Barcode Scanner – Scanner with Cable and Stand

Part Number: 7680GSR-2USB-1-N
Model: Genesis XP 7680g
3-year Premium Plus ($108.81)
3-year Premium ($54.11)
No Support
Add to My Shopping List Add to Compare
$379.88
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
Reads standard 1D, 2D, PDF, Dotcode symbologies, Digimarc supported
Image Sensor Type
Imager

Product Description:

  Barcode Scanner, Honeywell Genesis XP 7680g, Genesis XP USB Kit: Tethered, 1D/2D, PDF417, Standard Range Focus, Black Scanner (7680GSR-2-N), USB Type A 3m Straight Cable (CBL-500-300-S00-09), Stand
Explore all Honeywell Genesis XP 7680g Barcode Scanners
Add to Quote
Honeywell 7680GSR-2USB-1-N Barcode Scanner
Honeywell 7680GSR-2USB-1-N Barcode Scanner
Honeywell 7680GSR-2USB-1-N Barcode Scanner
Honeywell 7680GSR-2USB-1-N Barcode Scanner
Honeywell 7680GSR-2USB-1-N Barcode Scanner
Honeywell 7680GSR-2USB-1-N Barcode Scanner
Honeywell 7680GSR-2USB-1-N Barcode Scanner
Honeywell 7680GSR-2USB-1-N Barcode Scanner Honeywell 7680GSR-2USB-1-N Barcode Scanner Honeywell 7680GSR-2USB-1-N Barcode Scanner Honeywell 7680GSR-2USB-1-N Barcode Scanner Honeywell 7680GSR-2USB-1-N Barcode Scanner Honeywell 7680GSR-2USB-1-N Barcode Scanner

Full specifications (PDF)

Honeywell Genesis XP 7680g Barcode Scanner Model Overview

The Honeywell Genesis XP 7680g is a cutting-edge hands-free presentation scanner designed to optimize workflow and enhance customer experiences. With its compact structure and modern aesthetic, this scanner operates with remarkable efficiency, featuring a 20% increase in scanning speed and a broader scanning area. Users can easily scan printed and digital barcodes with advanced motion tolerance, ensuring rapid reading of poorly printed or damaged barcodes. The warm white light and automatic object detection provide an intuitive scanning experience for both employees and customers alike.

Key Features
  • 20% Faster Scanning Speed: Improves overall productivity.
  • Compact Design: Minimal counter space required with an elegant look.
  • Flexible Placement Options: Comes with removable and adjustable stand; various mounting accessories available.
  • Robust Durability: Drop and tumble tested, ensuring reliability in demanding environments.
  • Future-proof Design: Field-upgradable firmware and auxiliary ports for future accessories.

Specifications
  • Dimensions: 80 mm x 40 mm x 105 mm (3.2 in x 1.6 in x 4.1 in)
  • Weight: 340 g (12 oz)
  • Input Voltage: 5.0V DC Typical
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Scanning Performance:
    • 1,280 x 800 pixel area image
    • Motion Tolerance: 400 cm/s (158 in/s)
  • Environmental Sealing: IP52
  • Warranty: 3-year factory warranty
Honeywell 7680GSR-2USB-1-N Barcode Scanner Overview

The Honeywell Genesis™ XP 7680g is a hands-free presentation scanner that delivers an impactful customer experience while increasing business productivity.

BIG VALUE IN A SMALL PACKAGE

Increased Productivity

The Genesis XP features 20% faster scanning speed and a larger scanning area than previous products. Honeywell's field proven XP scanning technology handles poorly printed and damaged barcodes with ease. Impressive depth of field allows barcodes to be read even if placed right at the face of the scanner.

Featuring a full 1 mega-pixel imager and fast processor, the Genesis XP reads barcodes fast and handles a high level of motion tolerance resulting in fewer repeat scans, keeping employees productive and efficient.

Fantastic User Experience

The compact and modern design offers a contemporary experience with minimal counter space required. The 360° tri-color LED ring highlights the scanning target area and provides clear user feedback, offering an intuitive experience for both employees and customers.

The scanning user experience is a key element for delightful customer engagement. The warm, white light illumination is more pleasing to the eye. The automatic object detection feature turns the illumination completely off between scans, so the scanner is not a distraction.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Reads standard 1D, 2D, PDF, Dotcode symbologies, Digimarc supported
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scan Pattern:
Area
Features:
Beep
Cable Type Included:
USB
Stand Included:
Yes
Field of View (Horizontal):
48°
Field of View (Vertical):
30°
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Motion Tolerance:
158 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:

50 drops @ 1.5 m

Minimum Print Contrast:
20%
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Image Sensor Resolution:
1280 x 800
Interfaces/Ports
Host Interface:
  • USB
  • Serial
  • Keyboard Wedge
  • IBM 46XX
Power Description
Maximum Operating Power Consumption:
2.50 W
Input Current:
500 mA
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Hands-free
Rugged:
Yes
Color Family:
Black
Product Color:
Black
Height:
12.1 ft
Width:
40"
Length:
80"
Weight (Approximate):
11.99 oz
Miscellaneous
Package Contents:
  • Genesis XP 7680g Scanner
  • USB Type A 3m straight cable
  • Stand
Ingress Protection (IP) Rating:
IP52
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (3)
  • Mounting Hardware and Stands (5)
  • Power Device (1)
  • Scanner Accessories (1)

Recommended Accessories for Model: Honeywell 7680GSR-2USB-1-N Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Honeywell 7680GSR-2USB-1-N

Top Mounting Hardware and Stands Purchased With Honeywell 7680GSR-2USB-1-N

See All Mounting Hardware and Stands for Honeywell 7680GSR-2USB-1-N Barcode Scanner >

Top Power Device Purchased With Honeywell 7680GSR-2USB-1-N

Top Scanner Accessories Purchased With Honeywell 7680GSR-2USB-1-N

Frequently Asked Questions

The Honeywell Genesis XP 7680g reads both 1D and 2D barcodes, including PDF417 symbologies. Its full 1 mega-pixel imager and fast processor enable reliable decoding across standard barcode formats, making it versatile for retail, warehouse, and logistics environments.

Yes, the Genesis XP 7680g is a hands-free presentation scanner designed for checkout and point-of-sale environments. It features a stand and delivers an impactful customer experience while allowing employees to remain productive without holding the device.

This model includes a USB Type A 3m straight cable for connection to your host system. The tethered configuration provides reliable power and data transmission, making it ideal for fixed-position scanning stations in warehouses and retail locations.

The Genesis XP 7680g delivers 20% faster scanning speed and features a larger scanning area than previous products. Combined with high motion tolerance, it reduces repeat scans and keeps employees productive and efficient in fast-paced environments.

The 7680GSR-2USB-1-N features standard range focus capability and handles a high level of motion tolerance, resulting in fewer repeat scans. The device's 1 mega-pixel imager and fast processor enable reliable scanning even with moving barcodes or operator movement.

Yes, the Genesis XP 7680g is engineered with flexibility in mind and can easily adapt to the workflows of today and tomorrow. Its programmable functionality and standard range focus allow customization for various logistics, retail, and warehouse applications. Contact us today to discuss your specific workflow requirements at barcodesinc.com.

The Honeywell 7680GSR-2USB-1-N Barcode Scanner is also known as HSM-7680GSR2USB1N or 7680GSR2USB1N.
