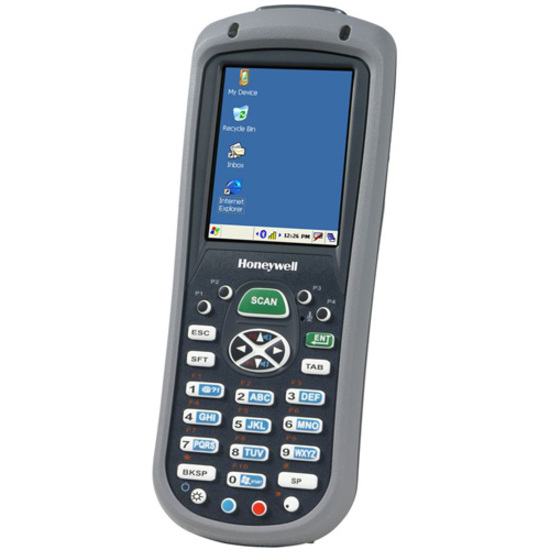

Honeywell 7600LG-122GB4EE Mobile Computer

The Honeywell 7600LG-122GB4EE Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell Dolphin 7600 - WLAN (US 802.11 b/g), WWAN (850/1900 GSM/GPRS EDGE) and WPAN (Bluetooth) / GPS / 5300SR Imager with high-vis aiming pattern / 38 key / 128MB RAM x 128MB Flash / Windows Mobile 6.0
  • Touch panel gives your workforce ease, along with familiar and flexible operation, thus improving overall efficiency on a daily basis
  • Provides simple, affordable and highly secure connectivity to your remote workers with wireless technology
  • 2.8" LCD screen is ideal for scan intensive applications
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Alphanumeric keypad allows prompt data input
  • Windows CE 5.0 OS offers reliable and real-time capabilities
  • 128 MB standard memory makes you productive with its smooth performance
  • SD memory card slot can be accessed by user to expand storage
  • Wireless connectivity technology delivers exceptional performance to offer maximum usability
Read More

Need a different version? See all Honeywell Dolphin 7600 Mobile Computers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Honeywell 7600LG-122GB4EE Mobile Computer
Honeywell 7600LG-122GB4EE Mobile Computer Honeywell 7600LG-122GB4EE Mobile Computer
Honeywell 7600LG-122GB4EE Mobile Computer
Honeywell 7600LG-122GB4EE Mobile Computer
Full specifications (PDF)

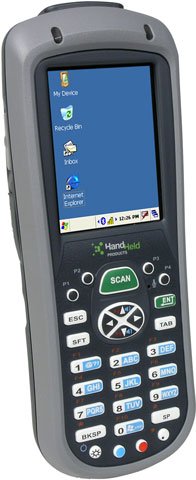

Honeywell Dolphin 7600 Mobile Computer Model Overview
The Dolphin 7600 mobile computer from Hand Held Products features Adaptus Imaging Technology 5.0 and Wireless LAN communication, which gives users the ability to collect, manage, and communicate data effectively and efficiently. Advanced power management ensures that the device is up and running for the duration of a work shift. Its durability and reliability make it ideal for use in retail, parcel delivery, postal, route accounting, field services, warehousing, and task management applications. The device connects easily to external devices via USB, Bluetooth, IrDA, and serial connectivity. A numeric 29-key keypad enables efficient one-handed operation while the backlight increases usability in most lighting conditions.
Honeywell 7600LG-122GB4EE Mobile Computer Overview

The Dolphin 7600 is Hand Held Products most compact mobile computer, offering a range of features and functionality superior to other devices in its class. Combining the data collection and communication attributes of an industrial grade mobile computer with a more compact and cost effective design, the 7600 finally offers you the opportunity to deploy a powerful and reliable productivity tool, without hurting your bottom line.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Scanner Range:
Standard Range
Drop Specification (To Concrete):
48"
Air Electrostatic Discharge (+/-):
12kV DC
Direct Electrostatic Discharge (+/-):
8kV DC
Processor & Chipset
Processor Manufacturer:
Samsung
Processor Speed:
400 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
128 MB
Memory Card Slot:
Yes
Memory Card Supported:
  • SD
  • MultiMediaCard (MMC)
Display & Graphics
Screen Size:
2.8"
Screen Mode:
QVGA
Screen Resolution:
240 x 320
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
38
Keyboard Type:
Alphanumeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b/g
Cellular Network Supported:
GSM
GPS:
Yes
Wireless Security:
  • WEP
  • 802.1x
  • LEAP
  • TKIP
  • MD5
  • EAP-TLS
  • EAP-TTLS
  • WPA-PSK
  • PEAP
Software
Operating System:
Windows CE 5.0
Battery Information
Battery Capacity:
2200 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Width:
2.7"
Depth:
1.8"
Length:
7"
Weight (Approximate):
11.70 oz
Miscellaneous
Certifications & Standards:
  • Environmental: IP54

Safety:

  • cUL 60950
  • NOM
  • EN60950
  • BSMI CN14336
  • CCC GB4943
  • PSB
  • SIRIM

EMC:

  • FCC Part 15 Class B
  • ICES-003
  • EN 301 489-1
  • EN 301 489-17
  • EN55022
  • EN55024
  • BSMI CNS13438
  • CCC
  • GB9254
  • MIC
  • AS/NZS 3548

Radio:

  • FCC 15.247
  • RSS-210
  • COFETEL
  • EN 300 328-1
  • EN 300 328-2
  • SRRC ETS 300 328
  • IDA
  • SIRIM
  • MIC
  • ARIB STD-T33 & T66
  • AS/NZS 4771
Item Numbers
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Honeywell 7600LG-122GB4EE Mobile Computer is also known as HHP-7600LG-122GB4EE or 7600LG122GB4EE.
