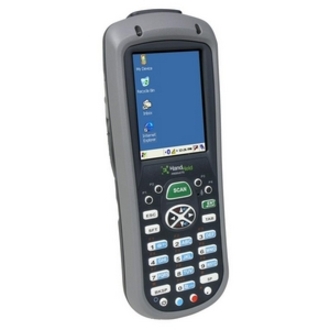

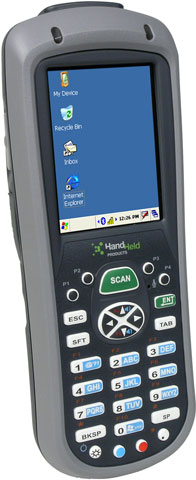

Honeywell Dolphin 7600 – Mobile Computer – Windows CE 5.0 – 128 MB

Part Number: 7600BP-111-21EE
Model: Dolphin 7600
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

RAM Memory
128 MB
IP Rating
IP54
Operating System
Windows CE 5.0

Product Description:

  WPAN (Bluetooth) / 5300SR Imager with high-vis aiming pattern / 29 key / standard capacity battery / 128MB RAM x 128MB Flash / Windows CE 5.0
Explore all Honeywell Dolphin 7600 Mobile Computers
Add to Quote
Honeywell 7600BP-111-21EE Mobile Computer
Honeywell 7600BP-111-21EE Mobile Computer
Honeywell 7600BP-111-21EE Mobile Computer Honeywell 7600BP-111-21EE Mobile Computer
Full specifications (PDF)

Honeywell Dolphin 7600 Mobile Computer Model Overview

The Dolphin 7600 mobile computer from Hand Held Products features Adaptus Imaging Technology 5.0 and Wireless LAN communication, which gives users the ability to collect, manage, and communicate data effectively and efficiently. Advanced power management ensures that the device is up and running for the duration of a work shift. Its durability and reliability make it ideal for use in retail, parcel delivery, postal, route accounting, field services, warehousing, and task management applications. The device connects easily to external devices via USB, Bluetooth, IrDA, and serial connectivity. A numeric 29-key keypad enables efficient one-handed operation while the backlight increases usability in most lighting conditions.
Honeywell 7600BP-111-21EE Mobile Computer Overview

The Dolphin 7600 device is Honeywell's most compact mobile computer, offering a range of features and functionality superior to other devices in its class. Combining the data collection and communication attributes of an industrial grade mobile computer with a more compact and cost effective design, the 7600 finally offers you the opportunity to deploy a powerful and reliable productivity tool, without hurting your bottom line.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Batch
Image Sensor Type:
Imager
Scanner Range:
Standard Range
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9
  • Code 11
  • Code 32 Pharmaceutical (PARAF)
  • Code 128
  • Code 93
  • EAN Add-ons
  • EAN Extensions
  • Coupon Code
  • EAN-13
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • Plessey
  • PosiCode
  • RSS
  • Straight 2 of 5 IATA
  • Straight 2 of 5 Industrial
  • Telepen
  • Trioptic Code
  • UCC/EAN 128
  • UPC
  • UPC-A
  • Aztec
  • Code 16K
  • Composite
  • DataMatrix
  • MaxiCode
  • OCR
  • PDF 417
  • QR Code
  • Aztec Mesa
  • Codablock F
  • RSS-14
  • UCC/EAN
  • OCR-A
  • OCR-B
  • Postnet
  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX(Netherlands) Post
  • Korea Post
  • Planet Code
Drop Specification (To Concrete):
47.24"
Air Electrostatic Discharge (+/-):
12kV DC
Direct Electrostatic Discharge (+/-):
8kV DC
Processor & Chipset
Processor Manufacturer:
Samsung
Processor Speed:
400 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
128 MB
Memory Card Slot:
Yes
Memory Card Supported:
  • MultiMediaCard (MMC)
  • SD
Display & Graphics
Screen Size:
2.8"
Screen Mode:
QVGA
Screen Resolution:
240 x 320
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
29
Keyboard Type:
Alphanumeric
Network & Communication
Bluetooth:
Yes
Software
Operating System:
Windows CE .NET 5.0
Battery Information
Battery Capacity:
2200 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Width:
2.7"
Depth:
1.7"
Length:
7"
Weight (Approximate):
11.70 oz
Miscellaneous
Certifications & Standards:

Safety:

  • cUL 60950
  • NOM
  • EN60950
  • BSMI CN14336
  • CCC GB4943
  • PSB
  • SIRIM

EMC:

  • FCC Part 15 Class B
  • ICES-003
  • EN 301 489-1
  • EN 301 489-17
  • EN55022
  • EN55024
  • BSMI CNS13438
  • CCC GB9254
  • MIC
  • AS/NZS 3548

Radio:

  • FCC 15.247
  • RSS-210
  • COFETEL
  • EN 300 328-1
  • EN 300 328-2
  • SRRC ETS 300 328
  • IDA
  • SIRIM
  • MIC
  • ARIB STD-T33 & T66
  • AS/NZS 4771
