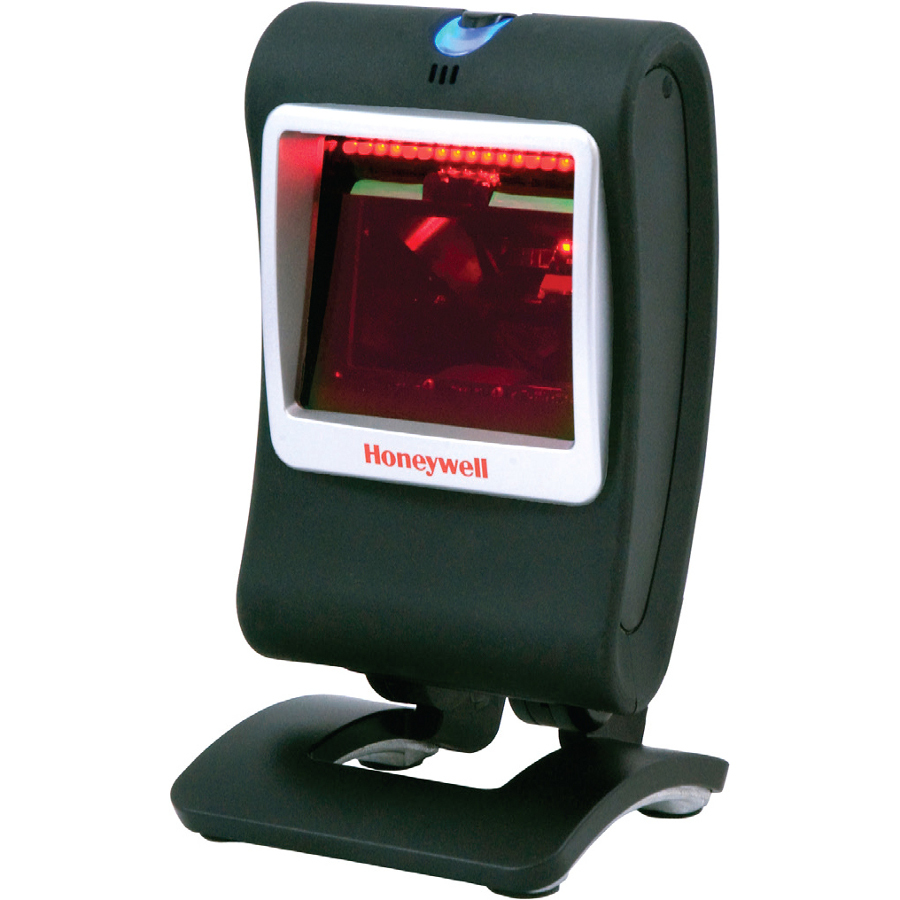

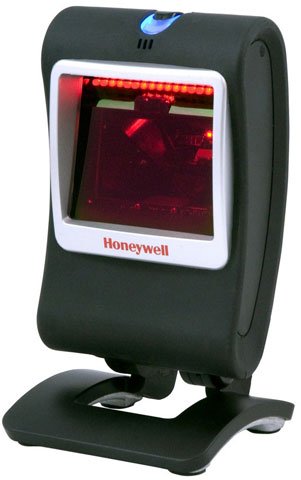

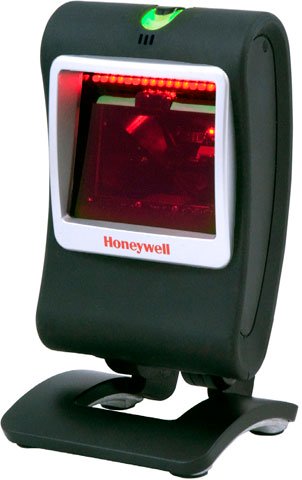

Honeywell 7580G-2-TFDL Barcode Scanner

Honeywell Genesis 7580g - SCANNER ONLY. 2D Scanner, PDF417, EasyDL (Drivers License) software, RS-232-TTL/USB/Keyboard wedge, IBM 46xx RS-485 interfaces.

Honeywell's Genesis 7580g, the world's first presentation area-imaging scanner engineered to decode all standard 1D, PDF417 and 2D codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design. Powered by Adaptus Imaging Technology 6.0, the Genesis 7580g is redefining industry standards for imaging solutions. Breakthrough performance and a versatile form factor make this product suitable for environments ranging from manufacturing to health care to retail POS.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported: Reads standard 1D, PDF, 2D, Postal and OCR symbologies
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 0.39" - 3.15"@5 mil - 1D
    • 0.20" - 4.72"@7.50 mil - 1D
    • 0 mil - 6.50"@10 mil - 1D
    • 0 mil - 7.09"@13 mil - 1D
    • 0 mil - 5.91"@10 mil - PDF
    • 78.7 mil - 7.48"@20 mil - Data Matrix

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 7580g
  • Product Name: Genesis 7580g Area-Imaging Scanner
  • Product Line: Genesis

Physical Characteristics

  • Height: 5.9"
  • Width: 3.3"
  • Length: 3.2"
  • Weight (Approximate): 12 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • CE
    • cUL

Power Description

  • Input Voltage: 5.5 V DC

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model 7580g
Scan Pattern Area
Scanner Type Imager
Form Factor Presentation, Handheld
Connectivity Corded
Scanner Capability 2D
Ruggedness General Purpose

Recommended Accessories for Model: Honeywell 7580g Scanner
Honeywell Cable (CBL-720-300-C00)
Keyboard wedge, black, PS/2, 3m (9.8'), coiled, 5 V external power with option for host power
In Stock: Ships Same Day
$22.20
+ Add to Quote
Honeywell Cable (CBL-500-300-S00)
Accessory, Honeywell USB Cable, Straight, Type A, 5V Host Power, 9.8' (3m) Length, Color: Black, Compatible with Select Honeywell Scanners.
In Stock: Ships Same Day
$22.20
+ Add to Quote
Honeywell Cable (CBL-020-300-C00)
RS-232 Cable (5V signals), black, DB-9 Female, 3m (9.8'), coiled, 5V external power with option for host power on pin 9
In Stock: Ships Same Day
$22.20
+ Add to Quote
Honeywell 1400g Accessories (46-00525-6)
Accessory, Honeywell Power supply, 1A Output Current, 90 to 255 AC Input Voltage, North American Plug, Compatible with Select Honeywell Scanners.
In Stock: Ships Same Day
$34.40
+ Add to Quote
Honeywell Cable (CBL-503-300-S00)
USB, black, 12V locking, 3m (9.8'), straight, 5V host power. Non-Cancelable/Non-Returnable.
In Stock: Ships Same Day
$35.00
+ Add to Quote
Protect Your Product
Honeywell Service Contracts (SVC7580-EXW4)
SERVICE CONTRACT, 7580G, BASIC, 10-15 DAY TURN, 4 YEARS (2 YEAR FACTORY WARRANTY + 2 YEAR EXTENDED) (20 UNIT MINIMUM)
$17.80
+ Add to Quote
Honeywell Service Contracts (SVC7580-EXW3)
SERVICE CONTRACT, 7580G, BASIC, 10-15 DAY TURN, 3 YEARS (2 YEAR FACTORY WARRANTY + 1 YEAR EXTENDED) (20 UNIT MINIMUM)
$17.80
+ Add to Quote
Honeywell Service Contracts (SVC7580-EXW1R)
SERVICE CONTRACT, 7580G, BASIC, 10-15 DAY TURN, 1 YEAR RENEWAL OR POSTSALES CONTRACT (20 UNIT MINIMUM)
$19.40
+ Add to Quote
Honeywell Service Contracts (SVC7580-AEFC2R)
7580, FULL COMPREHENSIVE, ADVANCED EXCHANGE, CUSTOMER SPARES, 2 YEAR RENEWAL (100 UNIT MINIMUM)
$58.40
+ Add to Quote
Honeywell Service Contract - 3 year (SVC7580-5FC3)
7580, FULL COMPREHENSIVE, 5 DAY TURN, 3 YEAR DAYONE
$41.90
+ Add to Quote

The Honeywell 7580G-2-TFDL is also known as HSM-7580G2TFDL or 7580G2TFDL .
