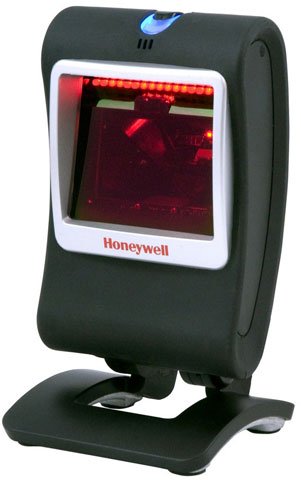

Honeywell 7580G-2-1D Barcode Scanner
Honeywell 7580G-2-1D Barcode Scanner
Honeywell Genesis 7580g -
SCANNER ONLY. 1D Scanner, RS-232-TTL/USB/Keyboard wedge, IBM 46xx RS-485 interfaces.
Honeywell's Genesis 7580g, the world's first presentation area-imaging scanner engineered to decode all standard 1D, PDF417 and 2D codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design. Powered by Adaptus Imaging Technology 6.0, the Genesis 7580g is redefining industry standards for imaging solutions. Breakthrough performance and a versatile form factor make this product suitable for environments ranging from manufacturing to health care to retail POS.
Technical Information
- Barcode Dimension: 1D
- Connectivity Technology: Cable
- Image Sensor: Imager
- Barcode Symbology Supported: Reads standard 1D symbologies
- Maximum Scan Resolution: 7.50 mil
- Depth of Field:
- 0.39" - 3.15"@5 mil - 1D
- 0.20" - 4.72"@7.50 mil - 1D
- 0 mil - 6.50"@10 mil - 1D
- 0 mil - 7.09"@13 mil - 1D
- 0 mil - 5.91"@10 mil - PDF
- 78.7 mil - 7.48"@20 mil - Data Matrix
General Information
- Product Type: Desktop Barcode Scanner
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: 7580g
- Product Name: Genesis 7580g Area-Imaging Scanner
- Product Line: Genesis
Physical Characteristics
- Height: 5.9"
- Width: 3.3"
- Length: 3.2"
- Weight (Approximate): 12 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- WEEE
- Certifications & Standards:
- CE
- cUL
Power Description
- Input Voltage: 5.5 V DC
Warranty
- Limited Warranty: 2 Year
Full specifications (PDF)| Brand | Honeywell |
| Model | 7580g |
| Connectivity | Corded |
| Form Factor | Presentation, Handheld |
| Scanner Type | Imager |
| Scan Pattern | Area |
| Scanner Capability | 2D |
| Ruggedness | General Purpose |
Recommended Accessories for Model: Honeywell 7580g Scanner
|
Honeywell Cable (CBL-720-300-C00)
Keyboard wedge, black, PS/2, 3m (9.8'), coiled, 5 V external power with option for host power
:
|
$22.20 + Add to Quote |
|
Honeywell Cable (CBL-500-300-S00)
Accessory, Honeywell USB Cable, Straight, Type A, 5V Host Power, 9.8' (3m) Length, Color: Black, Compatible with Select Honeywell Scanners.
:
|
$22.20 + Add to Quote |
|
Honeywell Cable (CBL-020-300-C00)
RS-232 Cable (5V signals), black, DB-9 Female, 3m (9.8'), coiled, 5V external power with option for host power on pin 9
:
|
$22.20 + Add to Quote |
|
Honeywell 1400g Accessories (46-00525-6)
Accessory, Honeywell Power supply, 1A Output Current, 90 to 255 AC Input Voltage, North American Plug, Compatible with Select Honeywell Scanners.
:
|
$34.40 + Add to Quote |
|
|
Honeywell Cable (CBL-503-300-S00)
USB, black, 12V locking, 3m (9.8'), straight, 5V host power. Non-Cancelable/Non-Returnable.
:
|
$35.00 + Add to Quote |
Protect Your Product
|
|
Honeywell Service Contracts (SVC7580-EXW4)
SERVICE CONTRACT, 7580G, BASIC, 10-15 DAY TURN, 4 YEARS (2 YEAR FACTORY WARRANTY + 2 YEAR EXTENDED) (20 UNIT MINIMUM)
|
$17.80 + Add to Quote |
|
|
Honeywell Service Contracts (SVC7580-EXW3)
SERVICE CONTRACT, 7580G, BASIC, 10-15 DAY TURN, 3 YEARS (2 YEAR FACTORY WARRANTY + 1 YEAR EXTENDED) (20 UNIT MINIMUM)
|
$17.80 + Add to Quote |
|
|
Honeywell Service Contracts (SVC7580-EXW1R)
SERVICE CONTRACT, 7580G, BASIC, 10-15 DAY TURN, 1 YEAR RENEWAL OR POSTSALES CONTRACT (20 UNIT MINIMUM)
|
$19.40 + Add to Quote |
|
|
Honeywell Service Contracts (SVC7580-AEFC2R)
7580, FULL COMPREHENSIVE, ADVANCED EXCHANGE, CUSTOMER SPARES, 2 YEAR RENEWAL (100 UNIT MINIMUM)
|
$58.40 + Add to Quote |
|
|
Honeywell Service Contract - 3 year (SVC7580-5FC3)
7580, FULL COMPREHENSIVE, 5 DAY TURN, 3 YEAR DAYONE
|
$41.90 + Add to Quote |
The Honeywell 7580G-2-1D is also known as HSM-7580G21D or 7580G21D .
