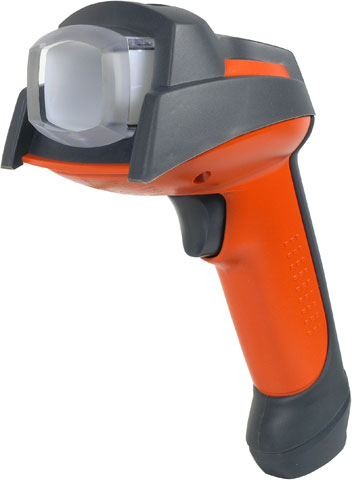

Honeywell DPM 6300 – Barcode Scanner – 1D

Part Number: 6300IDP351S-0AA
Model: DPM 6300

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  USB kit. Includes coiled USB cable and user's guide.

Honeywell DPM 6300 Barcode Scanner Model Overview

The Handheld DPM 6300 Direct Part Mark (DPM) Readers are the only solutions in the industry that read everything from the most challenging DPM codes to the easiest printed barcodes. The DPM 6300 is powered by Adaptus Imaging Technology 5.0 - the world's leading technology brand for image-based barcode reading. The Adaptus Imaging 5.0 platform allows the DPM 6300 readers to optimally illuminate marks of any type, on any surface.
Honeywell 6300IDP351S-0AA Barcode Scanner Overview

Direct Part Mark identification for part traceability demands rugged, self-contained readers that perform consistently on all types of codes and parts. The Direct Part Mark 6300 Bar Code Reader from Hand Held Product is the only solution in the industry that read everything from the most challenging DPM codes to the easiest printed bar codes.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • DataMatrix
  • QR Code
  • EAN-13
  • UPC-A
  • EAN-8
  • UPC-E
  • Interleaved 2 of 5
  • Code 39
  • Code 128
  • Code 93
Image Sensor Type:
Imager
Depth of Field:
  • 0" - 1.4"@5mil
  • 0" - 2.1"@10mil
  • 0" - 3"@15mil
  • 0" - 3.8"@20mil
Scan Pattern:
Omni-directional
Cable Type Included:
USB
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Height:
6.9"
Width:
5.3"
Depth:
3.3"
Weight (Approximate):
9.50 oz
Miscellaneous
Package Contents:
  • Direct Part Mark 6300 Bar Code Reader (North America)
  • Power Supply
  • Coiled USB Cable
  • User Documentation
Additional Information:

Supported Interfaces:

  • USB
  • Keyboard Wedge
  • TTL level RS-232

USB Cable separate

Certifications & Standards:
  • CE
  • FCC
  • UL
  • CSA
Warranty
Limited Warranty:
18 Month
Item Numbers
UNSPSC: 43211701
