Full specifications (PDF)
Maximum Image Resolution:
2592 x 1944

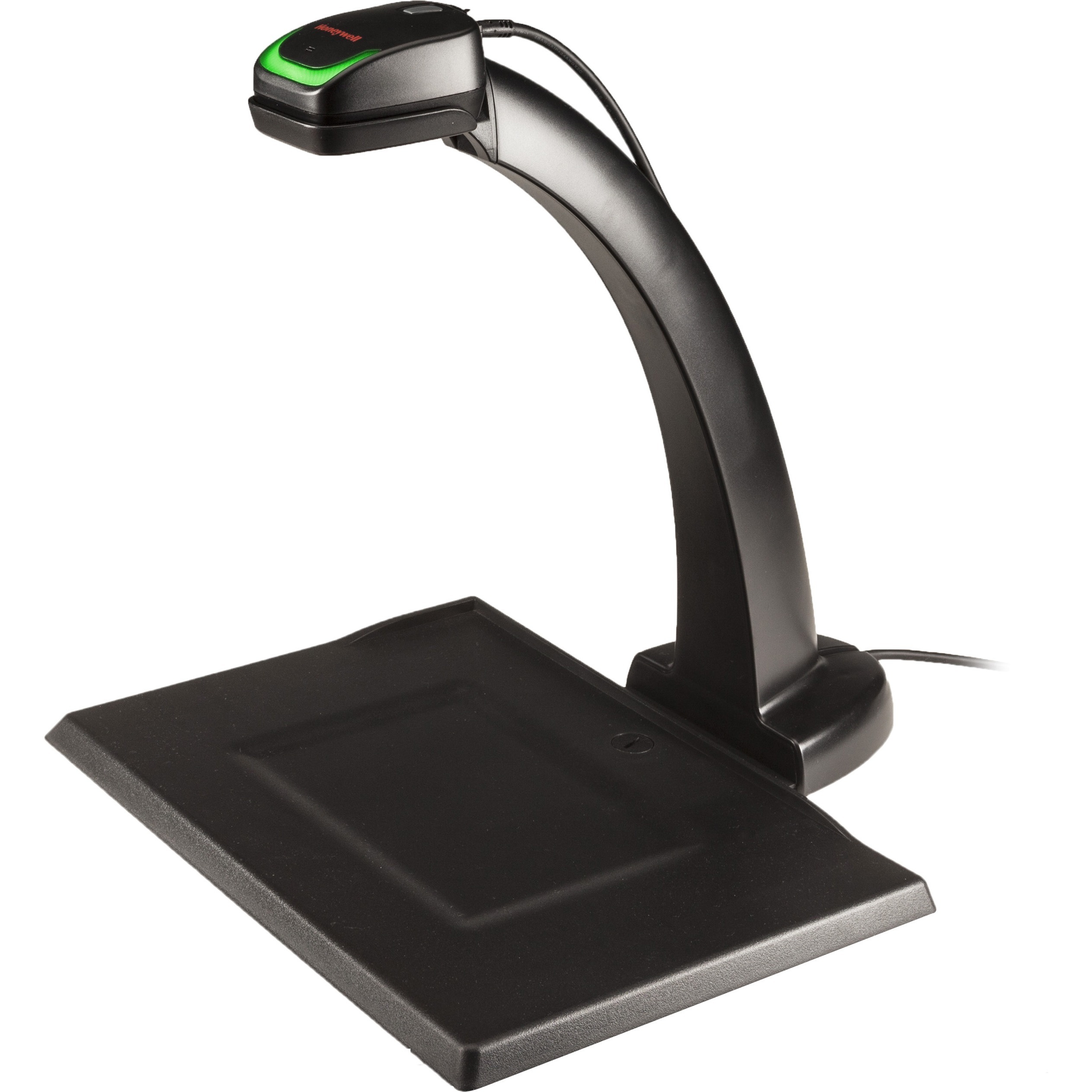

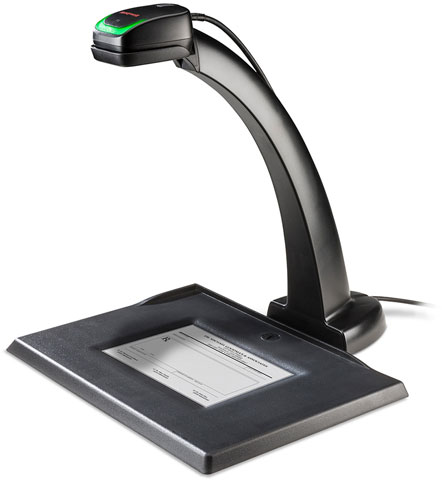

Honeywell 4850DR Document Imager – Barcode Scanner – Corded – 2D – Scanner with Cable and Stand
Part Number:
4850DR153C-0F00E
Model:
4850DR Document Imager
Honeywell 4850dr Document Scanner Model Overview
The 4850DR Document Reader is an innovative solution designed to simplify recordkeeping through efficient digitization of paper documents. This fully-featured document imager offers seamless processing, storage, and retrieval capabilities while eliminating the drawbacks of traditional scanners with no moving parts. Powered by Adaptus Imaging Technology, the 4850dr ensures high-quality image capture of documents up to A4 size. Its integrated image enhancement tools make adjusting text sharpness, contrast, and orientation a breeze, while advanced barcode scanning functionality adds versatility, making it an ideal choice for both small offices and large enterprises.
Key Features
Specifications
Key Features
- Purpose-Built for Document Imaging: Integrated solution with no adjustments needed for varying document sizes.
- Versatile Document Imaging Performance: Captures crisp images up to 8.5" x 11" or A4 size in any color.
- Durable & Reliable Technology: Solid-state components and a three-year warranty ensure longevity.
- Broad Connectivity Options: Supports TWAIN, SANE, and USB drivers for easy integration.
- Barcode Scanning Functionality: Eliminates the need for a standalone barcode scanner.
- Integrated Image Enhancement Tools: Includes sharpening, contrast adjustment, and compression options.
Specifications
- Dimensions: 383 x 340 x 365 mm (15.1 x 13.4 x 14.4 in)
- Weight: Imager: 85 g (3 oz); Stand: 2 kg (4.4 lb)
- Input Voltage: 4.5 to 5.25 VDC
- Operating Power: 1.75 W (350 mA @ 5 VDC)
- Standby Power: 0.5 W (100 mA @ 5 VDC)
- Environmental Sealing: IP40
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 60°C (4°F to 140°F)
- Image Speed: 17 ppm minimum
- Image Format: JPEG, BMP, TIFF
- Warranty: 3 years
Honeywell 4850DR153C-0F00E Barcode Scanner Overview
For those looking to streamline recordkeeping, the 4850dr is a fullyfeatured document imager designed to digitize paper documents for simple and efficient paperless processing, storage and retrieval. Unlike traditional document scanners, the 4850dr has no moving parts, requires no regular maintenance, scans barcodes, and comes with a superior three-year warranty.
Powered by Adaptus Imaging Technology, the 4850dr captures crisp images of documents up to 8.5" x 11" or A4 formant, regardless of the paper or text color. An integrated suite of easy-to-use image enhancement tools can be used to sharpen text, improve contrast, reorient or magnify the image. In addition, built-in auto-cropping and an array of file configuration options and compression functions ensure optimum image quality and file size for your application requirements. The 4850dr also has the added flexibility of barcode scanning functionality, with the capability to read all linear, stacked, and 2D codes.
The 4850dr's integrated stand design and document tray ensure easy setup and operation, without the need for continuous adjustment or calibration.There is no need to reposition the device, regardless of document size; simply place the document in the tray and capture the image.
A broad set of connectivity options-including TWAIN, SANE and USB 2.0-ensure you can connect the 4850dr directly to your host system without the need for any modifications or costly adapters.
Featuring 100% solid-state technology, there are no moving parts that can fail or require routine maintenance-ensuring years of uninterrupted, trouble-free operation. Combined with a full threeyear comprehensive warranty, the 4850dr delivers unmatched reliability and a low total cost of ownership.
Powered by Adaptus Imaging Technology, the 4850dr captures crisp images of documents up to 8.5" x 11" or A4 formant, regardless of the paper or text color. An integrated suite of easy-to-use image enhancement tools can be used to sharpen text, improve contrast, reorient or magnify the image. In addition, built-in auto-cropping and an array of file configuration options and compression functions ensure optimum image quality and file size for your application requirements. The 4850dr also has the added flexibility of barcode scanning functionality, with the capability to read all linear, stacked, and 2D codes.
The 4850dr's integrated stand design and document tray ensure easy setup and operation, without the need for continuous adjustment or calibration.There is no need to reposition the device, regardless of document size; simply place the document in the tray and capture the image.
A broad set of connectivity options-including TWAIN, SANE and USB 2.0-ensure you can connect the 4850dr directly to your host system without the need for any modifications or costly adapters.
Featuring 100% solid-state technology, there are no moving parts that can fail or require routine maintenance-ensuring years of uninterrupted, trouble-free operation. Combined with a full threeyear comprehensive warranty, the 4850dr delivers unmatched reliability and a low total cost of ownership.
Technical Information
Interfaces/Ports
USB:
Yes
Power Description
Input Voltage:
5.25 V DC
Physical Characteristics
Height:
14.4"
Width:
13.4"
Length:
15.1"
Item Numbers
GTIN:
4250389269826, 4260367721666
EAN:
4250389269826, 4260367721666
UNSPSC:
45121517
Recommended Accessories
Category
- Cables, Connectors, and Adapters (2)
Recommended Accessories for Model: Honeywell 4850DR153C-0F00E Barcode Scanner
Top Cables, Connectors, and Adapters Purchased With Honeywell 4850DR153C-0F00E
-
Honeywell 42206433-01E AccessoryUSB,+5V, 8.5FT, straight cable ending in right angle (8.5ft, 3.7m). Non-Cancelable/Non-Returnable.Item on backorder — chat for lead time$46.70 -
Honeywell CBL-500-200-S00-02 Cables, Connectors, and Adapters6'' USB A-Type to Micro B Cable for 4850DRItem on backorder — chat for lead time$54.83
Frequently Asked Questions
What types of barcodes can the Honeywell 4850DR scanner read?
The Honeywell 4850DR reads all linear, stacked, and 2D barcodes, making it versatile for various document processing workflows. This barcode scanning capability is integrated into the device alongside its primary document imaging function, allowing you to capture both document images and barcode data in a single solution. We offer the 4850DR for organizations that need comprehensive document and barcode capture in one device.
Is the Honeywell 4850DR suitable for paperless office environments?
Yes, the 4850DR is specifically designed for paperless processing, storage, and retrieval of documents. It captures crisp images of documents up to 8.5" x 11" or A4 format with built-in image enhancement tools that sharpen text, improve contrast, and auto-crop images for optimal quality. The device includes file configuration and compression functions to ensure efficient storage, making it ideal for organizations transitioning to digital document management. Contact us today to discuss how the 4850DR can support your paperless initiative.
What are the connectivity options for the Honeywell 4850DR?
The 4850DR connects via USB 2.0 with serial port emulation, and supports TWAIN and SANE interfaces for direct integration with your host system. These connectivity options eliminate the need for costly adapters or system modifications, allowing for straightforward deployment in your existing IT infrastructure. Visit barcodesinc.com to explore integration options with your current systems.
Does the Honeywell 4850DR require regular maintenance?
No, the 4850DR features 100% solid-state technology with no moving parts, eliminating the need for routine maintenance or calibration. The integrated stand design and document tray platform enable easy setup and operation without continual adjustments, ensuring years of uninterrupted, trouble-free operation. This maintenance-free design is backed by a superior three-year warranty available from us.
What is the scanning speed and image quality of the 4850DR?
The 4850DR delivers a minimum scanning speed of 17 ppm for 8.5" x 11" documents (A4) with image processing, and captures images at 200 ppi resolution. The device is powered by Adaptus® Imaging Technology 5.0, which provides integrated image enhancement tools including text sharpening, contrast improvement, orientation correction, and magnification. Multiple image format options (JPEG, BMP, TIFF) with configurable compression ensure optimal quality and file size for your specific application requirements.
What environmental conditions can the Honeywell 4850DR withstand?
The 4850DR operates reliably in temperatures from 0°C to 50°C (32°F to 122°F) with humidity levels between 5% to 95% relative humidity, non-condensing. The device has an IP40 environmental sealing rating and can withstand 50 drops from 1.5 meters (5 feet), plus ESD protection up to ±8 KV direct and ±15 KV air. This durability makes it suitable for demanding warehouse and logistics environments. Contact us today to ensure the 4850DR meets your specific operational requirements.
