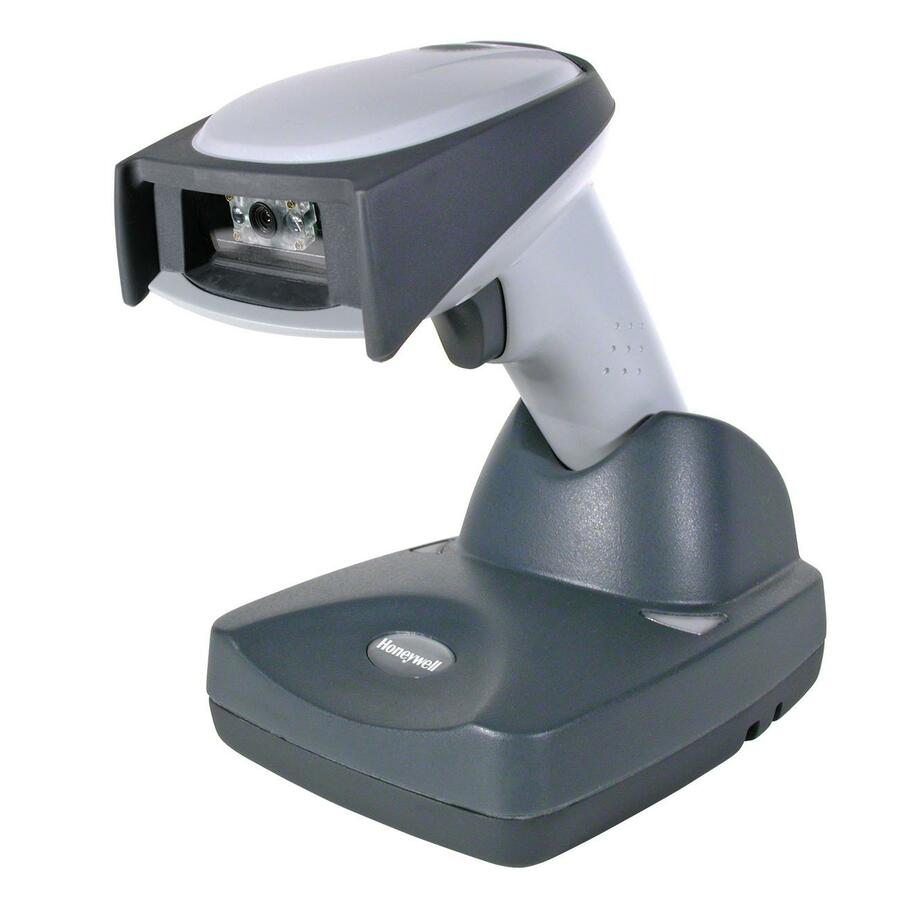

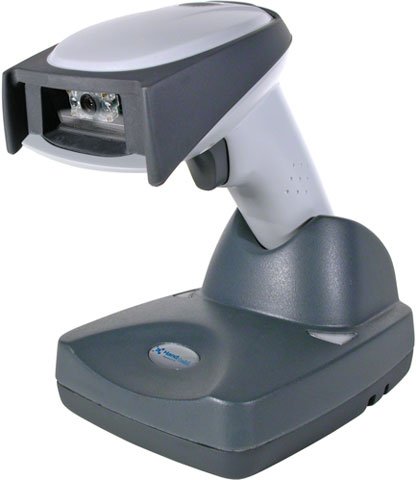

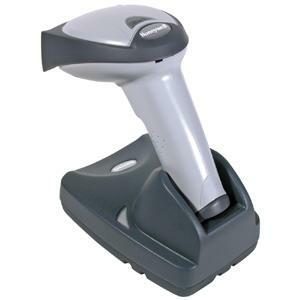

Honeywell 4820 – Barcode Scanner – Cordless – 1D

Part Number: 4820SR0C1CB-0IA0E
Model: 4820
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Cordless
Interface Options
PS/2 Keyboard Wedge
Scanner Capability
1D

Product Description:

  Keyboard wedge kit: Standard ruggedness. Includes 4820 SR scanner, cordless base (2020-5BE), Wedge cable (42206132-02S), US power supply and power cord (77900506) and system manual. RoHS Compliant.
Explore all Honeywell 4820 Barcode Scanners
Add to Quote
Honeywell 4820SR0C1CB-0IA0E Barcode Scanner
Honeywell 4820SR0C1CB-0IA0E Barcode Scanner
Honeywell 4820SR0C1CB-0IA0E Barcode Scanner
Honeywell 4820SR0C1CB-0IA0E Barcode Scanner
Honeywell 4820SR0C1CB-0IA0E Barcode Scanner Honeywell 4820SR0C1CB-0IA0E Barcode Scanner Honeywell 4820SR0C1CB-0IA0E Barcode Scanner Honeywell 4820SR0C1CB-0IA0E Barcode Scanner
Full specifications (PDF)

Honeywell 4820 Barcode Scanner Model Overview

4820 2D imager from Honeywell offers an ideal solution for light industrial mobile barcode reading applications. It features Bluetooth v1.2 radio wireless communications for freedom of movement in retail, warehouse and distribution. This enables movement up to 33 feet (10m) from the base while its Adaptive Frequency Hopping (AFH) feature eliminates interference with other wireless systems. The field-replaceable lithium-ion battery enables up to 57,000 reads per full charge. The 4820's small footprint enables hands-free presentation scanning when docked in the base. The host-powered interface and RF link extends the mobile capabilities of the 4820 by drawing power from a portable device for radio and host communications.
Honeywell 4820SR0C1CB-0IA0E Barcode Scanner Overview

The 4820 SR Bar Code Reader combines exclusive Adaptus Imaging Technology 5.0 with Bluetooth wireless connectivity to provide a sleek, rugged cordless area imager for retail and commercial bar code reading.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

2 Dimensional:

  • PDF417
  • MicroPDF417
  • MaxiCode
  • Data Matrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN.UCC Composite

Linear:

  • Codabar
  • Code 39
  • Interleaved 2 of 5
  • Code 93
  • Code 128
  • UPC
  • EAN
  • RSS
  • Codablock

Postal:

  • Postnet
  • Planet Code
  • British Post
  • Canadian Post
  • Japanese Post
  • KIX (Netherlands Post)

OCR Fonts:

  • OCR-A
  • OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
6.60 mil
Scanning Distance:
32.81 ft
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
4.2 V DC
Power Source:
Battery
Power Supply Included:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Product Color:
Gray
Height:
6.2"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
9 oz
Miscellaneous
Package Contents:
  • 4820 SR Bar Code Reader
  • Cordless Base
  • NA Power Supply
  • NA Power Cord
  • Straight Keyboard Wedge Cable
  • Quick Start Guide
Additional Information:

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED Safety: Class 1
  • UL
  • cUL listed
  • TUV
  • 2005 Sunrise Compliant
  • RoHS
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 43211701
