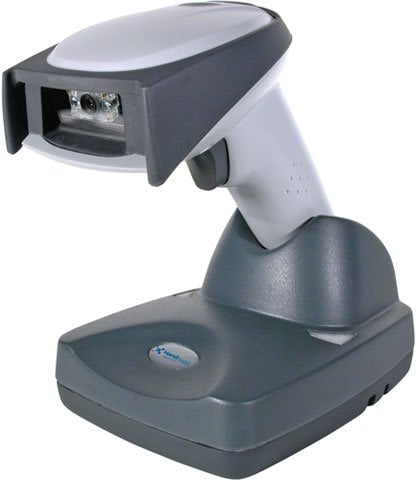

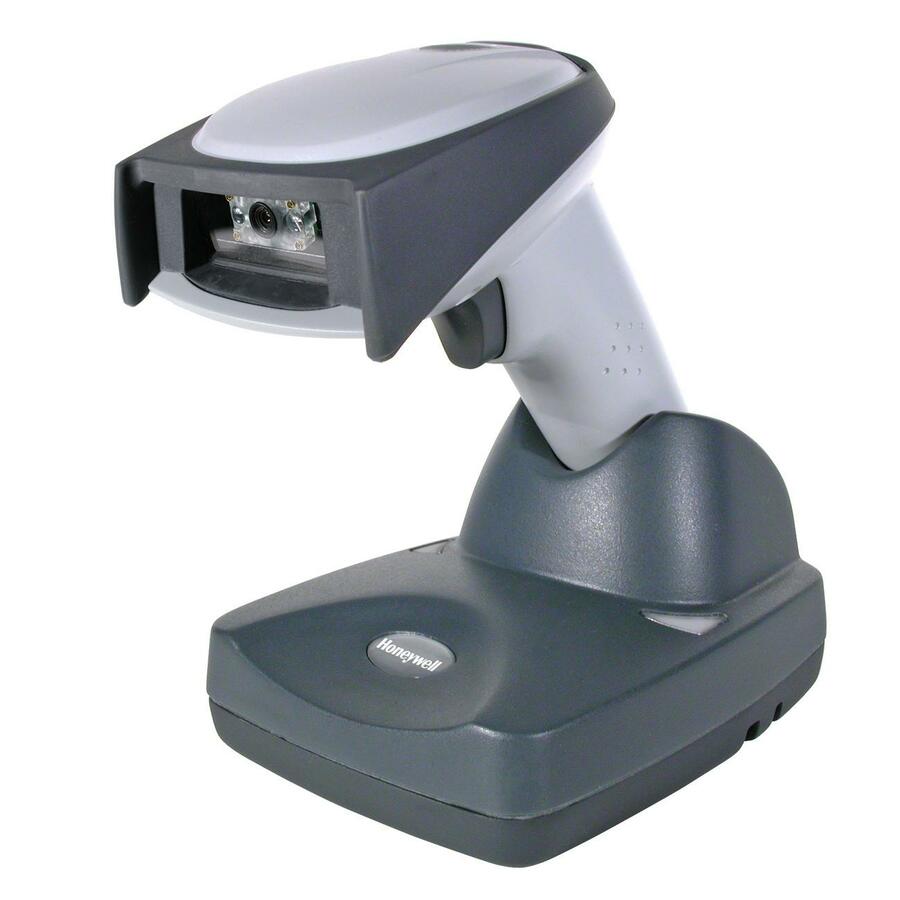

Honeywell 4820SF0C1CB-0GA0E Barcode Scanner

The Honeywell 4820SF0C1CB-0GA0E Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Honeywell 4820 - Kit: Standard ruggedness, special focus, includes Base, Power Supply, Cordless 2D Imager, and No Cable. RoHS Compliant.

Connectivity

Cordless

Scanner Capability

Scanner Type

Imager

At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
Laser-free design provides high-performance scanning without the risk of eye injury
Increases productivity by giving the opportunity to wander, without the tangle of cables
Bluetooth technology - Allows compatibility with most of your smart devices

Need a different version? See all Honeywell 4820 Barcode Scanners

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Honeywell 4820SF0C1CB-0GA0E Barcode Scanner

Overview

Full specifications (PDF)

Honeywell 4820 Barcode Scanner Model Overview

4820 2D imager from Honeywell offers an ideal solution for light industrial mobile barcode reading applications. It features Bluetooth v1.2 radio wireless communications for freedom of movement in retail, warehouse and distribution. This enables movement up to 33 feet (10m) from the base while its Adaptive Frequency Hopping (AFH) feature eliminates interference with other wireless systems. The field-replaceable lithium-ion battery enables up to 57,000 reads per full charge. The 4820's small footprint enables hands-free presentation scanning when docked in the base. The host-powered interface and RF link extends the mobile capabilities of the 4820 by drawing power from a portable device for radio and host communications.

Honeywell 4820SF0C1CB-0GA0E Barcode Scanner Overview

The 4820 SF Bar Code Reader combines exclusive Adaptus Imaging Technology 5.0 with Bluetooth wireless connectivity to provide a sleek, rugged cordless area imager for retail and commercial bar code reading.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Barcode Symbology Supported:

2 Dimensional:

PDF417
MicroPDF417
MaxiCode
Data Matrix
QR Code
Aztec
Aztec Mesas
Code 49
EAN.UCC Composite

Linear:

Codabar
Code 39
Interleaved 2 of 5
Code 93
Code 128
UPC
EAN
RSS
Codablock

Postal:

Postnet
Planet Code
British Post
Canadian Post
Japanese Post
KIX (Netherlands Post)

OCR Fonts:

OCR-A
OCR-B

Light Source:

LED

Image Sensor Type:

Imager

Maximum Scan Resolution:

6.60 mil

Scanning Distance:

32.81 ft

Network & Communication

Bluetooth:

Yes

Interfaces/Ports

Host Interface:

Multi-interface

Power Description

Input Voltage:

4.2 V DC

Power Source:

Battery

Power Supply Included:

Yes

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Physical Characteristics

Form Factor:

Handheld

Product Color:

Gray

Height:

6.2"

Width:

3.2"

Depth:

5.3"

Weight (Approximate):

9 oz

Miscellaneous

Package Contents:

4820 SF Bar Code Reader
Cordless Base
NA Power Supply
NA Power Cord
User's Guide (CD)

Additional Information:

USB Cable separate

Certifications & Standards:

FCC Class B
CE EMC Class B
CE Low Voltage Directive
IEC60825-1 LED Safety: Class 1
UL
cUL listed
TUV
2005 Sunrise Compliant
RoHS

Environmentally Friendly:

Yes

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Honeywell 4820SF0C1CB-0GA0E Barcode Scanner is also known as HHP-4820SF0C1CB0GA0E or 4820SF0C1CB0GA0E.
