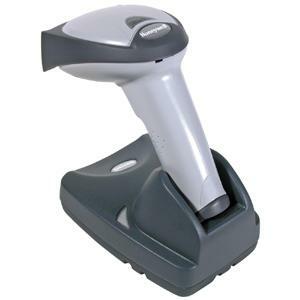

Honeywell 4820SF0C1CB-0FA0E Barcode Scanner

Honeywell 1902GSR-2USB-5 Barcode Scanner A newer version of this item is available.
It is replaced by the Honeywell 1902GSR-2USB-5 Barcode Scanner.
Honeywell 4820 - USB kit. Includes 4820 SF Scanner, cordless base (2020-5BE), USB cable (42206161-01), US power supply and power cord (77900506) and system manual. RoHS Compliant.
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Increase productivity and performance by excluding the cable
  • With Bluetooth technology, you can scan barcodes and then transmit data from the base
Read More

Need a different version? See all Honeywell 4820 Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Honeywell 4820SF0C1CB-0FA0E Barcode Scanner
Honeywell 4820SF0C1CB-0FA0E Barcode Scanner Honeywell 4820SF0C1CB-0FA0E Barcode Scanner Honeywell 4820SF0C1CB-0FA0E Barcode Scanner Honeywell 4820SF0C1CB-0FA0E Barcode Scanner
Honeywell 4820SF0C1CB-0FA0E Barcode Scanner
Honeywell 4820SF0C1CB-0FA0E Barcode Scanner
Honeywell 4820SF0C1CB-0FA0E Barcode Scanner
Honeywell 4820SF0C1CB-0FA0E Barcode Scanner
Full specifications (PDF)
Honeywell 4820 Barcode Scanner Model Overview
4820 2D imager from Honeywell offers an ideal solution for light industrial mobile barcode reading applications. It features Bluetooth v1.2 radio wireless communications for freedom of movement in retail, warehouse and distribution. This enables movement up to 33 feet (10m) from the base while its Adaptive Frequency Hopping (AFH) feature eliminates interference with other wireless systems. The field-replaceable lithium-ion battery enables up to 57,000 reads per full charge. The 4820's small footprint enables hands-free presentation scanning when docked in the base. The host-powered interface and RF link extends the mobile capabilities of the 4820 by drawing power from a portable device for radio and host communications.
Honeywell 4820SF0C1CB-0FA0E Barcode Scanner Overview

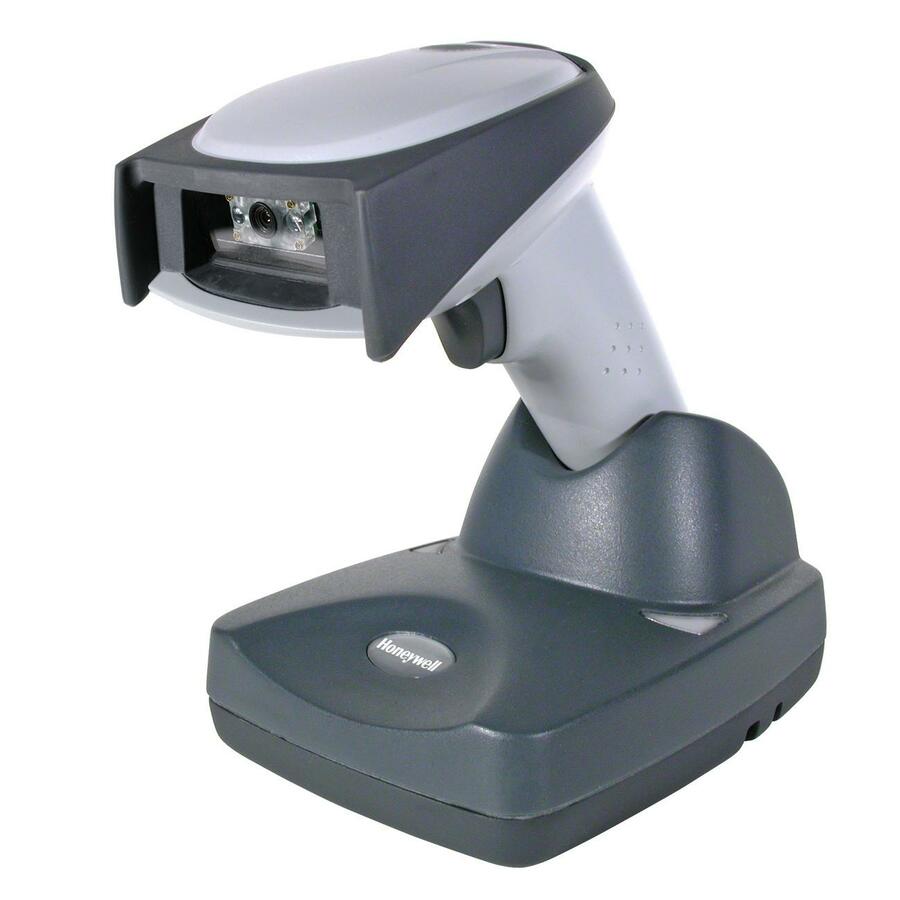

The 4820 SF Bar Code Reader combines exclusive Adaptus Imaging Technology 5.0 with Bluetooth wireless connectivity to provide a sleek, rugged cordless area imager for retail and commercial bar code reading.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

2 Dimensional:

  • PDF417
  • MicroPDF417
  • MaxiCode
  • Data Matrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN.UCC Composite

Linear:

  • Codabar
  • Code 39
  • Interleaved 2 of 5
  • Code 93
  • Code 128
  • UPC
  • EAN
  • RSS
  • Codablock

Postal:

  • Postnet
  • Planet Code
  • British Post
  • Canadian Post
  • Japanese Post
  • KIX (Netherlands Post)

OCR Fonts:

  • OCR-A
  • OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
6.60 mil
Scanning Distance:
32.81 ft
Cable Type Included:
USB
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
4.2 V DC
Power Source:
Battery
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Product Color:
Gray
Height:
6.2"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
9 oz
Miscellaneous
Package Contents:
  • 4820 SF Bar Code Reader
  • Cordless Base
  • NA Power Supply
  • NA Power Cord
  • Quick Start Guide
  • Straight USB Cable
Additional Information:

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED Safety: Class 1
  • UL
  • cUL listed
  • TUV
  • 2005 Sunrise Compliant
  • RoHS
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell 4820SF0C1CB-0FA0E Barcode Scanner is also known as HHP-4820SF0C1CB0FA0E or 4820SF0C1CB0FA0E.
