Barcodes,Inc.

Honeywell 4820ISR-USBKITAE Barcode Scanners


0.0

(No reviews)

Be the first to

Write a Review
Honeywell 4820ISR - Cordless 2D Scanner USB kit, Standard Range. Includes 2D imager scanner, cradle, USB cable, power supply, and user guide.
Features Adaptive Frequency Hopping (AFH) to eliminate interference with other wireless systems

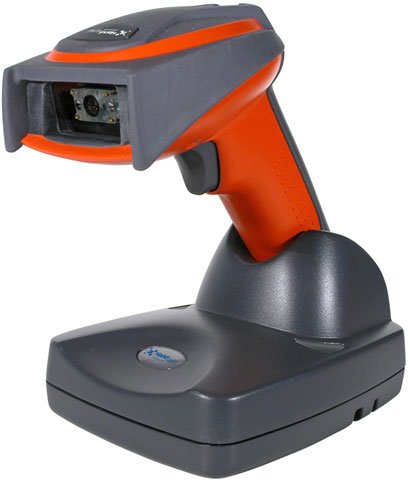

4820i 2D imager from Honeywell offers an ideal solution for industrial mobile barcode reading applications. It features a sturdy "Industrial Ruggedness" construction, Bluetooth v1.2 radio wireless communications for freedom of movement in retail, warehouse and distribution. This enables movement up to 33 feet (10m) from the base while its Adaptive Frequency Hopping (AFH) feature eliminates interference with other wireless systems. The field-replaceable lithium-ion battery enables up to 57,000 reads per full charge. The 4820i's small footprint enables hands-free presentation scanning when docked in the base. The host-powered interface and RF link extends the mobile capabilities of the 4820i by drawing power from a portable device for radio and host communications.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • RSS
    • Coda Block
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • RSS
    • Coda Block
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
  • Maximum Scan Resolution: 35 mil
  • Depth of Field:
    • 3" - 7.10"@8.30 mil - Linear
    • 1.60" - 12.70"@13 mil - UPC
    • 4" - 5.70"@6.60 mil - PDF417
    • 2.60" - 8.50"@10 mil - PDF417
    • 1.80" - 9.70"@15 mil - PDF417
    • 1.50" - 12.50"@35 mil - Maxi Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 4820i
  • Product Name: 4820i Barcode Reader

Physical Characteristics

  • Height: 6.5"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Orange
  • Weight (Approximate): 9.60 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 4820i Barcode Reader
    • Cordless Base
    • North America Power Cord
    • North America Power Supply
    • Straight USB Cable
    • User Documentation
    • 4820i Barcode Reader
    • Cordless Base
    • North America Power Cord
    • North America Power Supply
    • Straight USB Cable
    • User Documentation
  • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL
    • TÜV
    • 2005 Sunrise
    • RoHS
  • Additional Information:
    • Supported Interfaces:
    • Keyboard Wedge
    • USB
    • Serial
    • Wand Emulation
    • IBM 46XX

Power Description

  • Input Voltage: 4.2 V DC
  • Power Source: Battery

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model 4820i
Connectivity Cordless
Connection USB, Bluetooth
Form Factor Handheld
Scanner Capability 2D
Scan Pattern Area
Communication Type Bluetooth
Color Black/Red
Scanner Type Imager
Communication Range less than 33 ft
Included Cables USB
Ruggedness Rugged


Customer Review Summary

Recommended Accessories for Model: Honeywell 4820i Scanner
Hand Held Cable (42206161-01E)
USB, black, Type A, 2.6m (8.5'), straight, host power
In Stock: Ships Same Day
$17.90
+ Add to Quote
Honeywell Cable (42206202-02E)
USB, black, Type A, 2.8m (9.2'), coiled, host powered
In Stock: Ships Same Day
$22.10
+ Add to Quote
Honeywell (2020-5BE)
Compact cordless charging base for 3820, 4620, 4820 and 4820I lithium batteries. Provides host interface and RF link between imager and host. Requires power supply (part #PS-090-2000D-NA).
In Stock: Ships Same Day
$266.70
+ Add to Quote
Honeywell Cable (42203758-04E)
RS-232 TTL, Connector: D 9 Pin F connector, TX data on pin 2, external power, coiled Length: 7.7 ft. (2.3m)
In Stock: Ships Same Day
$22.10
+ Add to Quote
Honeywell Power cord (77900506E)
Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0 ft.) - US. Non-Cancelable/Non-Returnable.
In Stock: Ships Same Day
$14.80
+ Add to Quote
Protect Your Product
Honeywell Service Contract - 1 year (HSVC4820iK-W)
4820i with Base, Extended Warranty
Ships in 3-5 Days
$45.00
+ Add to Quote
Honeywell Service Contract - 5 year (HSVC4820iK-SMS5)
4820i with Base, Service Made Simple 1-day turnaround, Comprehensive coverage
Ships in 3-5 Days
$222.00
+ Add to Quote
Honeywell Service Contract - 3 year (HSVC4820iK-SMS3)
4820i with Base, Service Made Simple 1-day turnaround, Comprehensive coverage
Ships in 3-5 Days
$102.00
+ Add to Quote
Honeywell Service Contract - 1 year (E-HSVC4820I-W)
Post Sale Extended Warranty for 4820i
Ships in 3-5 Days
$54.00
+ Add to Quote

The Honeywell 4820ISR-USBKITAE is also known as HHP-4820ISR-USBKITAE or 4820ISRUSBKITAE .
