Honeywell 4820IHD-IKITAE Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review

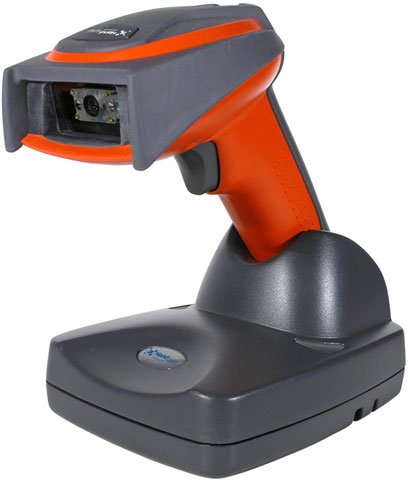

Honeywell 4820IHD - USB Bluetooth Module kit, High Density. Includes scanner, charging only cradle (PC must support Bluetooth), USB cable, spare battery, power supply, and user guide.
Features Adaptive Frequency Hopping (AFH) to eliminate interference with other wireless systems

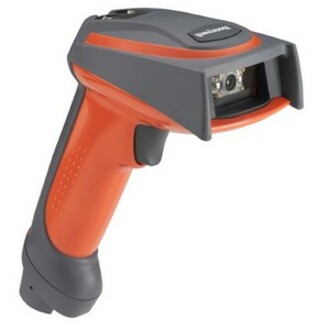

4820i 2D imager from Honeywell offers an ideal solution for industrial mobile barcode reading applications. It features a sturdy "Industrial Ruggedness" construction, Bluetooth v1.2 radio wireless communications for freedom of movement in retail, warehouse and distribution. This enables movement up to 33 feet (10m) from the base while its Adaptive Frequency Hopping (AFH) feature eliminates interference with other wireless systems. The field-replaceable lithium-ion battery enables up to 57,000 reads per full charge. The 4820i's small footprint enables hands-free presentation scanning when docked in the base. The host-powered interface and RF link extends the mobile capabilities of the 4820i by drawing power from a portable device for radio and host communications.

Technical Information

  • Barcode Dimension: 2D
  • Scan Pattern: Multi Line
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 2 Dimensional:
    • PDF417
    • MicroPDF417
    • MaxiCode
    • Data Matrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN?UCC Composite
    • Linear:
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • GS1 DataBar
    • Codablock
    • ISBT 128 Concatenation
    • Postal:
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX (Netherlands Post)
    • OCR Fonts:
    • OCR-A
    • OCR-B
    • 2 Dimensional:
    • PDF417
    • MicroPDF417
    • MaxiCode
    • Data Matrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN?UCC Composite
    • Linear:
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • GS1 DataBar
    • Codablock
    • ISBT 128 Concatenation
    • Postal:
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX (Netherlands Post)
    • OCR Fonts:
    • OCR-A
    • OCR-B

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 4280i
  • Product Name: Handheld 4820iHD Barcode Reader

Physical Characteristics

  • Height: 6.2"
  • Weight (Approximate): 9.60 oz

Other

  • Additional Information:
    • Industrial-Grade Durability
    • Versatile Data Capture
    • Bluetooth Interface Module Option
    • FIPS 140-2 Certified Encryption

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Honeywell 4820i Scanner
Hand Held Cable (42206161-01E)
USB, black, Type A, 2.6m (8.5'), straight, host power
In Stock: Ships Same Day
$17.90
+ Add to Quote
Honeywell Cable (42206202-02E)
USB, black, Type A, 2.8m (9.2'), coiled, host powered
In Stock: Ships Same Day
$22.10
+ Add to Quote
Honeywell Cable (42203758-04E)
RS-232 TTL, Connector: D 9 Pin F connector, TX data on pin 2, external power, coiled Length: 7.7ft. (2.3m)
In Stock: Ships Same Day
$22.10
+ Add to Quote
Honeywell Power cord (77900506E)
Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0 ft.) - US. Non-Cancelable/Non-Returnable.
In Stock: Ships Same Day
$14.80
+ Add to Quote
Honeywell (2020-5BE)
Compact cordless charging base for 3820, 4620, 4820 and 4820I lithium batteries. Provides host interface and RF link between imager and host. Requires power supply (part #PS-090-2000D-NA).
In Stock: Ships Same Day
$266.70
+ Add to Quote
Protect Your Product
Honeywell Service Contract - 1 year (HSVC4820iK-W)
4820i with Base, Extended Warranty
Ships in 3-5 Days
$45.00
+ Add to Quote
Honeywell Service Contract - 5 year (HSVC4820iK-SMS5)
4820i with Base, Service Made Simple 1-day turnaround, Comprehensive coverage
Ships in 3-5 Days
$222.00
+ Add to Quote
Honeywell Service Contract - 3 year (HSVC4820iK-SMS3)
4820i with Base, Service Made Simple 1-day turnaround, Comprehensive coverage
Ships in 3-5 Days
$102.00
+ Add to Quote
Honeywell Service Contract - 1 year (E-HSVC4820I-W)
Post Sale Extended Warranty for 4820i
Ships in 3-5 Days
$54.00
+ Add to Quote

The Honeywell 4820IHD-IKITAE is also known as HHP-4820IHD-IKITAE or 4820IHDIKITAE .
