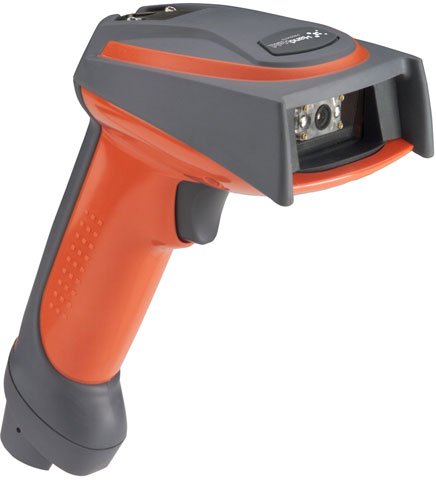

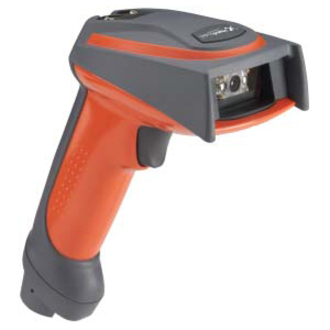

Honeywell 4800i – Barcode Scanner – Corded – 1D

Part Number: 4800ISR051C-0F00E
Model: 4800i
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D

Product Description:

  USB kit, Standard Range. Includes scanner, USB cable, and user guide.

Honeywell 4800i Barcode Scanner Model Overview

The 4800i Industrial 2D Area Imager, powered by Adaptus Imaging Technology 5.0, decodes faster, farther, and future-proofs your investment. The 4800i helps employees spend less time trying to capture data, and more time creating a productive and cost effective work environment.
Honeywell 4800ISR051C-0F00E Barcode Scanner Overview

Featuring the same advanced data collection and image capture capabilities as the 4600g, the 4800i is built specifically for the rugged environments common in warehousing, distribution, transportation/ logistics and retail applications.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN-UCC Composite
  • Codabar
  • Code 39 including PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • RSS
  • Postnet
  • Planet Code
  • British Post
  • China Postal Code
  • Canadian Post
  • Japanese Post
  • KIX(Netherlands) Post
  • OCR-A
  • OCR-B
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
35 mil
Depth of Field:
  • 3" - 7"@8.3mil - Linear
  • 1.6" - 12.7"@13mil - UPC
  • 4" - 5.7"@6.6mil - PDF417
  • 2.6" - 8.5"@10mil - PDF417
  • 1.8" - 9.7"@15mil - Data Matrix
  • 1.5" - 12.5"@35mil - Maxi Code
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Orange
Height:
6.4"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
7.50 oz
Miscellaneous
Package Contents:
  • 4800i Bar Code Reader
  • USB Straight Cable
  • User Documentation
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • Keyboard Wedge
  • IBM 4683
  • Wand Emulation
  • Platform Supported:
    PC
    Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL
    • TÜV
    • 2005 Sunrise
    • RoHS
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    GTIN: 5711045901690
    EAN: 5711045901690
    UNSPSC: 43211701
