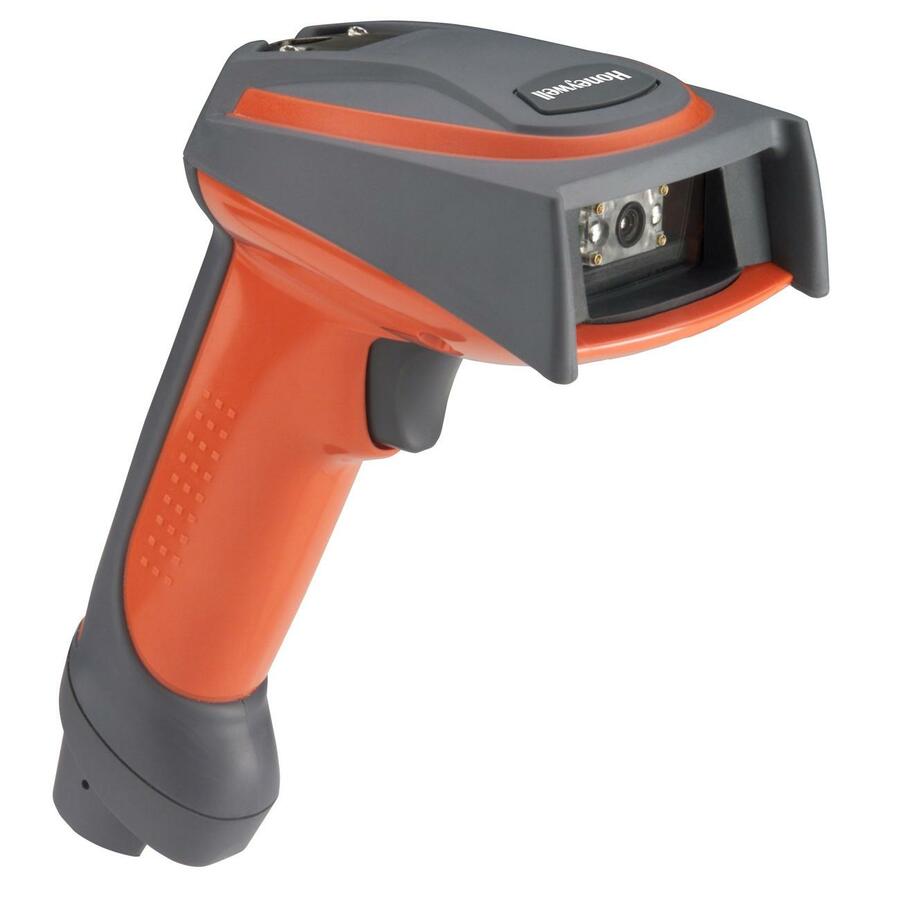

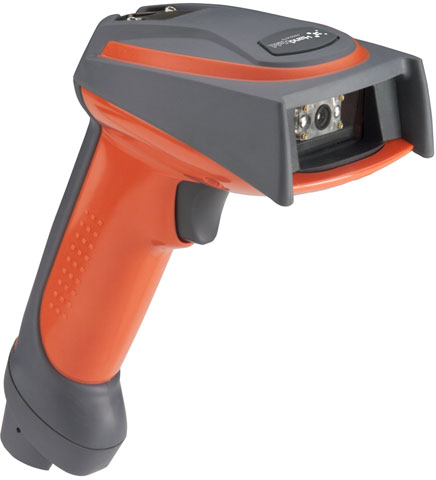

Honeywell 4800ISR051C-0A00E Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Honeywell 4800i - PS/2 kit, Standard Range. Includes scanner, PS/2 cable, and user guide.

The 4800i Industrial 2D Area Imager, powered by Adaptus Imaging Technology 5.0, decodes faster, farther, and future-proofs your investment. The 4800i helps employees spend less time trying to capture data, and more time creating a productive and cost effective work environment.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • RSS
    • ISBT 128
    • Postnet
    • Planet Code
    • British Post
    • China Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • RSS
    • ISBT 128
    • Postnet
    • Planet Code
    • British Post
    • China Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
  • Maximum Scan Resolution: 8.30 mil
  • Depth of Field:
    • 3" - 7.10"@8.30 mil - Linear
    • 1.60" - 12.70"@13 mil - UPC
    • 4" - 5.70"@6.60 mil - PDF417
    • 2.60" - 8.50"@10 mil - PDF417
    • 1.80" - 9.70"@15 mil - PDF417
    • 1.50" - 12.50"@35 mil - Maxi Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 4800i
  • Product Name: 4800i SR Barcode Reader

Physical Characteristics

  • Height: 6.4"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Orange
  • Weight (Approximate): 7.50 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 4800i SR Barcode Reader
    • Keyboard Wedge Coiled Cable
    • User Documentation
    • 4800i SR Barcode Reader
    • Keyboard Wedge Coiled Cable
    • User Documentation
  • Certifications & Standards:
    • RoHS Compliant
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL
    • TÜV
    • 2005 Sunrise Compliant
  • Additional Information:
    • Supported Interfaces:
    • Keyboard Wedge
    • Serial
    • USB
    • IBM 4683
    • Wand Emulation

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model 4800i
Connection AT/PS2 Keyboard Wedge
Scanner Capability 2D
