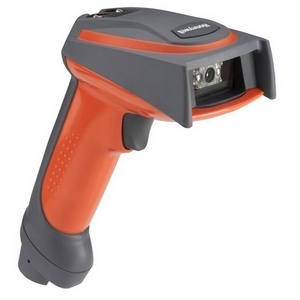

Honeywell 4800i – Barcode Scanner – 1D

Part Number: 4800ISR031CE
Model: 4800i
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Scanner Only, Standard Range (True RS-232 support). Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# 46-00525).
Explore all Honeywell 4800i Barcode Scanners
Add to Quote
Honeywell 4800ISR031CE Barcode Scanner
Honeywell 4800ISR031CE Barcode Scanner
Honeywell 4800ISR031CE Barcode Scanner
Honeywell 4800ISR031CE Barcode Scanner Honeywell 4800ISR031CE Barcode Scanner Honeywell 4800ISR031CE Barcode Scanner
Full specifications (PDF)

Honeywell 4800i Barcode Scanner Model Overview

The 4800i Industrial 2D Area Imager, powered by Adaptus Imaging Technology 5.0, decodes faster, farther, and future-proofs your investment. The 4800i helps employees spend less time trying to capture data, and more time creating a productive and cost effective work environment.
Honeywell 4800ISR031CE Barcode Scanner Overview

The 4800i Industrial 2D Area Imager, decodes faster, farther, and future-proofs your investment. This means employees spend less time trying to capture data, and more time creating a productive and cost effective work environment. Whether the requirement is reading conventional linear bar codes or 2D matrix symbologies, the 4800i can capture them all today. If the application requires signature capture, OCR, or digital photography, the 4800i can do it. The advanced imaging optics software in the 4800i quickly and easily determines the image content and transfers it to the host system.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF
  • MaxiCode
  • DataMatrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN-UCC Composite
  • Codabar
  • Code 39 including PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC/EAN/JAN
  • RSS
  • ISBT 128
  • Postnet
  • Planet Code
  • British Post
  • China Post
  • Canadian Post
  • Japanese Post
  • KIX(Netherlands) Post
  • OCR-A
  • OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
8.30 mil
Depth of Field:
  • 2" - 6"@7.5mil - Linear
  • 1.5" - 8.4"@13mil - UPC
  • 2.3" - 5.5"@6.6mil - PDF417
  • 1.7" - 7.1"@10mil - PDF417
  • 1.3" - 7"@15mil - Data Matrix
  • 1.7" - 6.7"@15mil - QR Code
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6.4"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
7.50 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • IBM 468X/469X

    • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1
    • RoHS

    LED Safety:

    • LED Safety Class 1
    • UL
    • cUL
    • TÜV
    • 2005 Sunrise
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    5 Year
