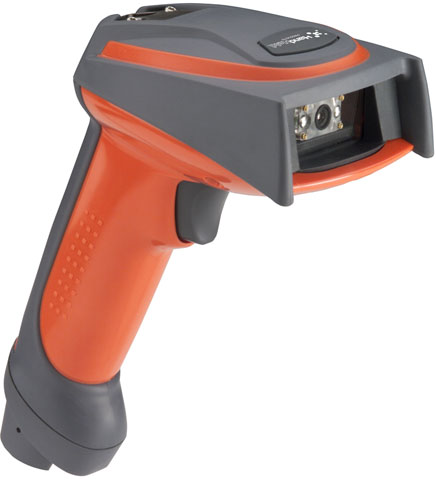

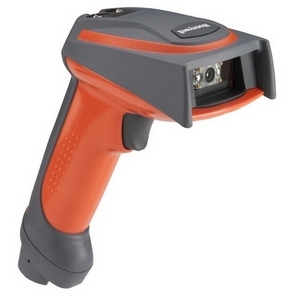

Honeywell 4800i – Barcode Scanner – 1D

Part Number: 4800ISF051C-0G00E
Model: 4800i
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  User Guide kit, Special Focus. Includes scanner (no cables) and user guide. Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# 46-00525).
Explore all Honeywell 4800i Barcode Scanners
Add to Quote
Honeywell 4800ISF051C-0G00E Barcode Scanner
Honeywell 4800ISF051C-0G00E Barcode Scanner
Honeywell 4800ISF051C-0G00E Barcode Scanner
Honeywell 4800ISF051C-0G00E Barcode Scanner Honeywell 4800ISF051C-0G00E Barcode Scanner Honeywell 4800ISF051C-0G00E Barcode Scanner
Full specifications (PDF)

Honeywell 4800i Barcode Scanner Model Overview

The 4800i Industrial 2D Area Imager, powered by Adaptus Imaging Technology 5.0, decodes faster, farther, and future-proofs your investment. The 4800i helps employees spend less time trying to capture data, and more time creating a productive and cost effective work environment.
Honeywell 4800ISF051C-0G00E Barcode Scanner Overview

Featuring the same advanced data collection and image capture capabilities as the 4600g, the 4800iSF is built specifically for the rugged environments common in warehousing, distribution, transportation/ logistics and retail applications.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN-UCC Composite
  • Codabar
  • Code 39 including PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • RSS
  • ISBT 128
  • Postnet
  • Planet Code
  • British Post
  • China Post
  • Canadian Post
  • Japanese Post
  • KIX(Netherlands) Post
  • OCR-A
  • OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
7.50 mil
Depth of Field:
  • 2" - 6"@7.5mil - Linear
  • 1.5" - 8.4"@13mil - UPC
  • 2.3" - 5.5"@6.6mil - PDF417
  • 1.7" - 7.1"@10mil - PDF417
  • 1.3" - 7"@15mil - Data Matrix
  • 1.7" - 6.7"@15mil - QR Code
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Orange
Height:
6.4"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
7.50 oz
Miscellaneous
Package Contents:
  • 4800i SF Bar Code Reader
  • User Documentation
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • USB
  • IBM 4683
  • Wand Emulation

    • Certifications & Standards:
    • RoHS Compliant
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL
    • TÜV
    • 2005 Sunrise Compliant
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701
