Honeywell 4800dr – Barcode Scanner – 1D

Part Number: 4800DR153C-0F00E
Model: 4800dr
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Handheld
Scanner Capability
1D

Product Description:

  USB kit, Barcode and Imaging version. Includes scanner, integrated stand, USB cable, and user guide.
Explore all Honeywell 4800dr Barcode Scanners
Add to Quote

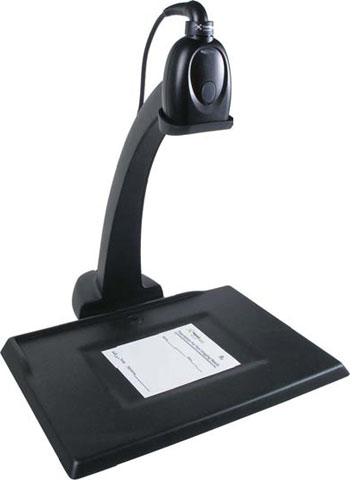

Honeywell 4800DR153C-0F00E Barcode Scanner
Honeywell 4800DR153C-0F00E Barcode Scanner
Honeywell 4800DR153C-0F00E Barcode Scanner Honeywell 4800DR153C-0F00E Barcode Scanner
Full specifications (PDF)

Honeywell 4800dr Barcode Scanner Model Overview

4800dr Imaging and Mobility, Premiered its 4800dr Document Reader, Designed to digitize hard-copy documents for paperless processing, Storage, And retrieval. An alternative to page scanners, the 4800dr is optimized for applications that require documents to be imaged at the point of entering a workflow
Honeywell 4800DR153C-0F00E Barcode Scanner Overview

The 4800dr is a full featured document imager designed to digitize paper documents for simple and efficient paperless processing, storage, and retrieval. Featuring 100% solid-state technology, there are no moving parts that can fail or require routine maintenance - ensuring years of uninterrupted, trouble-free operation.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
2D
Barcode Symbology Supported:

Linear Codes:

  • ABC Codabar (American Blood Commission)
  • BC412
  • China Post
  • Codabar
  • Code 11
  • Code 128
  • Code 32 Pharmaceutical (PARAF)
  • Code 39
  • Code 93 and 93i
  • EAN-13 (including Bookland EAN)
  • EAN-13 with Add-On
  • EAN-13 with Extended Coupon Code
  • EAN-8
  • EAN-8 with Add-On
  • GS1 Databar Expanded
  • GS1 Databar Limited
  • GS1 DataBar Omnidirectional
  • GS1 Databar Truncated
  • GS1-128
  • Interleaved 2 of 5
  • ISBT 128
  • ITF-14
  • Label Code
  • Matrix 2 of 5
  • MSI-Plessey
  • UK Plessey Code
  • PosiCode
  • Straight 2 of 5 IATA
  • Straight 2 of 5 Industrial
  • Telepen
  • Trioptic Code
  • UPC-A
  • UPC-A with Add-On
  • UPC-A with Extended Coupon Code
  • UPC-E
  • UPC-E with Add-On
  • UPC-E1 (obsolete)

Stacked Codes:

  • Codablock F
  • Code 16K
  • Code 49
  • GS1 Composite
  • GS1 Databar Expanded Stacked
  • GS1 Databar Stacked
  • GS1 Databar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
  • TCIF Linked Code 39 (TLC39)

Matrix Codes:

  • Aztec Code
  • Aztec Mesas
  • Chinese Sensible Code (Han Xin Code)
  • Data Matrix
  • Grid Matrix Code
  • MaxiCode
  • QR Code and Micro QR Code

Postal Codes:

  • Australian Post
  • British Post
  • Canadian Post
  • ID-tag (UPU 4-State)
  • Intelligent Mail Barcode
  • Japanese Post
  • Netherlands (KIX) Post
  • Korea Post
  • Planet Code
  • Postnet

OCR Codes:

  • OCR MICR (E 13 B)
  • OCR SEMI Font
  • OCR US Money Font
  • OCR-A
  • OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Height:
15.2"
Width:
14.1"
Depth:
13.4"
Weight (Approximate):
4.40 lb
Miscellaneous
Additional Information:
  • Purpose-Built for Document Imaging
  • Versatile Document Imaging Performance
  • Barcode Scanning Functionality
  • Broad Connectivity Options
  • Integrated Image Enhancement & Processing Tools

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell 4800DR153C-0F00E Barcode Scanner is also known as HHP-4800DR15C0F00E or 4800DR153C0F00E.
