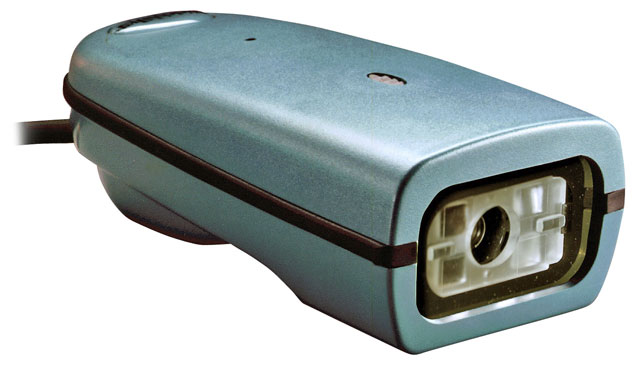

Honeywell 4710LX-121 Barcode Scanner

The Honeywell 4710LX-121 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell ImageTeam 4710 - Image Reader; High Density
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued Need Assistance?
Add to Quote
Honeywell ImageTeam 4710 Barcode Scanner Model Overview
The ImageTeam 4710 Image Reader can be configured as either a handheld or fixed mount device which reads matrix, stacked linear and conventional linear barcodes, as well as a single line of OCR-A and OCR-B text. The ImageTeam 4710 has the power to capture and download images to a PC for applications that include signature capture, PC-based decoding, and image lift requirements as well.
Honeywell 4710LX-121 Barcode Scanner Overview

The HHP IT4710 HD Image Bar Code Reader can be configured as either a hand held or fixed mount device that reads matrix, stacked linear and conventional linear bar codes, as well as a single line of OCR-A and OCR-B fonts. Multi-line OCR applications can also be read. The IT4710HD has the power to capture and download images to a PC for applications that include signature capture, PC-based decoding, and image lift requirements. The IT4710HD scanner can be used in retail, transportation, packaging, printed circuit board manufacturing, electronic component manufacturing, and clinical/ diagnostic applications that include test tube and reagent package labels.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • MaxiCode
  • PDF 417
  • Micro PDF-417
  • Aztec
  • Aztec Mesa
  • DataMatrix
  • QR Code
  • Code 49
  • UCC Composite
  • Code 39
  • Code 128
  • Codabar
  • UPC
  • EAN
  • RSS
  • Code 93
  • Coda Block
  • Postnet
  • BPO4 State
  • Canadian 4 State
  • Japanese Post
  • KIX (Dutch Post)
  • Planet Code
  • OCR-A
  • OCR-B
Image Sensor Type:
Imager
Maximum Scan Resolution:
10 mil
Depth of Field:
  • 2" - 3.5"
  • 1.7" - 2.45"@6.6mil - QR Code
  • 1.7" - 2.45"@6.6mil - Data Matrix
  • 1.6" - 2.7"@4mil - Linear
Scan Pattern:
Omni-directional
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
In-counter
Height:
1.9"
Width:
2.5"
Depth:
4.9"
Weight (Approximate):
5.50 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell 4710LX-121 Barcode Scanner is also known as HHP-4710LX-121
