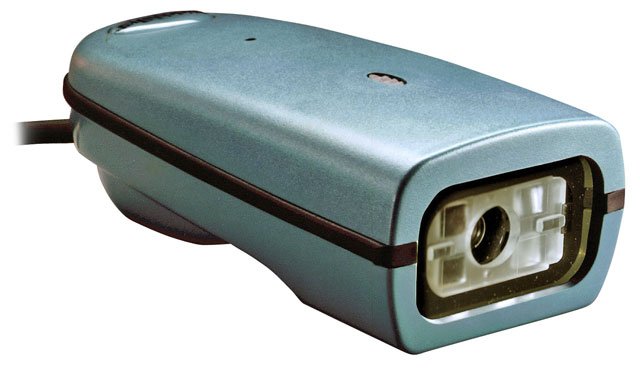

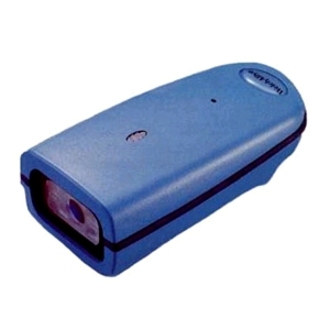

Honeywell ImageTeam 4710 – Barcode Scanner – 1D

Part Number: 4710LR-131CK

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Imager

Product Description:

  2D fixed mount long range RS-232 kit: Scanner, RS-232 cable & power supply.

Honeywell ImageTeam 4710 Barcode Scanner Model Overview

The ImageTeam 4710 Image Reader can be configured as either a handheld or fixed mount device which reads matrix, stacked linear and conventional linear barcodes, as well as a single line of OCR-A and OCR-B text. The ImageTeam 4710 has the power to capture and download images to a PC for applications that include signature capture, PC-based decoding, and image lift requirements as well.
Honeywell 4710LR-131CK Barcode Scanner Overview

The Hand Held Products IMAGETEAM 4710LR Bar Code Reader can be configured as either a handheld or fixed mount device that reads matrix, stacked linear, and conventional linear bar codes, as well as a single line of OCR-A and OCR-B fonts. Multi-line OCR applications can also be read. The IT4710 has the power to capture and download images to a PC for applications, such as signature capture, PC-based decoding, and image lift requirements.The IT4710 Reader can be used in retail, packaging, transportation, printed circuit board manufacturing, electronic component manufacturing, and clinical/diagnostic applications that include test tube and reagent package labels.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Code 39
  • Code 128
  • Codabar
  • UPC
  • EAN
  • RSS
  • Code 93
  • Coda Block
  • PDF 417
  • DataMatrix
  • OCR
Image Sensor Type:
Imager
Depth of Field:
  • 3" - 4.3"@5mil - Linear
  • 2" - 5.8"@15mil - Data Matrix
  • 2.4" - 7.7"@10mil - PDF417
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Serial
Power Description
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
In-counter
Height:
1.9"
Width:
2.5"
Depth:
4.9"
Weight (Approximate):
5.50 oz
Miscellaneous
Package Contents:
  • IMAGETEAM 4710LR Bar Code Reader
  • Power supply
  • Interface cable
Additional Information:

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE EMC 89/336/EEC
  • CE LVD 73/23/EEC
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Computer Accessories (1)
  • Mobile Computer Accessories (1)
  • Scanner Accessories (5)
  • Spare Parts (1)

Recommended Accessories for Model: Honeywell 4710LR-131CK Barcode Scanner

Top Computer Accessories Purchased With Honeywell 4710LR-131CK

Top Mobile Computer Accessories Purchased With Honeywell 4710LR-131CK

  • Honeywell PS-050-2000D-EU Spare Parts
    Honeywell PS-050-2000D-EU Spare Parts
    Euro power supply, 5 volt, 2.4 amp 4 pin barrel connector, power cord 77900508E. RoHS Compliant. For Honeywell 2010/IT4410/4710. Replaces (Part# PS5U-12E).
    Please Call for Pricing or to Purchase

Top Scanner Accessories Purchased With Honeywell 4710LR-131CK

  • Honeywell PS-050-2400D-NA Accessory
    Honeywell PS-050-2400D-NA Accessory
    US Power Supply (5 volt, 2.4 amp barrel connector, 100-250V with Cord-NA) for the QC980, 4410 and 4710. RoHS Compliant. Replaces (Part# PS5U-11E). Non-Cancelable/Non-Returnable.
    Please Call for Pricing or to Purchase
  • Honeywell 42206226-01 Accessory
    Honeywell 42206226-01 Accessory
    Keyboard wedge cable - external power supply/AC adapter required
    Please Call for Pricing or to Purchase
  • Honeywell 42205626-03 Accessory
    Honeywell 42205626-03 Accessory
    True RS-232 cable, 9-pin D female - external power supply/AC adapter required
    Please Call for Pricing or to Purchase
See All Scanner Accessories for Honeywell 4710LR-131CK Barcode Scanner >

Top Spare Parts Purchased With Honeywell 4710LR-131CK

  • Honeywell PS-050-2000D-EU Spare Parts
    Honeywell PS-050-2000D-EU Spare Parts
    Euro power supply, 5 volt, 2.4 amp 4 pin barrel connector, power cord 77900508E. RoHS Compliant. For Honeywell 2010/IT4410/4710. Replaces (Part# PS5U-12E).
    Please Call for Pricing or to Purchase
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell 4710LR-131CK Barcode Scanner is also known as HHP-4710LR-131CK or 4710LR131CK.
