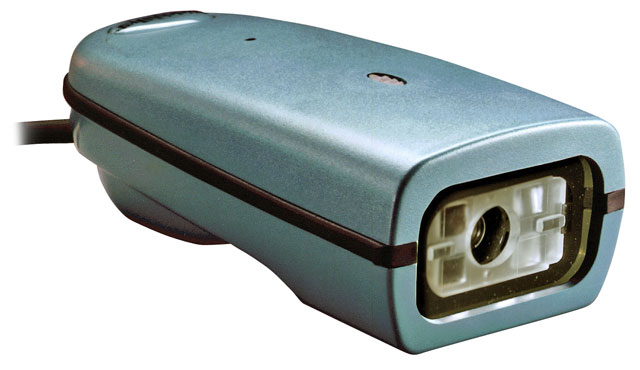

Honeywell 4710LR-131 Barcode Scanner

Honeywell ImageTeam 4710 - Fixed mount 2D long range imager, visible red scanner with True RS-232 interface
Connects to all popular PCs and portable data terminals.

The ImageTeam 4710 Image Reader can be configured as either a handheld or fixed mount device which reads matrix, stacked linear and conventional linear barcodes, as well as a single line of OCR-A and OCR-B text. The ImageTeam 4710 has the power to capture and download images to a PC for applications that include signature capture, PC-based decoding, and image lift requirements as well.

Technical Information

  • Form Factor:
    • Handheld Scanner
    • Fixed Mount Scanner
  • Barcode Dimension: 1D/2D
  • Symbologies Supported:
    • MaxiCode
    • PDF 417
    • Micro PDF-417
    • Aztec
    • Aztec Mesa
    • DataMatrix
    • QR Code
    • Code 49
    • UCC Composite
    • Code 39
    • Code 128
    • Codabar
    • UPC
    • EAN
    • Interleaved 2 of 5
    • RSS
    • Code 93
    • Coda Block
    • Postnet
    • BPO4 State
    • Canadian 4 State
    • Japanese Post
    • Kix
    • Planet Code
    • OCR-A
    • OCR-B
  • Scanner Type: Imager
  • Interface Options: RS-232
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage Range: 4 to 9 V DC
  • Depth of Field:
    • 1.9 - 8.7" - 12 pt OCR
    • 3 - 4.3"@5mils - Linear
    • 1.9 - 9.4"@13mils - Linear
    • 2 - 5.8"@15mils - Data Matrix
    • 2.7 - 5.2"@6.6mils - PDF
    • 2.4 - 7.7"@10mils - PDF

General Information

  • Manufacturer: Hand Held Products
  • Product Line: IMAGETEAM
  • Product Name: IMAGETEAM 4710LR Barcode Scanner

Physical Characteristics

  • Dimensions: 1.85" (46.99mm) x 2.5" (63.5mm) x 4.85" (123.19mm)
  • Weight: 5.5 oz - w/o cord

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 95% Non-condensing

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC 89/336/EEC
    • CE LVD 73/23/EEC

Warranty

  • Manufacturer Warranty: 3 Year(s)

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model ImageTeam 4710
Scan Pattern Area
Scanner Capability 2D
Scanner Type Imager


The Honeywell 4710LR-131 is also known as HHP-4710LR-131 or 4710LR131 .
