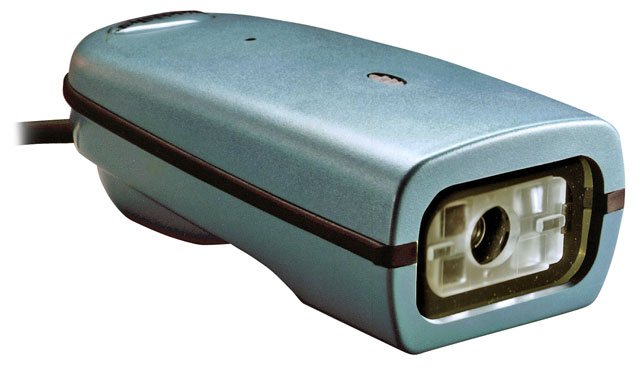

Honeywell 4710HD-131CK Barcode Scanner

The Honeywell 4710HD-131CK Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell ImageTeam 4710 - 2D fixed mount high density RS-232 kit: Scanner, RS-232 cable & power supply.
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More

Need a different version? See all Honeywell ImageTeam 4710 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Honeywell 4710HD-131CK Barcode Scanner
Honeywell 4710HD-131CK Barcode Scanner
Honeywell 4710HD-131CK Barcode Scanner
Full specifications (PDF)
Honeywell ImageTeam 4710 Barcode Scanner Model Overview
The ImageTeam 4710 Image Reader can be configured as either a handheld or fixed mount device which reads matrix, stacked linear and conventional linear barcodes, as well as a single line of OCR-A and OCR-B text. The ImageTeam 4710 has the power to capture and download images to a PC for applications that include signature capture, PC-based decoding, and image lift requirements as well.
Honeywell 4710HD-131CK Barcode Scanner Overview

The Hand Held ProductsIMAGETEAM 4710 HD (High density) Bar Code Reader can be configured as either a handheld or fixed mount device that reads matrix, stacked linear, and conventional linear bar codes, as well as a single line of OCR-A and OCR-B fonts. Multi-line OCR applications can also be read. The IT4710 HD has the power to capture and download images to a PC for applications, such as signature capture, PC-based decoding, and image lift requirements.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Code 39
  • Code 128
  • Codabar
  • UPC
  • EAN
  • RSS
  • Code 93
  • Coda Block
  • PDF 417
  • DataMatrix
  • Interleaved 2 of 5
  • OCR-A
  • OCR-B
  • MaxiCode
  • Micro PDF417
  • Aztec Mesa
  • Aztec
  • QR Code
  • Code 49
  • UCC Composite
  • Postnet
  • BPO4 State
  • Canadian 4 State
  • Japanese Post
  • Kix
Image Sensor Type:
Imager
Depth of Field:
  • 1.7" - 2.45"@6.6mil - QR Code
  • 1.7" - 2.45"@6.6mil - Data Matrix
  • 1.6" - 2.7"@4mil - Linear
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
9 V DC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
In-counter
Height:
1.9"
Width:
2.5"
Depth:
4.9"
Weight (Approximate):
5.50 oz
Miscellaneous
Package Contents:
  • IMAGETEAM 4710 HD Bar Code Reader
  • Cable
  • Power Supply
Additional Information:

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE
  • EMC 89/336/EEC
  • LVD 73/23/EEC
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell 4710HD-131CK Barcode Scanner is also known as HHP-4710HD-131CK or 4710HD131CK.
