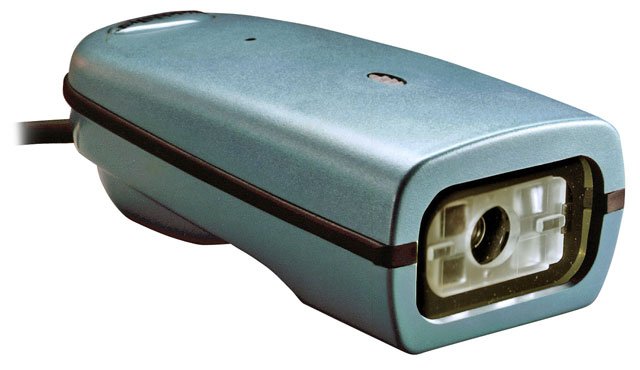

Honeywell 4710HD-121 Barcode Scanner

The Honeywell 4710HD-121 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell ImageTeam 4710 - 2D Fixed Imager, Decoded. Requires Cable, Power Supply, Manual.
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Allows productive and precise reading of 1D barcodes
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Laser-free design provides high-performance scanning without the risk of eye injury
Read More
Discontinued Need Assistance?
Add to Quote
Honeywell ImageTeam 4710 Barcode Scanner Model Overview
The ImageTeam 4710 Image Reader can be configured as either a handheld or fixed mount device which reads matrix, stacked linear and conventional linear barcodes, as well as a single line of OCR-A and OCR-B text. The ImageTeam 4710 has the power to capture and download images to a PC for applications that include signature capture, PC-based decoding, and image lift requirements as well.
Honeywell 4710HD-121 Barcode Scanner Overview

The Hand Held Products IMAGETEAM 4710HD Bar Code Reader can be configured as either a handheld or fixed mount device that reads matrix, stacked linear, and conventional linear bar codes, as well as a single line of OCR-A and OCR-B fonts. Multi-line OCR applications can also be read. The IT4710 has the power to capture and download images to a PC for applications, such as signature capture, PC-based decoding, and image lift requirements.The IT4710 Reader can be used in retail, packaging, transportation, printed circuit board manufacturing, electronic component manufacturing, and clinical/diagnostic applications that include test tube and reagent package labels. It has High Density.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • MaxiCode
  • PDF 417
  • Micro PDF-417
  • Aztec
  • Aztec Mesa
  • DataMatrix
  • QR Code
  • Code 49
  • UCC Composite
  • Code 39
  • Code 128
  • Codabar
  • UPC
  • EAN
  • Interleaved 2 of 5
  • RSS
  • Code 93
  • Coda Block
  • Postnet
  • BPO4 State
  • Canadian 4 State
  • Japanese Post
  • Kix
  • Planet Code
  • OCR-A
  • OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
10 mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
9 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
1.9"
Width:
2.5"
Depth:
4.9"
Weight (Approximate):
5.50 oz
Miscellaneous
Additional Information:

Decoded Output Interface

Platform Supported:
PC
Certifications & Standards:
  • FCC Class B
  • CE EMC 89/336/EEC
  • CE LVD 73/23/EEC
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell 4710HD-121 Barcode Scanner is also known as 4710HD121
