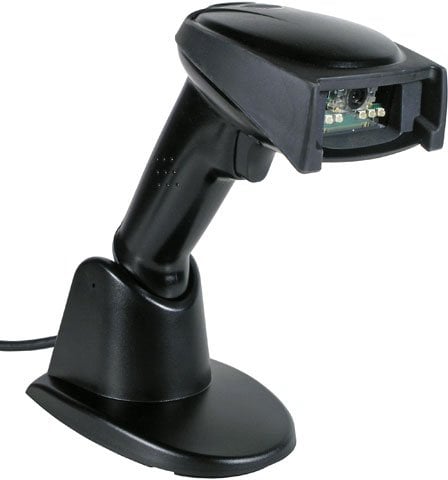

Honeywell 4600r – Barcode Scanner – 1D

Part Number: 4600RSF051C-0F00
Model: 4600r

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Imager

Product Description:

  Retail 2D Imager (USB Kit, Imager, 4600SF051C, Straight USB Cable and Users Guide)

Honeywell 4600r Barcode Scanner Model Overview

The Honeywell 4600r provides high-performance presentation scanning of linear barcodes, making it ideal for fast-paced POS scanning applications. In addition, its ability to read all 2D barcodes, plus capture digital images, enables new applications that increase productivity - all with one device. The 4600r's unique Streaming Presentation Mode feature, combined with its omni-directional reading capability, eliminates the need for operators to stop and hold an item in front of the scanner - simply swipe and go. In addition, the 4600r features an advanced illumination system optimized for high performance applications that require presentation or "fly-by" scanning and the reading of highly reflective items.
Honeywell 4600RSF051C-0F00 Barcode Scanner Overview

Designed specifically for retail point of sale (POS) applications, the 4600rSF is optimized to deliver POS presentation scanning, with the value-add functionality only possible with a 2D imager. High-performance "fly-by" scanning capability speeds-up processing items at check-out. Populate e-forms and verify identification with one simple scan, eliminating keyed-in data and paper forms.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN-UCC Composite
  • Codabar
  • Code 39
  • Interleaved 2 of 5
  • Code 93
  • Code 128
  • UPC
  • EAN
  • RSS
  • Codablock F
  • Postnet
  • Planet Code
  • British Post
  • Canadian Post
  • Japanese Post
  • KIX(Netherlands) Post
  • OCR-A
  • OCR-B
Image Sensor Type:
Imager
Depth of Field:
  • 3.6" - 4.2"@5mil - Linear
  • 2.2" - 7.6"@10mil - Linear
  • 2" - 8.8"@13mil - UPC
  • 2.8" - 5.9"@6.6mil - PDF417
  • 2.2" - 7.5"@10mil - PDF417
  • 1.8" - 7.4"@15mil - Data Matrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Gray
Height:
6.2"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Package Contents:
  • 4600rSF Handdheld Bar Code Reader
  • USB Straight Cable
  • User Documentation
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • Keyboard Wedge
  • IBM 4683

USB Cable separate

Certifications & Standards:
  • FCC Part 15 Class A
  • Canada: ICES-003 Class A
  • Mexico: NOM-NYCE
  • AUS/NZ: C-Tick:AS/NZ 3548

UL and cUL:

  • UL 60950-1:2003
  • CSA C22.2 No 60950-1-03

GS-Mark:

  • TUV/GS Mark approval for EN60950-1:2003
  • IEC60825-1

CE:

  • CB Scheme EN60950-1
  • IEC 60825-1
  • EN55022 Class A
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
