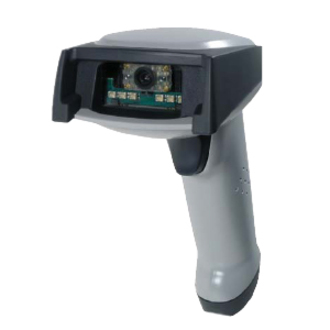

Honeywell 4600RSF051C-0A00E Barcode Scanner

Honeywell 1900GSR-2KBW Barcode Scanner A newer version of this item is available.
It is replaced by the Honeywell 1900GSR-2KBW Barcode Scanner.
Honeywell 4600r - Retail 2D Image Scanner (Keyboard Wedge Kit, Coiled Keyboard Wedge Cable and Users Guide)
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • LED aimer is a perfect choice for patient-facing applications
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued See Replacement
Add to Quote

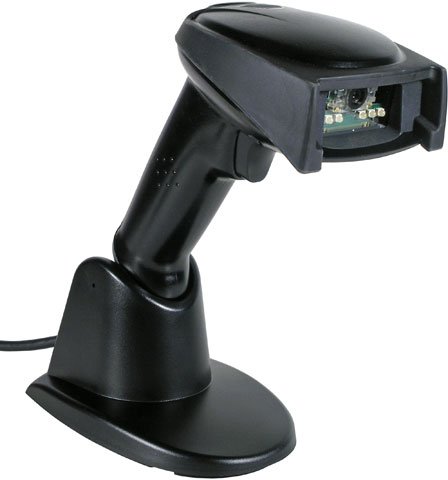

Honeywell 4600r Barcode Scanner Model Overview
The Honeywell 4600r provides high-performance presentation scanning of linear barcodes, making it ideal for fast-paced POS scanning applications. In addition, its ability to read all 2D barcodes, plus capture digital images, enables new applications that increase productivity - all with one device. The 4600r's unique Streaming Presentation Mode feature, combined with its omni-directional reading capability, eliminates the need for operators to stop and hold an item in front of the scanner - simply swipe and go. In addition, the 4600r features an advanced illumination system optimized for high performance applications that require presentation or "fly-by" scanning and the reading of highly reflective items.
Honeywell 4600RSF051C-0A00E Barcode Scanner Overview

The 4600r SF provides fast reading of linear bar codes, making it ideal for routine POS scanning applications. In addition, its ability to read all 2D bar codes, plus capture digital images, enables new applications that increase productivity, all with one device. The 4600r SF unique Streaming Presentation Mode feature, combined with its omni-directional reading capability, eliminates the need for operators to stop and hold an item in front of the scanner, simply swipe and go. In addition, the 4600r SF advanced illumination system is optimized for high performance applications that require presentation or fly-by scanning and the reading of highly reflective items.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Interleaved 2 of 5
  • Code 93
  • Code 128
  • UPC
  • EAN
  • RSS
  • Codablock F
  • Postnet
  • Planet Code
  • British Post
  • Canadian Post
  • Japanese Post
  • KIX(Netherlands) Post
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN-UCC Composite
  • OCR-A
  • OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
15 mil
Depth of Field:
  • 0.013cm@5mil - Linear
  • 0.025cm@10mil - Linear
  • 0.033cm@13mil - UPC
  • [email protected] - PDF417
  • 0.025cm@10mil - PDF417
  • 0.038cm@15mil - Data Matrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Keyboard Wedge
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Form Factor:
Desktop
Product Color:
Gray
Height:
6.2"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Package Contents:
  • 4600r SF Bar Code Reader
  • Keyboard Wedge Cable
  • User's Documentation
Additional Information:

USB Cable separate

Certifications & Standards:
  • FCC Part 15 Class A
  • ICES-003 Class A
  • CE
  • CB Scheme EN60950-1
  • IEC 60825-1
  • EN55022 Class A
  • EN55024
  • EN61000-3-2
  • EN61000-3-3 UL
  • cUL
  • UL 60950-1:2003
  • CSA C22.2 No 60950-1-03
  • GS-Mark
  • TUV/GS
  • EN60950-1:2003
  • IEC60825-1
  • NOM-NYCE
  • C-Tick
  • AS/NZ 3548
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell 4600RSF051C-0A00E Barcode Scanner is also known as HHP-4600RSF051C0A00E or 4600RSF051C0A00E.
