Barcodes,Inc.

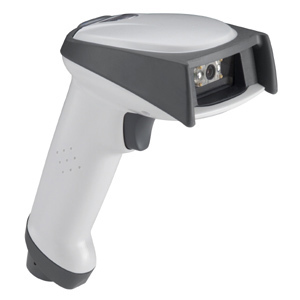

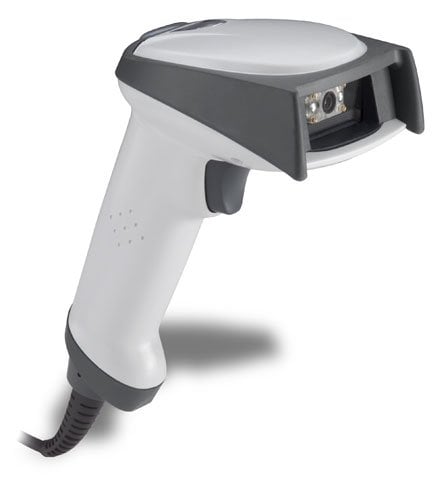

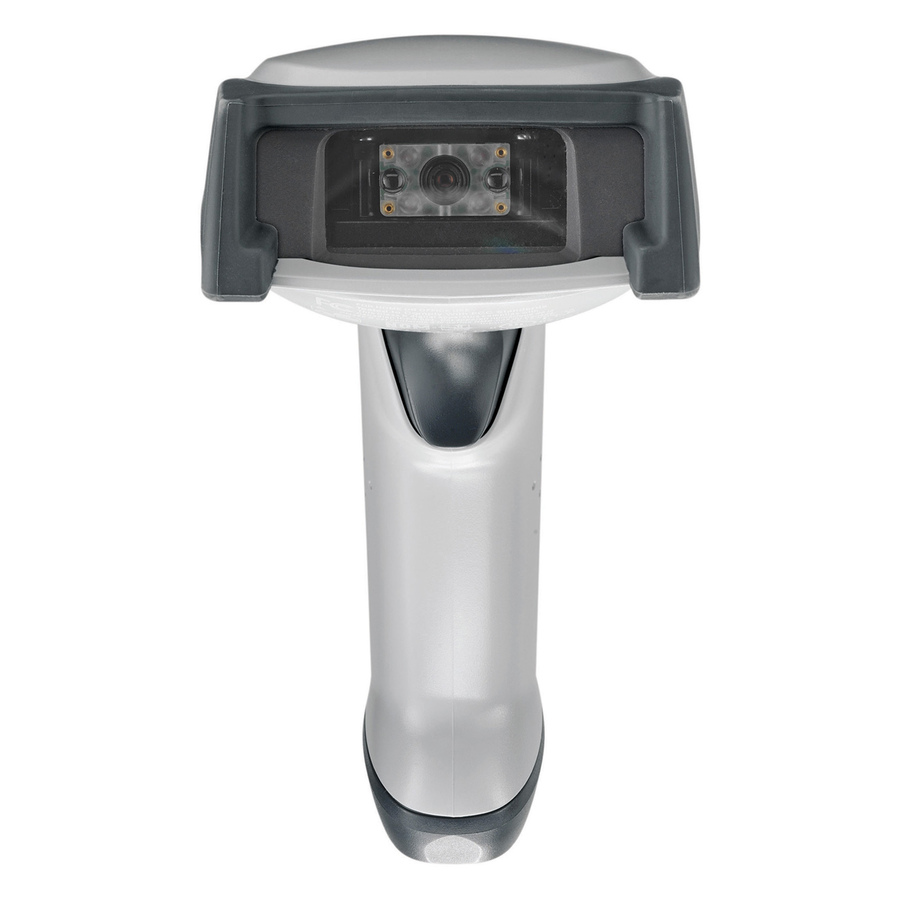

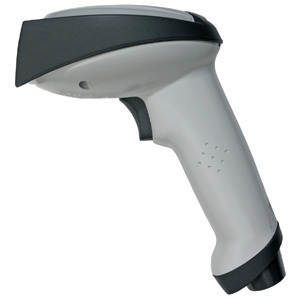

Honeywell 4600GSR051C-0A00E Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Honeywell 4600g - Keyboard wedge kit with PS/2 cable, Standard Range Area Imager and user guide. Color: Gray.
Retail/Commercial 2D Imaging

The 4600g area imager from Honeywell combines the versatility of area imaging with the speed and cost of linear scanning for demanding retail and commercial applications. Powered by Adaptus imaging, the 4600g is full featured, fast, and cost effective. Durable, with no moving parts to wear out and Honeywell backs this with a best-in-class 3 year warranty.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 2 Dimensional:
    • PDF417
    • MicroPDF417
    • MaxiCode
    • Data Matrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN UCC Composite
    • Linear:
    • Code 39
    • Code 128
    • Codabar
    • UPC
    • EAN
    • RSS
    • Code 93
    • Codablock F
    • Postal :
    • Posnet (US)
    • Planet Code
    • BPO State
    • Canadian State
    • Japanese Post
    • KIX (Netherlands) Post
    • OCR Fonts:
    • OCR-A
    • OCR-B
    • 2 Dimensional:
    • PDF417
    • MicroPDF417
    • MaxiCode
    • Data Matrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN UCC Composite
    • Linear:
    • Code 39
    • Code 128
    • Codabar
    • UPC
    • EAN
    • RSS
    • Code 93
    • Codablock F
    • Postal :
    • Posnet (US)
    • Planet Code
    • BPO State
    • Canadian State
    • Japanese Post
    • KIX (Netherlands) Post
    • OCR Fonts:
    • OCR-A
    • OCR-B
  • Maximum Scan Resolution: 35 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 4600gSR
  • Product Name: 4600gSR Barcode Reader

Physical Characteristics

  • Height: 6.2"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Gray
  • Weight (Approximate): 6.50 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • 4600gSR Barcode Reader
    • Coiled Keyboard Wedge Cable
    • User Documentation
    • 4600gSR Barcode Reader
    • Coiled Keyboard Wedge Cable
    • User Documentation
  • Certifications & Standards:
    • RoHS
    • International:
    • CB scheme to IEC60950-1
    • CB scheme to IEC60825-1 Class 1 LED
    • USA:
    • FCC Part 15 subpart B Class A. UL listed to 60950-1.
    • Canada:
    • ICES-003 Class A. cUL listed to CSA C22.2 No. 60950-1-03.
    • Europe:
    • CE 2004/108/EC EMC Directive to EN55022 Class A
    • EN55024
    • EN61000-3-2
    • EN61000-3-3. 2006/95/EC Low Voltage Directive.
    • GS Mark:
    • I.T.E. safety.
    • Australia/NZ:
    • C-Tick mark.
    • Laser Classification:
    • Laser Aimer Model only: Class 2 Laser IEC60825-1. Complies with 21 CFR 1040.10 and 1040.11 with Laser Notice No. 50. 1mW max output, 650 nM
  • Platform Supported: PC
  • Additional Information:
    • Supported Interfaces:
    • All popular PCs and terminals via keyboard wedge
    • keyboard replacement/direct connect
    • USB
    • TTL level RS-232
    • Wand Emulation (primary interface only) mode
    • TTL level Serial Wedge
    • IBM 46XX retail terminals.

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model 4600g
Connection AT/PS2 Keyboard Wedge
Scanner Capability 2D


Customer Review Summary

Recommended Accessories for Model: Honeywell 4600g Scanner
Hand Held Cable (42206161-01E)
USB, black, Type A, 2.6m (8.5'), straight, host power
In Stock: Ships Same Day
$17.90
+ Add to Quote
Honeywell Cable (42206202-02E)
USB, black, Type A, 2.8m (9.2'), coiled, host powered
In Stock: Ships Same Day
$22.10
+ Add to Quote
Honeywell Cable (42206202-03E)
USB, Host Powered, 12.1 feet, Coiled, Type A, Black.
In Stock: Ships Same Day
$57.60
+ Add to Quote
Honeywell Cable (42203758-04E)
RS-232 TTL, Connector: D 9 Pin F connector, TX data on pin 2, external power, coiled Length: 7.7 ft. (2.3m)
In Stock: Ships Same Day
$22.10
+ Add to Quote
Hand Held (UHOLDERE)
Desktop/wall mount holder for 4600, 4800i, 3800r and 3800i
In Stock: Ships Same Day
$16.10
+ Add to Quote

The Honeywell 4600GSR051C-0A00E is also known as HHP-4600GSR051C0A00E or 4600GSR051C0A00E .
