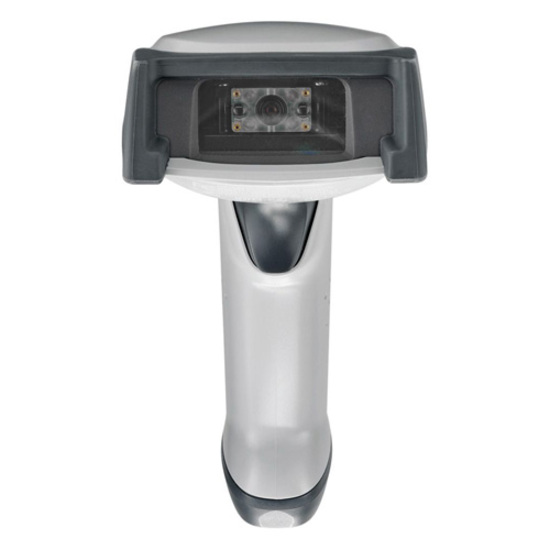

Honeywell 4600g – Barcode Scanner – 1D

Part Number: 4600GSF051C-0G00E
Model: 4600g
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Handheld
Scanner Capability
1D

Product Description:

  Special Focus Area Imager with user guide. RoHS Compliant. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# 46-00525).
Explore all Honeywell 4600g Barcode Scanners
Add to Quote
Honeywell 4600GSF051C-0G00E Barcode Scanner
Honeywell 4600GSF051C-0G00E Barcode Scanner
Honeywell 4600GSF051C-0G00E Barcode Scanner Honeywell 4600GSF051C-0G00E Barcode Scanner
Full specifications (PDF)

Honeywell 4600g Barcode Scanner Model Overview

The 4600g area imager from Honeywell combines the versatility of area imaging with the speed and cost of linear scanning for demanding retail and commercial applications. Powered by Adaptus imaging, the 4600g is full featured, fast, and cost effective. Durable, with no moving parts to wear out and Honeywell backs this with a best-in-class 3 year warranty.
Honeywell 4600GSF051C-0G00E Barcode Scanner Overview

Featuring the right blend of durability, ergonomics and connectivity options, the 4600gSF is perfect for a broad range of applications requiring the power and versatility of a 2D imager. Ideal for use in retail, pharmacy, manufacturing and postal applications.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
2D
Barcode Symbology Supported:

2 Dimensional:

  • PDF417
  • MicroPDF417
  • MaxiCode
  • Data Matrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN UCC Composite

Linear:

  • Code 39
  • Code 128
  • Codabar
  • UPC
  • EAN
  • RSS
  • Code 93
  • Codablock
  • BC 412

Postal :

  • Posnet (US)
  • Planet Code
  • BPO 4 State
  • Canadian 4 State
  • Japanese Post
  • KIX (Netherlands) Post

OCR Fonts:

  • OCR-A
  • OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
15 mil
Depth of Field:
  • 2" - 6"@7.5mil - Linear
  • 1.5" - 8.4"@13mil - UPC
  • 2.3" - 5.5"@6.6mil - PDF417
  • 1.7" - 7.1"@10mil - PDF417
  • 1.3" - 7"@15mil - Data Matrix
  • 1.7" - 6.7"@15mil - QR Code
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Height:
6.2"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
6.50 oz
Miscellaneous
Package Contents:
  • 4600gSF Handheld Bar Code Reader
  • User Documentation
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • Keyboard Wedge
  • Wand Emulation
  • IBM 4683

USB Cable separate

Platform Supported:
PC
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (18)
  • Computer Accessories (1)
  • Mounting Hardware and Stands (2)
  • Power Device (3)
  • Scanner Accessories (3)

Recommended Accessories for Model: Honeywell 4600GSF051C-0G00E Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Honeywell 4600GSF051C-0G00E

See All Cables, Connectors, and Adapters for Honeywell 4600GSF051C-0G00E Barcode Scanner >

Top Computer Accessories Purchased With Honeywell 4600GSF051C-0G00E

Top Mounting Hardware and Stands Purchased With Honeywell 4600GSF051C-0G00E

Top Power Device Purchased With Honeywell 4600GSF051C-0G00E

Top Scanner Accessories Purchased With Honeywell 4600GSF051C-0G00E

  • Honeywell HFSTAND5E Accessory
    Honeywell HFSTAND5E Accessory
    Black flex neck stand holder for 4600, 4800i, 3800r and 3800i (for hands-free and presentation scanning)
    Item on backorder — chat for lead time
    $39.40
    Add to Quote
  • Honeywell PS-050-2400D1-NA Accessory
    Honeywell PS-050-2400D1-NA Accessory
    US Power Supply (5 volt, 2.4 amp 4 pin mini-din connector) with Power Cord. RoHS Compliant. Replaces (Part# PS5U-41E).
    Item on backorder — chat for lead time
    Please Call for Pricing or to Purchase
  • Hand Held PS5U-41E Accessory
    Hand Held PS5U-41E Accessory
    US Power Supply with 5 Volt-Mini Din Ouput with Power Cord. RoHS Compliant.
    Item on backorder — chat for lead time
    Please Call for Pricing or to Purchase
The Honeywell 4600GSF051C-0G00E Barcode Scanner is also known as HHP-4600GSF051C0G00E or 4600GSF051C0G00E.
