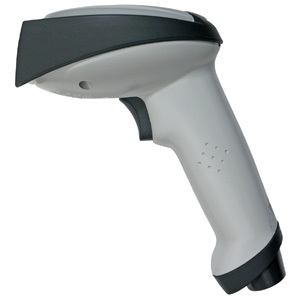

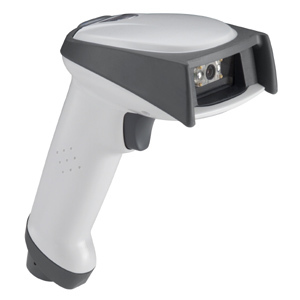

Honeywell 4600g – Barcode Scanner – 1D
Part Number:
4600GSF051C-0F00E
Request a Bulk Pricing Quote
Chat with a Product Expert
Honeywell 4600g Barcode Scanner Model Overview
The 4600g area imager from Honeywell combines the versatility of area imaging with the speed and cost of linear scanning for demanding retail and commercial applications. Powered by Adaptus imaging, the 4600g is full featured, fast, and cost effective. Durable, with no moving parts to wear out and Honeywell backs this with a best-in-class 3 year warranty.
Honeywell 4600GSF051C-0F00E Barcode Scanner Overview
The 4600gSF Bar Code Reader combines the right blend of performance and durability for a wide variety of applications that benefit from the power and versatility of a 2D imaging solution.
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
2 Dimensional:
PDF417 MicroPDF417 MaxiCode Data Matrix QR Code Aztec Aztec Mesa Code 49 EAN.UCC Composite Linear:
Codabar Code 39 Interleaved 2 of 5 Code 93 Code 128 UPC EAN RSS Codablock F Postal:
Postnet Planet Code British Post Canadian Post Japanese Post KIX (Netherlands) Post OCR Fonts:
Image Sensor Type:
Imager
Maximum Scan Resolution:
15 mil
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Physical Characteristics
Weight (Approximate):
6.50 oz
Miscellaneous
Package Contents:
4600gSF Bar Code Reader Straight USB Cable User Documentation
Additional Information:
USB cable
USB Cable separate
Certifications & Standards:
RoHS
International:
CB scheme to IEC60950-1 CB scheme to IEC60825-1 Class 1 LED USA:
FCC Part 15 subpart B Class A. UL listed to 60950-1. Canada:
ICES-003 Class A. cUL listed to CSA C22.2 No. 60950-1-03. Europe:
CE 2004/108/EC EMC Directive to EN55022 Class A EN55024 EN61000-3-2 EN61000-3-3. 2006/95/EC Low Voltage Directive. GS Mark:
Australia/NZ:
Laser Classification:
Laser Aimer Model only: Class 2 Laser IEC60825-1. Complies with 21 CFR 1040.10 and 1040.11 with Laser Notice No. 50. 1mW max output, 650 nM
Warranty
Item Numbers
Recommended Accessories
Category
Cables, Connectors, and Adapters (18)
Computer Accessories (1)
Mounting Hardware and Stands (2)
Power Device (3)
Scanner Accessories (3)
Recommended Accessories for Model: Honeywell 4600GSF051C-0F00E Barcode Scanner
Top Cables, Connectors, and Adapters Purchased With Honeywell 4600GSF051C-0F00E
Honeywell 42203758-03SE Accessory
RS-232 TTL, Connector: D 9 Pin F, power on pin 9, TX data on pin 2, straight Length: 7.7ft. (2.3m)
Item on backorder — chat for lead time
Honeywell 42203758-06E Accessory
RS-232 TTL, 9 F 'EP' 15', D 9 PIN F, Mini Din 4 PIN Length: 7.7 ft. (2.3m), coiled. Non-Cancelable/Non-Returnable.
Item on backorder — chat for lead time
See All Cables, Connectors, and Adapters for Honeywell 4600GSF051C-0F00E Barcode Scanner >
Top Computer Accessories Purchased With Honeywell 4600GSF051C-0F00E
Top Mounting Hardware and Stands Purchased With Honeywell 4600GSF051C-0F00E
Honeywell HFSTAND5E Accessory
Black flex neck stand holder for 4600, 4800i, 3800r and 3800i (for hands-free and presentation scanning)
Item on backorder — chat for lead time
Top Power Device Purchased With Honeywell 4600GSF051C-0F00E
Honeywell PS-050-2400D1-EU Power Device
Power supply, 5 volt, 2.4 amp 4 pin mini-din connector, power cord 77900508E with EURO input. For Honeywell 3800G, 4600G, 4800I. Replaces (Part# PS5U-42E). Non-Cancelable/Non-Returnable.
Item on backorder — chat for lead time
Top Scanner Accessories Purchased With Honeywell 4600GSF051C-0F00E
Honeywell HFSTAND5E Accessory
Black flex neck stand holder for 4600, 4800i, 3800r and 3800i (for hands-free and presentation scanning)
Item on backorder — chat for lead time
Honeywell PS-050-2400D1-NA Accessory
US Power Supply (5 volt, 2.4 amp 4 pin mini-din connector) with Power Cord. RoHS Compliant. Replaces (Part# PS5U-41E).
Item on backorder — chat for lead time
Please Call for Pricing or to Purchase
Hand Held PS5U-41E Accessory
US Power Supply with 5 Volt-Mini Din Ouput with Power Cord. RoHS Compliant.
Item on backorder — chat for lead time
Please Call for Pricing or to Purchase
The Honeywell 4600GSF051C-0F00E Barcode Scanner is also known as
HHP-4600GSF051C0F00E
or 4600GSF051C0F00E.
Honeywell 4600GSF051C-0F00E Barcode Scanner
Full specifications (PDF)
