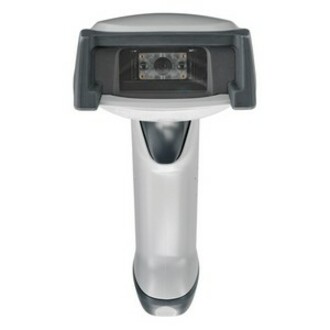

Honeywell 4600GHD151CE Barcode Scanner
Honeywell 4600GHD151CE Barcode Scanner
Honeywell 4600g HD -
High-Density Area Imager with QS Guide. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# 46-00525).
- Minimizes your manual entry and provides reliable scanning in a durable form factor
- Wired connectivity makes this scanner ideal for retail and desktop applications
- Laser-free design provides high-performance scanning without the risk of eye injury
Need a different version? See all Honeywell 4600g HD Barcode Scanners
Full specifications (PDF)The 4600g HD is perfect for a broad range of applications requiring the power and versatility of a 2D imager.
The 4600g HD combines the versatility of area imaging with the speed and cost of linear scanning for retail and commercial applications.Powered by AdaptusTM Imaging Technology 5.0, the 4600g HD is full featured, fast, and cost effective.
Honeywell 4600GHD151CE Overview
The 4600g area imager from Hand Held Products combines the versatility of area imaging with the speed and cost of linear scanning for retail and commercial applications. Powered by Adaptus Imaging Technology 5.0, the 4600g is full featured, fast, and cost effective.
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
2 Dimensional:
- PDF417
- MicroPDF417
- MaxiCode
- Data Matrix
- QR Code
- Aztec
- Aztec Mesas
- Code 49
- EAN?UCC Composite
Linear:
- Codabar
- Code 39
- Interleaved 2 of 5
- Code 93
- Code 128
- UPC
- EAN
- RSS
- Codablock F
- BC412
Postal (SR/SF Only):
- Postnet
- Planet Code
- British Post
- Canadian Post
- Japanese Post
- KIX (Netherlands) Post
OCR Fonts (SR/SF Only):
- OCR-A
- OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
- 1.9" - 3.8"@5mil
- 1.6" - 6.2"@13mil - UPC
- 1.6" - 4.5"@6.6mil - PDF
- 2.4" - 3.5"@6.4mil - Data Matrix
- 2.3" - 3.4"@6.7mil - QR Code
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
- Keyboard Wedge
- IBM 46XX
Physical Characteristics
Color:
Black
Height:
6.2"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
6.50 oz
Miscellaneous
Additional Information:
USB Cable separate
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC:
43211701
Loading...
The Honeywell 4600GHD151CE is also known as HHP-4600GHD151CE .
