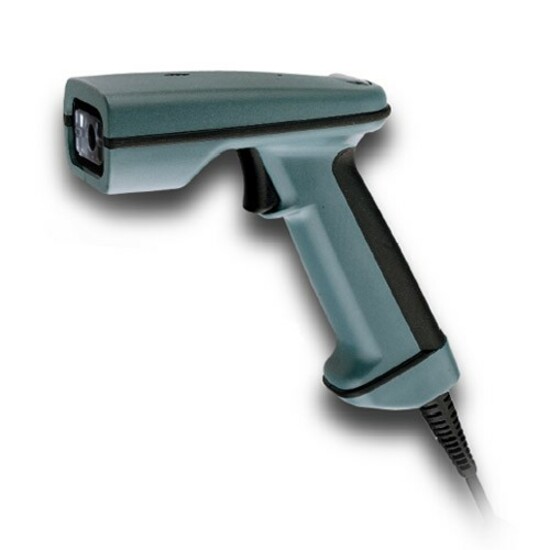

Honeywell 4410HD-131CK Barcode Scanner

The Honeywell 4410HD-131CK Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Honeywell ImageTeam 4410 - very high density RS-232 kit: Scanner, RS-232 cable & power supply.

At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
LED aimer is a perfect choice for patient-facing applications
Perfect for applications that require direct association with a workstation or a notebook

Need a different version? See all Honeywell ImageTeam 4410 Barcode Scanners

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

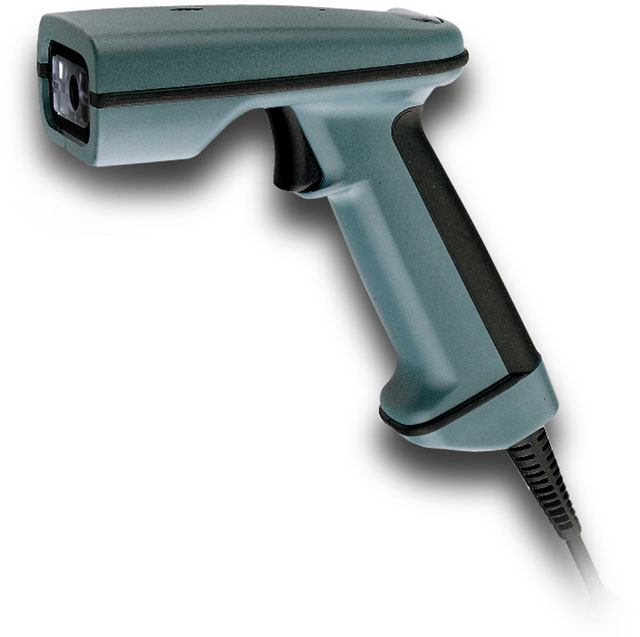

Honeywell ImageTeam 4410 Barcode Scanner Model Overview

The ImageTeam 4410 Series: Handheld input device for reading and decoding two dimensional (2D) symbologies and OCR text. The ImageTeam 4410 can also capture images for signature capture, record carton condition when shipped or received and other related applications.

Honeywell 4410HD-131CK Barcode Scanner Overview

The IMAGETEAM 4410HD High Density Bar Code Reader is a handheld input device for reading and decoding two dimensional (2D) symbologies. Lightweight, balanced, and easy to use, the IT 4410HD can be used in repetitive, high volume hand scanning operations in even the most demanding environments.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Barcode Symbology Supported:

PDF 417
DataMatrix
Code 39
Code 128
Codabar
UPC
Interleaved 2 of 5
RSS
Code 93
Coda Block
OCR-A
OCR-B
BC 412

Light Source:

LED

Image Sensor Type:

Imager

Depth of Field:

1.7" - 2.45"@6.6mil - QR Code
1.7" - 2.45"@6.6mil - Data Matrix
1.6" - 2.7"@4mil - Linear

Scan Pattern:

Omni-directional

Interfaces/Ports

Host Interface:

Serial

Power Description

Power Supply Included:

Yes

Physical Characteristics

Form Factor:

Handheld

Height:

5.6"

Width:

2.5"

Depth:

6.1"

Weight (Approximate):

7 oz

Miscellaneous

Package Contents:

IMAGETEAM 4410HD Bar Code Reader
Power Supply
Interface Cable

Additional Information:

Supported Interfaces:

RS-232
Wedge
HHLC (Code 128 Emulation)

USB Cable separate

Platform Supported:

Certifications & Standards:

FCC Class B
CE
EMC 89/336/EEC
LVD 73/23/EEC

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Get help from a Barcoding Expert!

The Honeywell 4410HD-131CK Barcode Scanner is also known as HHP-4410HD-131CK or 4410HD131CK.
