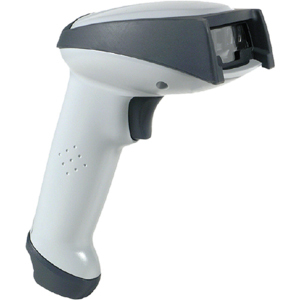

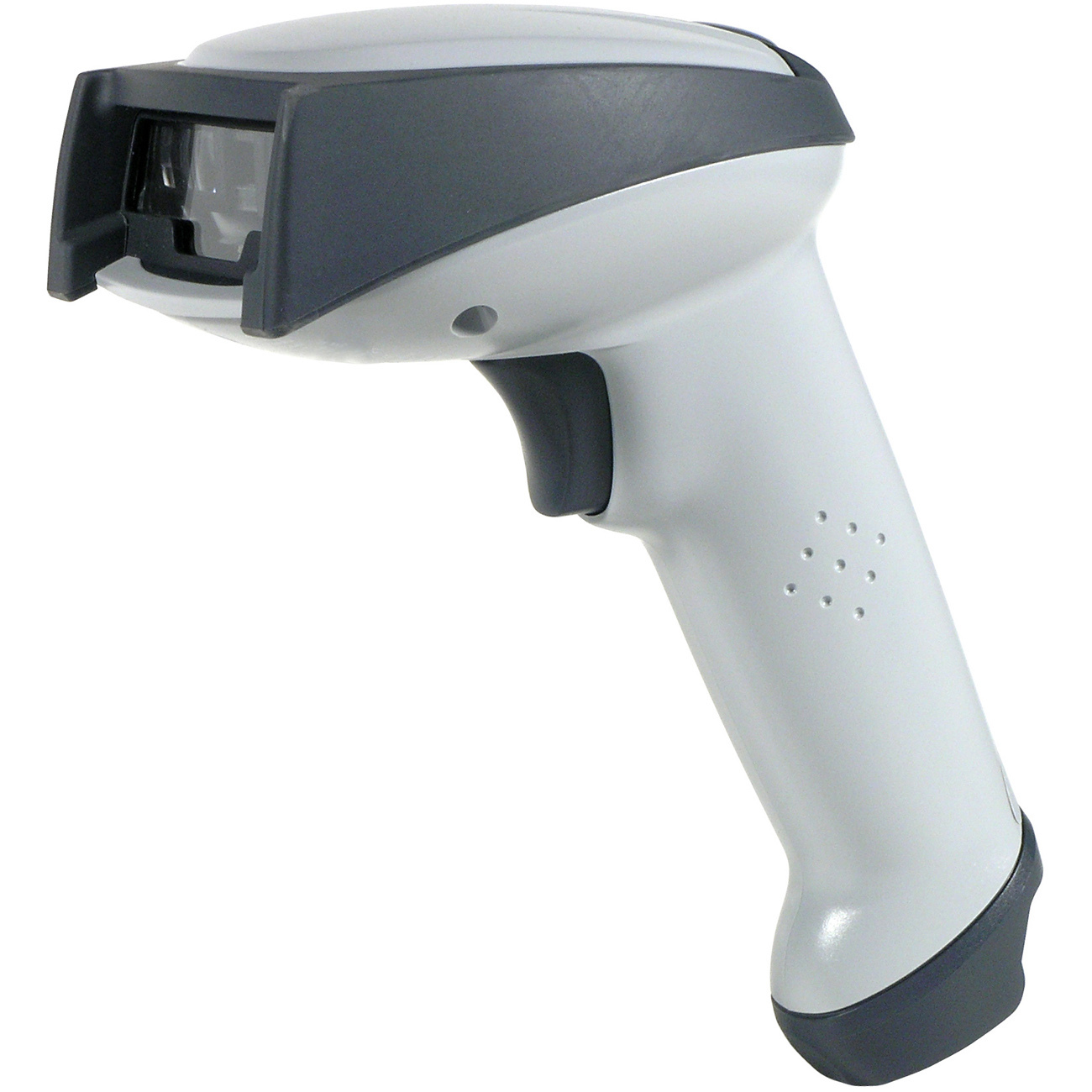

Honeywell 3820ISRE Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Honeywell 3820i - Scanner Only. Cradle, cables, power supply, and accessories are not included and must be purchased separately. Non-Cancelable/Non-Returnable.
$615.90
Ships in 3-5 Days
Protect Your Product
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Built for Comfort and Reliability in Industrial Applications

The Honeywell 3820i Industrial Cordless Linear Imager is designed to provide high-performance linear barcode scanning for applications that demand maximum reliability in the harshest working environments, combined with the freedom and convenience of Bluetooth cordless connectivity. The 3820i features a long-lasting lithium-ion battery with tool-free access, which powers up to 50,000 scans per full charge ensuring maximum uptime.

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 270 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 24"
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • China Post
    • Codabar
    • Codablock F
    • Code 2 of 5
    • Code 11
    • Code 16K
    • Code 39
    • Code 32 Pharmaceutical (PARAF)
    • Code 49
    • Code 128
    • EAN/JAN
    • IATA Code 2 of 5
    • Interleaved 2 of 5
    • Korea Post
    • Matrix 2 of 5
    • Coupon Code
    • MSI
    • Plessey Code
    • PosiCode
    • RSS-14
    • Telepen
    • Trioptic
    • UPC-A
    • UPC-E. 2005 Sunrise
    • GTIN compliant
    • China Post
    • Codabar
    • Codablock F
    • Code 2 of 5
    • Code 11
    • Code 16K
    • Code 39
    • Code 32 Pharmaceutical (PARAF)
    • Code 49
    • Code 128
    • EAN/JAN
    • IATA Code 2 of 5
    • Interleaved 2 of 5
    • Korea Post
    • Matrix 2 of 5
    • Coupon Code
    • MSI
    • Plessey Code
    • PosiCode
    • RSS-14
    • Telepen
    • Trioptic
    • UPC-A
    • UPC-E. 2005 Sunrise
    • GTIN compliant
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 4" - 14"@7.50 mil
    • 2" - 18"@10 mil
    • 1" - 24"@13 mil
    • 1" - 36"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 3800
  • Product Name: Handheld 3820 Barcode Reader

Physical Characteristics

  • Height: 6.2"
  • Width: 3.2"
  • Depth: 6.5"
  • Color: Orange
  • Weight (Approximate): 9.20 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information:
    • Superior Read Range
    • Fast and Aggressive Decode
    • Optional FIPS 140-2 Certified Encryption

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model 3820i
Form Factor Handheld
Scanner Type CCD, Laser
Connection Bluetooth
Color Orange
Communication Range less than 33 ft
Connectivity Cordless
Scanner Capability 1D
Scan Pattern Single Line
Included Cables Scanner Only - No Cable
Communication Type Bluetooth
Ruggedness General Purpose, Rugged
