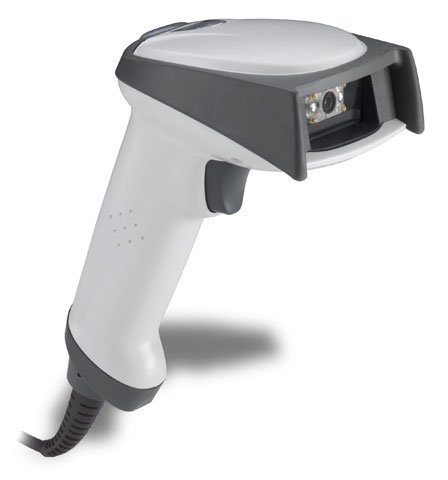

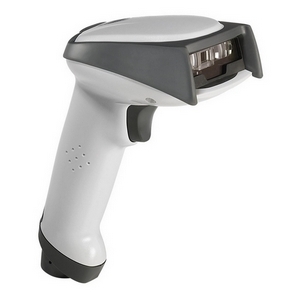

Honeywell 3800RSR050E Barcode Scanner

Honeywell exclusive imaging technology provides breakthrough performance in the new 3800r linear imager. The 3800r is the most powerful linear imager ever produced. It excels at read range, reading poor quality barcodes, and is extremely durable. These features will make your data acquisition successful, and lower your total cost of ownership.

Technical Information

Scan Pattern: Linear
Scan Rate: 270 scan/s
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Linear
Barcode Symbology Supported:
- Codabar
- Code 3 of 9 including PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Postal Code
- RSS
- Codabar
- Code 3 of 9 including PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Postal Code
- RSS
Maximum Scan Resolution: 5 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: 3800r
Product Name: 3800r Barcode Reader

Physical Characteristics

Height: 6.2"
Width: 3.2"
Depth: 5.3"
Color: Gray
Weight (Approximate): 6.50 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- 3800r Barcode Reader
- Desktop / Wall Mount Holder
- 3800r Barcode Reader
- Desktop / Wall Mount Holder
Certifications & Standards:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED Safety: Class 1
- UL
- cUL listed
- TUV
- RoHS
Platform Supported: PC
Additional Information:
- Supported Interfaces:
- Keyboard Wedge
- RS-232
- IBM 46xx
- USB

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 5 V DC

Full specifications (PDF)

See all Honeywell 3800r options »

Brand	Honeywell
Model	3800r
Connectivity	Corded
Scan Pattern	LED Beam
Scanner Capability	1D
Form Factor	Handheld
Scanner Type	Imager
Included Cables	USB
Ruggedness	General Purpose
