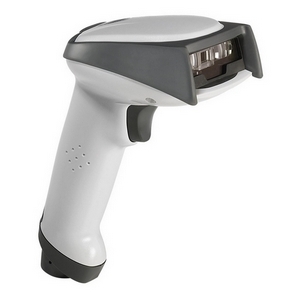

Honeywell 3800RSR050-0G00E Barcode Scanner

The Honeywell 3800RSR050-0G00E Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell 3800r - User Guide kit. Includes scanner (no cables), holder, and user guide. Cables and accessories must be purchased separately. . Non-Cancelable/Non-Returnable.
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Scan barcodes with a staggering speed of 270 scan/s
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More

Need a different version? See all Honeywell 3800r Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Honeywell 3800RSR050-0G00E Barcode Scanner
Honeywell 3800RSR050-0G00E Barcode Scanner Honeywell 3800RSR050-0G00E Barcode Scanner Honeywell 3800RSR050-0G00E Barcode Scanner
Honeywell 3800RSR050-0G00E Barcode Scanner
Honeywell 3800RSR050-0G00E Barcode Scanner
Honeywell 3800RSR050-0G00E Barcode Scanner
Full specifications (PDF)
Honeywell 3800r Barcode Scanner Model Overview
Honeywell exclusive imaging technology provides breakthrough performance in the new 3800r linear imager. The 3800r is the most powerful linear imager ever produced. It excels at read range, reading poor quality barcodes, and is extremely durable. These features will make your data acquisition successful, and lower your total cost of ownership.
Honeywell 3800RSR050-0G00E Barcode Scanner Overview

3800r Bar Code Reader with exclusive imaging technology provides breakthrough performance in the new 3800r linear imager. The 3800r is the most powerful linear imager ever produced. It excels at read range, reading poor quality bar codes, and is extremely durable. These features will make data acquisition successful, and lower total cost of ownership.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
5 mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Gray
Height:
6.2"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
6.50 oz
Miscellaneous
Package Contents:
  • 3800r Bar Code Reader
  • Holder
  • User's Guide (CD)
Additional Information:

USB Cable separate

Platform Supported:
PC
Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED Safety: Class 1
  • UL
  • cUL listed
  • TUV
  • RoHS
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell 3800RSR050-0G00E Barcode Scanner is also known as HHP-3800RSR0500G00E or 3800RSR0500G00E.
