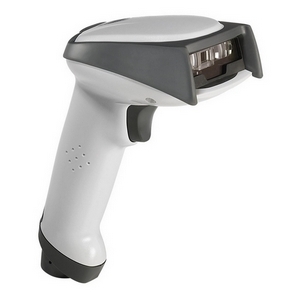

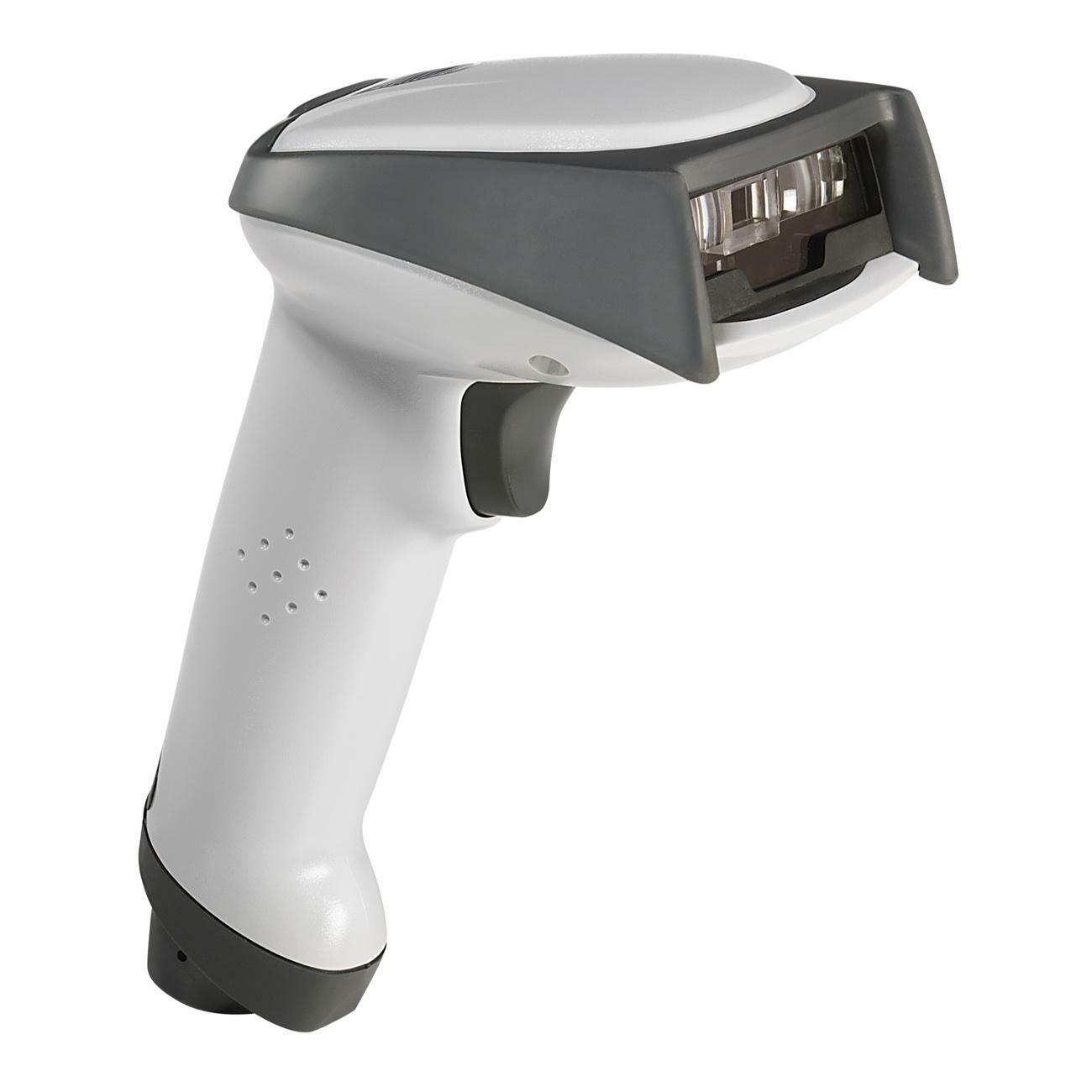

Honeywell 3800RSR030E Barcode Scanners


0.0

(No reviews)

Be the first to

Write a Review
Honeywell 3800r - Scanner Only (Multi-Interface), Gray. Cables and accessories are not included and must be purchased separately. Non-Cancelable/Non-Returnable.

Honeywell exclusive imaging technology provides breakthrough performance in the new 3800r linear imager. The 3800r is the most powerful linear imager ever produced. It excels at read range, reading poor quality barcodes, and is extremely durable. These features will make your data acquisition successful, and lower your total cost of ownership.

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 270 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
  • Maximum Scan Resolution: 5 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 3800r
  • Product Name: 3800r Barcode Reader

Physical Characteristics

  • Height: 6.2"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Gray
  • Weight (Approximate): 6.50 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 3800r Barcode Reader
    • Desktop / Wall Mount Holder
    • 3800r Barcode Reader
    • Desktop / Wall Mount Holder
  • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL listed
    • TUV
    • RoHS
  • Platform Supported: PC
  • Additional Information:
    • Supported Interface:
    • RS-232

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model 3800r
Connection RS-232 Serial
Form Factor Handheld
Connectivity Corded
Scan Pattern Area, LED Beam
Color Gray
Scanner Capability 1D
Scanner Type Imager
Included Cables Scanner Only - No Cable
Ruggedness General Purpose


Customer Review Summary

Recommended Accessories for Model: Honeywell 3800r Scanner
Honeywell Stand (HFSTAND7E)
Black flex-neck stand for 1300g or 3800g. 10" height, weighted base.
In Stock: Ships Same Day
$25.10
+ Add to Quote
Honeywell Cable (42203758-04E)
RS-232 TTL, Connector: D 9 Pin F connector, TX data on pin 2, external power, coiled Length: 7.7ft. (2.3m)
In Stock: Ships Same Day
$22.10
+ Add to Quote
Hand Held Cable (42203758-06E)
RS-232 TTL, 9 F 'EP' 15', D 9 PIN F, Mini Din 4 PIN Length: 7.7 ft. (2.3m), coiled. Non-Cancelable/Non-Returnable.
In Stock: Ships Same Day
$74.20
+ Add to Quote
Honeywell Stand (HFSTAND5E)
Black flex neck stand holder for 4600, 4800i, 3800r and 3800i (for hands-free and presentation scanning)
In Stock: Ships Same Day
$25.10
+ Add to Quote
Hand Held (42206202-01)
USB cable for the 3800LX-14 and 3800LX-15
In Stock: Ships Same Day
$35.20
+ Add to Quote
Protect Your Product
Honeywell Service Contracts (SVC3800R-1LC5)
3800R, Limited Comprehensive, 1 Day Turn, 5 year DayOne
Ships in 3-5 Days
$32.30
+ Add to Quote
Honeywell Service Contract - 5 year (SVC3800G/R/P-SMS5)
5-year, Comprehensive coverage, 1-day turnaround service for your 3800g/3800r/3800pdf
Ships in 3-5 Days
$29.80
+ Add to Quote

The Honeywell 3800RSR030E is also known as HHP-3800RSR030E .
