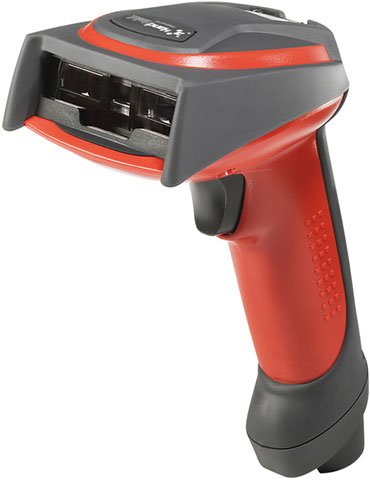

Honeywell 3800ISR050E Barcode Scanners


0.0

(No reviews)

Be the first to

Write a Review
Honeywell 3800i - Scanner Only. Cables and accessories are not included and must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# PS-090-2000D-NA).

The 3800i handheld industrial image readers are the first industrial class readers to bring you Honeywell industry-leading image technology. This technology allows you to read barcodes at ranges up to 82 inches (208 cm). In real world applications, this extended read range means less climbing and reaching, and more operator productivity.

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 270 scan/s
  • Connectivity Technology: Cable
  • Scanning Distance: 81.89"
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • Codabar
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • Code 39 including PARAF
    • Codabar
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • Code 39 including PARAF
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 6.50" - 15"@7.50 mil
    • 2.50" - 28"@ - 100% UPC
    • 2.50" - 31"@15 mil
    • 1.50" - 42"@20 mil
    • 4" - 82"@55 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 3800i
  • Product Name: 3800i Barcode Reader
  • Product Line: IMAGETEAM

Physical Characteristics

  • Height: 6.4"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Orange
  • Weight (Approximate): 7.50 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • UL
    • cUL
    • TÜV
    • RoHS Compliant
    • LED Classification: Class 1 under EN60825-01
  • Platform Supported: PC
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeUSBWand EmulationIBM 468X/469X

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 14 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model 3800i
Scanner Capability 1D
Form Factor Handheld
Scan Pattern LED Beam
Connectivity Corded
Scanner Type Imager
Included Cables USB
Ruggedness Rugged
