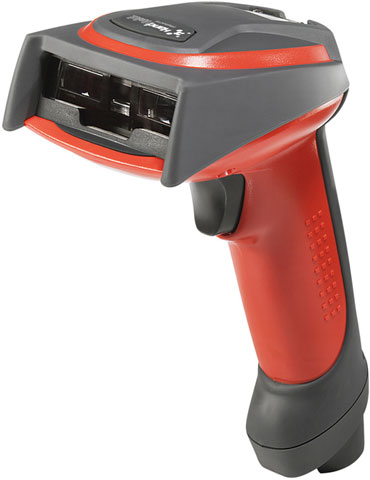

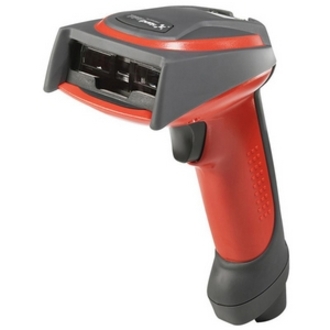

Honeywell 3800ISR050-0G00E Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Honeywell 3800i - User Guide kit. Includes scanner (no cables), desktop holder, and user guide. Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# PS-090-2000D-NA).

The 3800i handheld industrial image readers are the first industrial class readers to bring you Honeywell industry-leading image technology. This technology allows you to read barcodes at ranges up to 82 inches (208 cm). In real world applications, this extended read range means less climbing and reaching, and more operator productivity.

Technical Information

  • Form Factor: Handheld Scanner
  • Resolution: 7.5 mil(s)
  • Symbologies Supported:
    • Codabar
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • Code 39 including PARAF
  • Scanner Type: Linear Imager
  • Scan Rate: 270 Decodes per second
  • Interface Options:
    • RS-232
    • Keyboard Wedge
    • USB
    • Wand Emulation
    • IBM 468X/469X
  • Interface Connectivity: Corded
  • Scan Pattern: Linear
  • Input Voltage Range: 4.5 to 14 V DC
  • Depth of Field:
    • 6.5 - 15"@7.5mils
    • 2.5 - 28" - 100% UPC
    • 2.5 - 31"@15mils
    • 1.5 - 42"@20mils
    • 4 - 82"@55mils

General Information

Physical Characteristics

  • Color: Orange

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • UL
    • cUL
    • TÃúV
    • RoHS Compliant
    • LED Classification: Class 1 under EN60825-01

Environmental Conditions

  • Temperature:
    • -22°F (-30°C) to 122°F (50°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95% Non-condensing

Other

  • Package Contents:
    • 3800i Barcode Scanner
    • User Documentation

Warranty

  • Manufacturer Warranty: 3 Year(s)

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Honeywell 3800i Scanner
Honeywell Stand (HFSTAND7E)
Black flex-neck stand for 1300g or 3800g. 10" height, weighted base.
In Stock: Ships Same Day
$23.80
+ Add to Quote
Hand Held Cable (42206161-01E)
USB, black, Type A, 2.6m (8.5'), straight, host power
In Stock: Ships Same Day
$17.20
+ Add to Quote
Honeywell (3800GHOLDERE)
Holder: desktop/wallmount for 3800g only
In Stock: Ships Same Day
$19.90
+ Add to Quote
Hand Held Cable (42203764-03E)
Wand Emulation, Power on Pin 9 Connector: D 9 PIN Squeeze Length: 7.7 ft. (2.3m), coiled. Non-Cancelable/Non-Returnable.
In Stock: Ships Same Day
$34.20
+ Add to Quote
Honeywell Cable (42206202-03E)
USB, Host Powered, 12.1 feet, Coiled, Type A, Black.
In Stock: Ships Same Day
$52.30
+ Add to Quote
Protect Your Product
Honeywell Service Contracts (SVC3800I-EXW5)
SERVICE CONTRACT, 3800I, BASIC, 10-15 DAY TURN, 5 YEARS (3 YEAR FACTORY WARRANTY + 2 YEAR EXTENDED), (20 UNIT MINIMUM)
Ships in 3-5 Days
$22.40
+ Add to Quote
Honeywell Service Contracts (SVC3800I-EXW4)
SERVICE CONTRACT, 3800I, BASIC, 10-15 DAY TURN, 4 YEARS (3 YEAR FACTORY WARRANTY + 1 YEAR EXTENDED), (20 UNIT MINIMUM)
Ships in 3-5 Days
$16.20
+ Add to Quote
Honeywell Service Contracts (SVC3800I-EXW1R)
SERVICE CONTRACT, 3800I, BASIC, 10-15 DAY TURN, 1 YEAR RENEWAL OR POSTSALES CONTRACT, (20 UNIT MINIMUM)
Ships in 3-5 Days
$17.40
+ Add to Quote
Honeywell Service Contract -1 year (SVC3800I-5WTR)
3800I, WEAR & TEAR ONLY, 5 DAY TURN, 1 YEAR RENEWAL, (20 UNIT MINIMUM)
Ships in 3-5 Days
$19.30
+ Add to Quote
Honeywell Service Contract -3 year (SVC3800I-5WT3)
3800I, WEAR & TEAR ONLY, 5 DAY TURN, 3 YEAR DAYONE
Ships in 3-5 Days
$34.50
+ Add to Quote

The Honeywell 3800ISR050-0G00E is also known as HHP-3800ISR050-0G00E or 3800ISR0500G00E .
