You've just added this product to the cart:

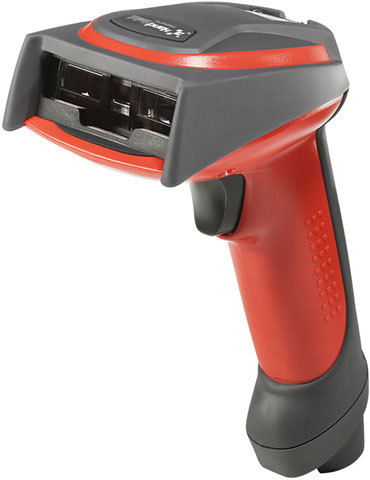

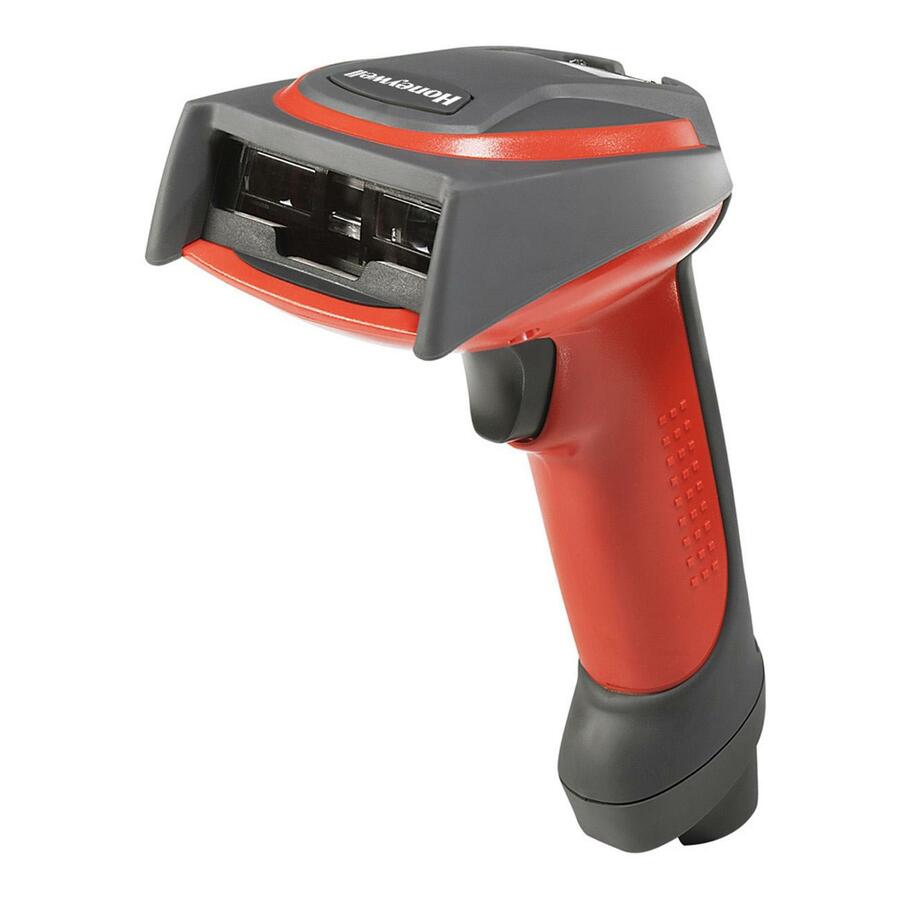

Honeywell 3800ISR050-0A00E Barcode Scanner

Honeywell 3800i - PS/2 kit. Includes PS/2 cable and user guide.

Full specifications (PDF)

The 3800i handheld industrial image readers are the first industrial class readers to bring you Honeywell industry-leading image technology. This technology allows you to read barcodes at ranges up to 82 inches (208 cm). In real world applications, this extended read range means less climbing and reaching, and more operator productivity.

Technical Information

  • Form Factor: Handheld Scanner
  • Resolution: 7.5 mil(s)
  • Symbologies Supported:
    • Codabar
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • Code 39 including PARAF
  • Scanner Type: Linear Imager
  • Scan Rate: 270 Decodes per second
  • Interface Options:
    • RS-232
    • Keyboard Wedge
    • USB
    • Wand Emulation
    • IBM 468X/469X
  • Interface Connectivity: Corded
  • Scan Pattern: Linear
  • Input Voltage Range: 4.5 to 14 V DC
  • Depth of Field:
    • 6.5 - 15"@7.5mils
    • 2.5 - 28" - 100% UPC
    • 2.5 - 31"@15mils
    • 1.5 - 42"@20mils
    • 4 - 82"@55mils

General Information

Physical Characteristics

  • Color: Orange

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • UL
    • cUL
    • TÃúV
    • RoHS Compliant
    • LED Classification: Class 1 under EN60825-01

Other

  • Package Contents:
    • 3800i Barcode Scanner
    • Keyboard Wedge Coiled Cable
    • User Documentation
  • Cables Included: Keyboard Wedge

Environmental Conditions

  • Temperature:
    • -22°F (-30°C) to 122°F (50°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)
Protect Your Product
Honeywell Service Contracts (SVC3800I-EXW5)
SERVICE CONTRACT, 3800I, BASIC, 10-15 DAY TURN, 5 YEARS (3 YEAR FACTORY WARRANTY + 2 YEAR EXTENDED), (20 UNIT MINIMUM)
Temporarily out of stock; available to order
$23.02
+ Add to Quote
Honeywell Service Contracts (SVC3800I-EXW4)
SERVICE CONTRACT, 3800I, BASIC, 10-15 DAY TURN, 4 YEARS (3 YEAR FACTORY WARRANTY + 1 YEAR EXTENDED), (20 UNIT MINIMUM)
Temporarily out of stock; available to order
$16.51
+ Add to Quote
Honeywell Service Contracts (SVC3800I-EXW1R)
SERVICE CONTRACT, 3800I, BASIC, 10-15 DAY TURN, 1 YEAR RENEWAL OR POSTSALES CONTRACT, (20 UNIT MINIMUM)
Temporarily out of stock; available to order
$19.55
+ Add to Quote
Honeywell Service Contract -1 year (SVC3800I-5WTR)
3800I, WEAR & TEAR ONLY, 5 DAY TURN, 1 YEAR RENEWAL, (20 UNIT MINIMUM)
Temporarily out of stock; available to order
$19.30
+ Add to Quote
Honeywell Service Contracts (SVC3800I-5FCR)
3800i, Full Comprehensive, 5 Day Turn, 1 year renewal, (10 unit min)
Temporarily out of stock; available to order
$21.16
+ Add to Quote

Full specifications (PDF)

Brand Honeywell
Model 3800i
Connection AT/PS2 Keyboard Wedge
Scanner Capability 1D

Recommended Accessories for Model: Honeywell 3800i Scanner

Category

  • Mounting Hardware & Stands (3)
  • Cables, Connectors, and Adapters (16)
  • Power Systems & Supplies (1)
  • Spare Parts (1)
Recommended Accessories for Model: Honeywell 3800i Scanner

Mounting Hardware & Stands

Honeywell Stand (HFSTAND5E)
Black flex neck stand holder for 4600, 4800i, 3800r and 3800i (for hands-free and presentation scanning)
In Stock: Ships Same Day
$29.74
+ Add to Quote
Honeywell Stand (HFSTAND7E)
Black flex-neck stand for 1300g or 3800g. 10" height, weighted base.
In Stock: Ships Same Day
$30.03
+ Add to Quote
Hand Held 3800i (VMHOLDERE)
Vehicle-Fork Lift Holder for the 3800 and 4800, RoHS. Non-Cancelable/Non-Returnable.
In Stock: Ships Same Day
$33.12
+ Add to Quote

Cables, Connectors, and Adapters

Honeywell Cable (42203758-04E)
RS-232 TTL, Connector: D 9 Pin F connector, TX data on pin 2, external power, coiled Length: 7.7 ft. (2.3m)
In Stock: Ships Same Day
$25.42
+ Add to Quote
Honeywell Cable (42206202-03E)
USB, Host Powered, 12.1 feet, Coiled, Type A, Black.
In Stock: Ships Same Day
$70.56
+ Add to Quote
Hand Held Cable (42203758-06E)
RS-232 TTL, 9 F 'EP' 15', D 9 PIN F, Mini Din 4 PIN Length: 7.7 ft. (2.3m), coiled. Non-Cancelable/Non-Returnable.
In Stock: Ships Same Day
$91.05
+ Add to Quote
Hand Held Cable (42206161-01E)
USB, black, Type A, 2.6m (8.5'), straight, host power
Ships in 3-5 Days
$21.36
+ Add to Quote
Honeywell Cable (42206132-02SE)
AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), straight. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
$25.42
+ Add to Quote
Honeywell Cable (42203758-03SE)
RS-232 TTL, Connector: D 9 Pin F, power on pin 9, TX data on pin 2, straight Length: 7.7 ft. (2.3m)
Ships in 3-5 Days
$25.42
+ Add to Quote
Hand Held Cable (42204906-01E)
55/30 extender Cable: Connector: Modular 8 PIN M/F, coiled
Hand Held Cable (42203764-03E)
Wand Emulation, Power on Pin 9 Connector: D 9 PIN Squeeze Length: 7.7 ft. (2.3m), coiled. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
$41.30
+ Add to Quote
Hand Held Cable (42203758-01E)
RS-232 TTL, Power on Pin 9, TX Data on Pin 2 Connector: D 9 PIN M Length: 7.7 ft. (2.4m), coiled. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
$44.90
+ Add to Quote
Hand Held (42206202-01)
USB cable for the 3800LX-14 and 3800LX-15
Ships in 3-5 Days
$45.27
+ Add to Quote
Hand Held Cable (42204253-04E)
RS-232, black, TX Data on Pin 2 Connector: D 9 PIN F and Mini Din 4 PIN F, 2.3m (7.7'), coiled, external power. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
$63.11
+ Add to Quote
Honeywell Cable (42206431-01E)
USB, black, Type A, 3.4m (11.1') coiled, host power (Use with 3800VHD-ESD-12E. Not compatible with 3800g)
Ships in 3-5 Days
$74.15
+ Add to Quote
Hand Held Cable (42204253-05E)
RS-232, black, TX Data on Pin 2 Connector: D 9 PIN F and Mini Din 4 PIN F, 5.0m (16.3'), coiled, external power. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
$75.50
+ Add to Quote
Hand Held Cable (42205978-01E)
HHLC/laser emulation Connector: D 9 PIN Squeeze Length: 6.8 ft. (2.0m), coiled. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
$78.65
+ Add to Quote
Hand Held Cable (42206132-01E)
AT - PS/2 & compatibles wedge, EP, Connector: Mini Din 6 PIN F Length: 15.5 ft. (4.7m), straight. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
$124.74
+ Add to Quote
Hand Held Cable (42204253-22E)
RS-232, black, TX Data on Pin 2 Connector: D 9 PIN M/F and Mini Din 4 PIN F, 6.8m (22.3'), coiled, external power. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
$156.96
+ Add to Quote

Power Systems & Supplies

Honeywell (PS-050-2400D1-NA-6)
POWER SUPPLY 5V DESKTOP
In Stock: Ships Same Day
$37.30
+ Add to Quote

Spare Parts

Honeywell (100003438FRE)
Gray Tool Free ThumbWheel Endcap (Use with Orange IND Cordless Scanner). Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
$51.91
+ Add to Quote

The Honeywell 3800ISR050-0A00E is also known as HHP-3800ISR050-0A00E or 3800ISR0500A00E .
