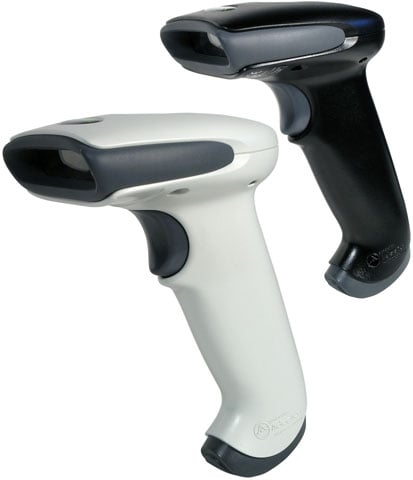

Honeywell 3800G15E Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Honeywell 3800g - SCANNER ONLY, 1D Linear Imager, IBM Retail. Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42206422-01E) and a power supply (Part# 46-00525). Color: Black.
General Purpose Linear Imager

The 3800g is built to deliver world-class performance for a broad range of applications in retail, manufacturing, warehousing, distribution and all points in between. Featuring the ideal balance of performance, durability, ergonomics and connectivity options, the 3800g will deliver years of hassle-free service. The 3800g features improved depth of field, fast barcode reading and high tolerance to motion, plus a convenient variety of connectivity options, including USB, PS/2 Keyboard wedge and RS-232 Serial.

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Resolution: 3 mil(s)
  • Symbologies Supported:
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • Sunrise 2005
    • GTIN Compliant
  • Scanner Type: Linear Imager
  • Scan Rate: 270 Decodes per second
  • Interface Options:
    • Keyboard Wedge
    • RS-232
    • USB
    • IBM Retail
  • Interface Connectivity: Corded
  • Scan Pattern: Linear
  • Input Voltage Range: 5 to 12 V DC
  • Depth of Field:
    • 2 - 8"@5mils
    • 1.5 - 12"@7.5mils
    • 1 - 15"@10mils - 80% UPC
    • 0.5 - 18"@13mils - 100% UPC
    • 1 - 22"@15mils
    • 1 - 26"@20mils

General Information

Physical Characteristics

  • Dimensions: 5.9" (149.86mm) x 3.1" (78.74mm) x 4.4" (111.76mm)
  • Weight: 5.6 oz
  • Color: Black

Agency Approvals

  • Agency Approvals:
    • UL
    • cUL
    • RoHS
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 5 Year(s)

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model 3800g
Scanner Capability 1D
Scanner Type Imager


Customer Review Summary

Recommended Accessories for Model: Honeywell 3800g Scanner
Honeywell Stand (HFSTAND7E)
Black flex-neck stand for 1300g or 3800g. 10" height, weighted base.
In Stock: Ships Same Day
$25.10
+ Add to Quote
Hand Held Cable (42206161-01E)
USB, black, Type A, 2.6m (8.5'), straight, host power
In Stock: Ships Same Day
$17.90
+ Add to Quote
Honeywell Cable (42206202-02E)
USB, black, Type A, 2.8m (9.2'), coiled, host powered
In Stock: Ships Same Day
$22.10
+ Add to Quote
Hand Held Cable (42203758-06E)
RS-232 TTL, 9 F 'EP' 15', D 9 PIN F, Mini Din 4 PIN Length: 7.7 ft. (2.3m), coiled. Non-Cancelable/Non-Returnable.
In Stock: Ships Same Day
$74.10
+ Add to Quote
Honeywell Cable (42203758-04E)
RS-232 TTL, Connector: D 9 Pin F connector, TX data on pin 2, external power, coiled Length: 7.7 ft. (2.3m)
In Stock: Ships Same Day
$22.10
+ Add to Quote
Protect Your Product
Honeywell Service Contract - 5 year (SVC3800G/R/P-SMS5)
5-year, Comprehensive coverage, 1-day turnaround service for your 3800g/3800r/3800pdf
Ships in 3-5 Days
$29.80
+ Add to Quote

The Honeywell 3800G15E is also known as HHP-3800G15E .
