Honeywell Vuquest 3320g – Barcode Scanner – Corded – 1D – Scanner Only

Part Number: 3320GHD-4-N
Model: Vuquest 3320g
to get Free Ground Shipping on your order.
3-year Premium Plus ($100.28)
3-year Premium ($45.58)
No Support
$425.63
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Hands Free
Interface Options
USB
Scanner Capability
1D

Product Description:

  Corded Scanner, Honeywell Vuquest 3320g, 2D Imager, General Purpose, Scanner Only (No Included Cables), Hands Free, Ivory, HD Focus

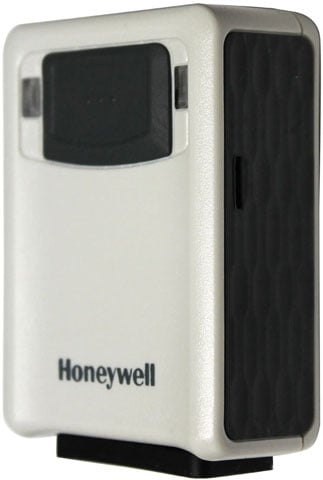

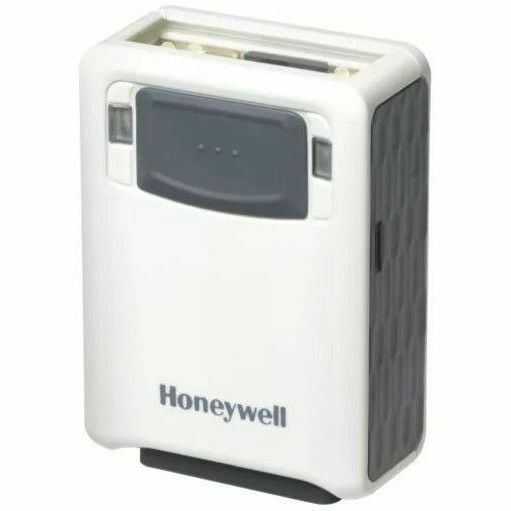

Honeywell 3320g Barcode Scanner Model Overview

The Honeywell Vuquest™ 3320g is a compact area-imaging scanner designed to provide superior scanning performance for all types of barcodes, including 1D, PDF, and 2D formats. Lightweight and durable, this scanner blends seamlessly into any retail environment while offering advanced capabilities powered by Adaptus™ Imaging Technology 6.0. Its unobtrusive illumination minimizes distractions, ensuring a user-friendly experience. Equipped with the Total Freedom™ 2.0 development platform, the Vuquest 3320g enhances functionality by allowing custom decoding and formatting plug-ins, catering to unique business requirements.

Key features:
  • Intelligent multi-interface design: Automates interface detection and supports various connections.
  • Direct scanning from screens: Scans barcodes from mobile devices with ease.
  • Laser-free aiming: Provides accurate scanning without risk of eye injury.
  • Flexible licensing solution: Upgrade scanning capabilities as needed with simple license purchases.


Specifications:
  • Dimensions: 73 mm x 51 mm x 26 mm (2.9 in x 2.0 in x 1.0 in)
  • Weight: 77 g (2.7 oz)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Humidity: 5% to 95% relative humidity, non-condensing
  • Drop Resistance: Designed to withstand drops of up to 1.5 m (5 ft)
  • IP Rating: IP53 for environmental sealing
  • Decode Capability: Reads standard 1D, 2D, Postal and OCR symbologies
  • Warranty: Two-year factory warranty
Honeywell 3320GHD-4-N Barcode Scanner Overview

The Honeywell Vuquest 3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner's sleek and elegant design also blends seamlessly in retail environments.

Powered by Adaptus Imaging Technology 6.0, the Vuquest 3320g scanner delivers superior barcode scanning and digital image capture. Aggressive reading of barcodes on highly reflective surfaces, such as mobile phone screens, eliminates the need to purchase additional specialty hardware.

Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners.

The TotalFreedom™ 2.0 second-generation development platform expands scanner functionality by allowing decoding and formatting plug-ins to be loaded directly onto the Vuquest 3320g scanner, enabling enterprises to rapidly support proprietary or newly developed symbologies.

The ability to control the triggering of an external device such as a beeper, photo eye or illumination via external I/O capabilities allows the Vuquest 3320g scanner to enter new markets once reserved for expensive industrial products.

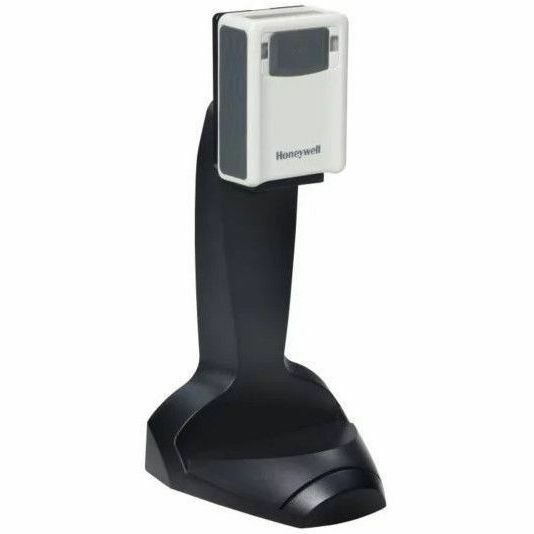

With its small size, ergonomically friendly thumb-activated button and clearly visible indicator LEDs, the Vuquest 3320g scanner offers a dependable handheld or wearable scanning solution. The Vuquest 3320g scanner also offers universal mounting and robust presentation mode scan performance, making the device an ideal fixed-mount scanning solution for use in light industrial applications and kiosks.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
Reads standard 1D, PDF, 2D, Postal and OCR symbologies
Image Sensor Type:
Imager
Scan Pattern:
Area
Scanner Range:
Short Range
Scanning Distance:
17.10"
Features:
  • Notification LED
  • Data Formatter
  • Ergonomic Design
  • Scan Button
Field of View (Horizontal):
42°
Field of View (Vertical):
33°
Reading Angle (Skew):
65°
Reading Angle (Pitch):
45°
Maximum Ambient Light:
100000 lux
Drop Specification:

Designed to withstand 1.5 m (5 ft) drops

Minimum Print Contrast:
20%
Minimum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (Code 39):
10 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
6.7 mil
Image Sensor Resolution:
838 x 640
Interfaces/Ports
Host Interface:
  • USB
  • Serial
  • Keyboard Wedge
Power Description
Maximum Operating Power Consumption:
2.30 W
Standby Current:
90 mA
Environmental Conditions
Operating Temperature:
32°F (0°C) to 104°F (40°C)
Storage Temperature:
-4°F (-20°C) to 158°F (70°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Desktop
Color Family:
Gray
Product Color:
Gray
Durability:
Drop Resistant
Height:
1"
Width:
2"
Length:
2.9"
Weight (Approximate):
2.72 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP53
Application/Usage:
  • Retail
  • Kiosk
  • Industrial
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
