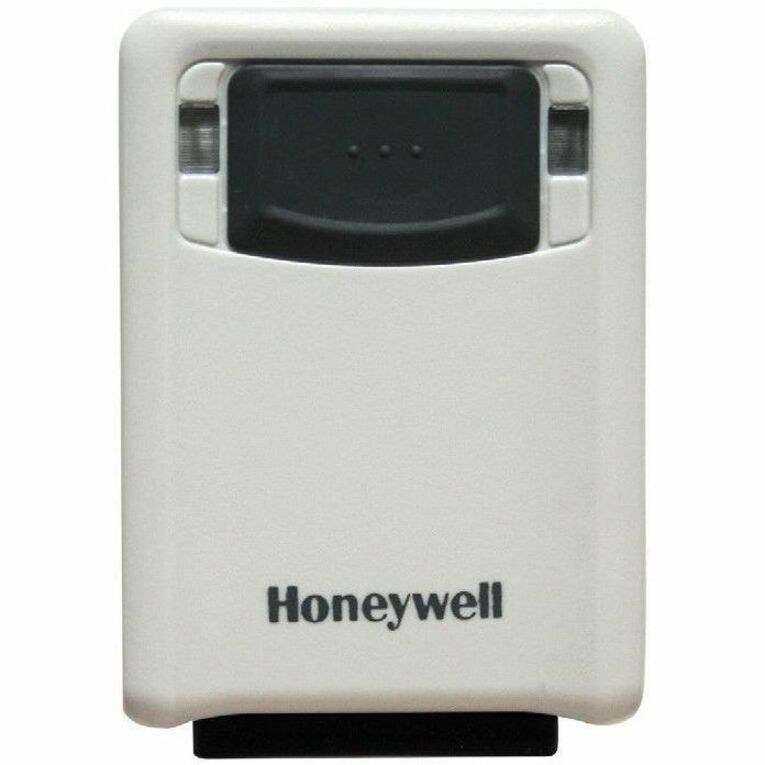

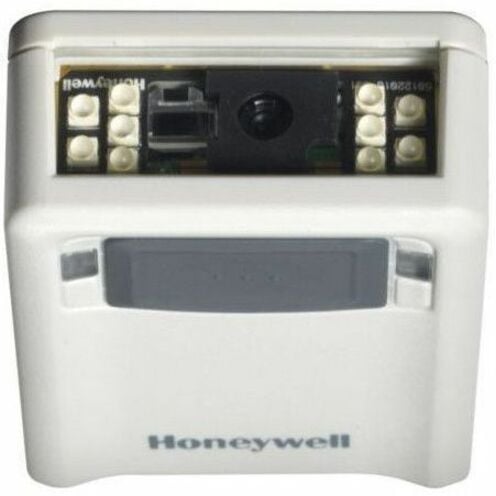

The Honeywell Vuquest™ 3320g is a compact area-imaging scanner designed to provide superior scanning performance for all types of barcodes, including 1D, PDF, and 2D formats. Lightweight and durable, this scanner blends seamlessly into any retail environment while offering advanced capabilities powered by Adaptus™ Imaging Technology 6.0. Its unobtrusive illumination minimizes distractions, ensuring a user-friendly experience. Equipped with the Total Freedom™ 2.0 development platform, the Vuquest 3320g enhances functionality by allowing custom decoding and formatting plug-ins, catering to unique business requirements.
Key features:
Intelligent multi-interface design: Automates interface detection and supports various connections.
Direct scanning from screens: Scans barcodes from mobile devices with ease.
Laser-free aiming: Provides accurate scanning without risk of eye injury.
Flexible licensing solution: Upgrade scanning capabilities as needed with simple license purchases.
Specifications:
Dimensions: 73 mm x 51 mm x 26 mm (2.9 in x 2.0 in x 1.0 in)
Weight: 77 g (2.7 oz)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Humidity: 5% to 95% relative humidity, non-condensing
Drop Resistance: Designed to withstand drops of up to 1.5 m (5 ft)
IP Rating: IP53 for environmental sealing
Decode Capability: Reads standard 1D, 2D, Postal and OCR symbologies
Warranty: Two-year factory warranty
Honeywell 3320G-2USB-0-N Barcode Scanner Overview
The Honeywell Vuquest™ 3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner's sleek and elegant design also blends seamlessly in retail environments. Powered by Adaptus™ Imaging Technology 6.0, the Vuquest 3320g scanner delivers superior barcode scanning and digital image capture. Aggressive reading of barcodes on highly reflective surfaces, such as mobile phone screens, eliminates the need to purchase additional specialty hardware. Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners. The TotalFreedom™ 2.0 second-generation development platform expands scanner functionality by allowing decoding and formatting plug-ins to be loaded directly onto the Vuquest 3320g scanner, enabling enterprises to rapidly support proprietary or newly developed symbologies. The ability to control the triggering of an external device such as a beeper, photo eye or illumination via external I/O capabilities allows the Vuquest 3320g scanner to enter new markets once reserved for expensive industrial products. With its small size, ergonomically friendly thumb-activated button and clearly visible indicator LEDs, the Vuquest 3320g scanner offers a dependable handheld or wearable scanning solution. The Vuquest 3320g scanner also offers universal mounting and robust presentation mode scan performance, making the device an ideal fixed-mount scanning solution for use in light industrial applications and kiosks
What types of barcodes can the Honeywell 3320G-2USB-0-N scanner read?
The Honeywell Vuquest 3320g is a 2D area-imaging scanner that reads all 1D barcodes, PDF417, and 2D barcodes including QR codes. This aggressive scanning capability makes it ideal for warehouses and logistics environments where you need to capture multiple barcode formats on a single device.
Is the Honeywell 3320G hands-free operation supported?
Yes, the 3320G-2USB-0-N features hands-free scanning capability, allowing operators to scan barcodes without holding the device. This design is particularly useful in high-volume warehouse and retail environments where efficiency and ergonomics are critical.
What connectivity options does the 3320G-2USB-0-N provide?
The Honeywell 3320g features intelligent multiple interface design supporting popular connectivity options on a single device, with this model specifically offering USB connectivity via included USB cable. The scanner also supports mobile phone reading technology, allowing you to scan barcodes directly from mobile devices.
Can the Honeywell 3320G scan barcodes on mobile phones?
Yes, the 3320G-2USB-0-N includes mobile phone reading technology, enabling you to scan barcodes displayed on mobile device screens. This capability is valuable for modern logistics and retail operations that increasingly use mobile-based barcode systems.
Is the Honeywell 3320G durable enough for warehouse environments?
The Honeywell Vuquest 3320g is engineered as a lightweight, durable, and portable scanner designed to withstand demanding warehouse and logistics environments. Its compact form factor and robust construction make it suitable for intensive daily use in distribution centers and inventory management operations.
How does the 3320G compare to other compact area-imaging scanners?
The Honeywell 3320g stands out with its sleek, elegant design that blends seamlessly into retail and warehouse environments while delivering aggressive scanning of all 1D and 2D barcode formats. We offer the 3320G-2USB-0-N as part of our comprehensive barcode scanner selection—contact us today to discuss how it compares to other imaging scanners for your specific application.
Get help from a Barcoding Expert!
The Honeywell 3320G-2USB-0-N Barcode Scanner is also known as
HSM-3320G2USB0N
or 3320G2USB0N.
