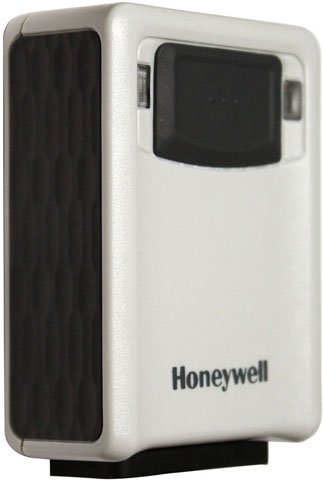

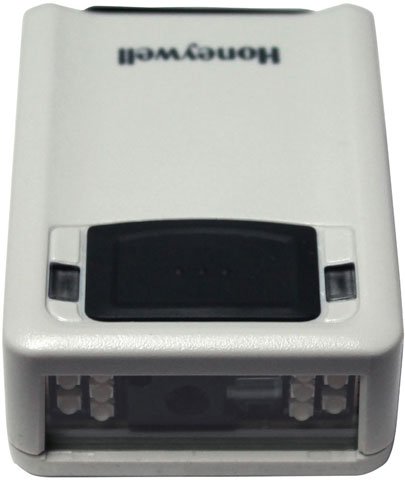

The Honeywell Vuquest™ 3320g is a compact area-imaging scanner designed to provide superior scanning performance for all types of barcodes, including 1D, PDF, and 2D formats. Lightweight and durable, this scanner blends seamlessly into any retail environment while offering advanced capabilities powered by Adaptus™ Imaging Technology 6.0. Its unobtrusive illumination minimizes distractions, ensuring a user-friendly experience. Equipped with the Total Freedom™ 2.0 development platform, the Vuquest 3320g enhances functionality by allowing custom decoding and formatting plug-ins, catering to unique business requirements.
Key features:
Intelligent multi-interface design: Automates interface detection and supports various connections.
Direct scanning from screens: Scans barcodes from mobile devices with ease.
Laser-free aiming: Provides accurate scanning without risk of eye injury.
Flexible licensing solution: Upgrade scanning capabilities as needed with simple license purchases.
Specifications:
Dimensions: 73 mm x 51 mm x 26 mm (2.9 in x 2.0 in x 1.0 in)
Weight: 77 g (2.7 oz)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Humidity: 5% to 95% relative humidity, non-condensing
Drop Resistance: Designed to withstand drops of up to 1.5 m (5 ft)
IP Rating: IP53 for environmental sealing
Decode Capability: Reads standard 1D, 2D, Postal and OCR symbologies
Warranty: Two-year factory warranty
Honeywell 3320G-2-N Barcode Scanner Overview
The Vuquest™: 3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner':s sleek and elegant design also blends seamlessly in retail environments, providing superior-performance scanning of all printed barcodes, and digital barcodes on any smart device.
TotalFreedom enables the loading and linking of multiple applications directly onto the scanner, eliminating the need for host system modi cations while offering expanded decoding and data formatting functionality.
A flexible licensing solution allows current scanning needs to be met while protecting the option to upgrade scanning capabilities in the future by simply purchasing a license for the appropriate feature.
Laser-free aiming provides an accurate scan indication, creating a customer-friendly operating environment while removing the risk of eye injury.
Easily scans barcodes directly from mobile device or computer screens, almost as if they were printed on paper.
The intelligent multi-interface design supports all popular interfaces in one device, replacing the time-consuming process of scanning programming barcodes with automatic interface detection.
Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners.The TotalFreedom™: 2.0 second-generation development platform expands scanner functionality by allowing decoding and formatting plug-ins to be loaded directly onto the Vuquest 3320g scanner, enabling enterprises to rapidly support proprietary or newly developed symbologies. The ability to control the triggering of an external device such as a beeper, photo eye or illumination via external I/O capabilities allows the Vuquest 3320g scanner to enter new markets once reserved for expensive industrial products.With its small size, ergonomically friendly thumb-activated button and clearly visible indicator LEDs, the Vuquest 3320g scanner offers a dependable handheld or wearable scanning solution. The Vuquest 3320g scanner also offers universal mounting and robust presentation mode scan performance, making the device an ideal fixed-mount scanning solution for use in light industrial applications and kiosks.
What barcode types can the Honeywell Vuquest 3320g scan?
The Vuquest 3320g is an aggressive area-imaging scanner capable of reading all 1D barcodes, PDF417, and 2D barcodes including QR codes. This versatility makes it ideal for retail and warehouse environments where you need to scan multiple barcode formats on a single device. For a complete listing of all supported barcode symbologies, visit the Honeywell AIDC compliance documentation.
Is the Honeywell 3320g suitable for hands-free scanning?
Yes, the Vuquest 3320g features a hands-free scanning design with a sleek, elegant form factor that blends seamlessly into retail environments. The presentation mode capability allows operators to hold items in front of the scanner for automatic barcode capture without manual trigger activation. This makes it particularly valuable for high-volume scanning operations where efficiency is critical.
Can the Honeywell 3320g scan barcodes on mobile devices?
Yes, the Vuquest 3320g includes mobile phone reading technology that enables you to scan barcodes displayed on mobile device screens. This feature is increasingly important for modern logistics and retail operations where customers or staff may present digital barcodes rather than printed labels.
What connectivity options does the Honeywell 3320g support?
The Vuquest 3320g features intelligent multiple interface design, supporting popular connectivity options on a single device including USB, keyboard wedge, and other standard interfaces. This flexibility allows you to integrate the scanner into various systems without requiring multiple devices. Contact us today to confirm the specific interface configuration available for your application.
What makes the Honeywell 3320g different from other area-imaging scanners?
The Vuquest 3320g combines aggressive scanning performance with a compact, lightweight, and durable portable form factor specifically designed for retail and warehouse environments. Its aggressive imaging capability captures barcodes at various distances and angles, while the elegant design ensures it won't disrupt your workspace aesthetics. We offer this scanner as a reliable solution for general-purpose barcode capture needs.
Does the Honeywell 3320g come with cables included?
The Honeywell 3320g is available as a scanner-only unit without included cables. You'll need to purchase the appropriate interface cable separately based on your connectivity requirements. Visit barcodesinc.com or contact us today to order compatible cables and ensure proper setup for your specific application.
The Honeywell 3320G-2-N Barcode Scanner is also known as
HSM-3320G2N
or 3320G2N.
Full specifications (PDF)
