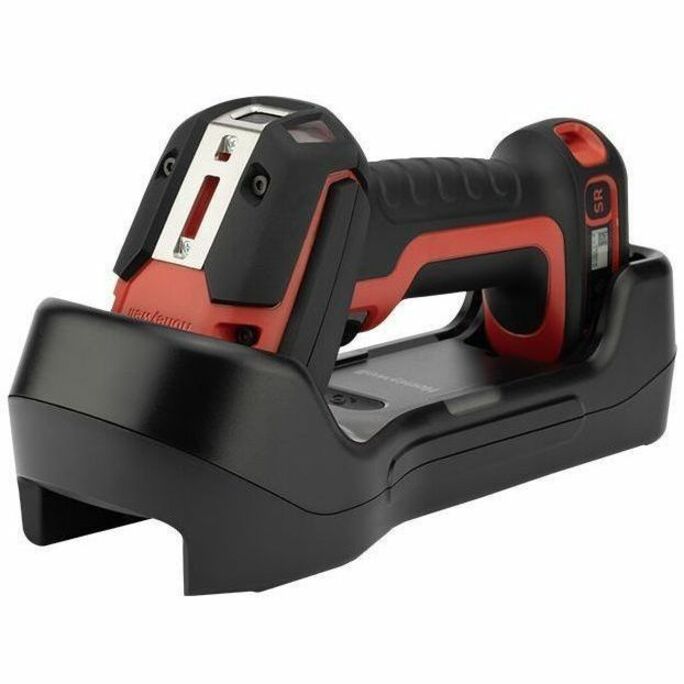

Honeywell Granit Ultra 2105iXLR – Barcode Scanner

Part Number: 2105IXLR-3USB-CLHN
Model: Granit Ultra 2105iXLR
3-year Premium Plus ($158.45)
3-year Premium ($103.75)
No Support
Add to My Shopping List Add to Compare
$1,419.40
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable/Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D: Code 39, code 128, code 93, code 11, code 32 Pharmaceutical, codabar, EAN, UPC, China Post, GS1 databar2D: Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (Han Xin) code, postal code, PDF417, DotCodeDigital Watermarking: DigimarcOCR: OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 point OCR typeface
Light Source
Laser

Product Description:

  Barcode Scanner, Honeywell 2105iXR, Granit Ultra USB Kit: Cordless, Bluetooth, Rugged, 1D/2D, Extreme Long Range, Vibrator, Contact Charging, Red Scanner (2105IXLR-3-CL), Battery (BAT-SCN11), USB Cable (CBL-500-300-S00), Horizontal Base (CCB23-100BT-07N), NA
Explore all Honeywell Granit 2105iXR Barcode Scanners
Add to Quote
Honeywell 2105IXLR-3USB-CLHN Barcode Scanner
Honeywell 2105IXLR-3USB-CLHN Barcode Scanner
Honeywell 2105IXLR-3USB-CLHN Barcode Scanner Honeywell 2105IXLR-3USB-CLHN Barcode Scanner
Full specifications (PDF)

Honeywell Granit 2105iXR Barcode Scanner Model Overview

The Granit™ Ultra 2105iXR Ultra-Rugged Cordless Area-Imaging Scanner sets a new standard in durability and efficiency. Designed for challenging environments like warehouses and distribution centers, this scanner reads both high and low-quality barcodes with remarkable speed, significantly reducing downtime. With a scanning range extending to 33 feet for certain codes, the Granit Ultra ensures seamless operations—no more manual data entry or delays due to damaged barcodes. Its robust construction safeguards against harsh handling and extreme temperatures, allowing for unmatched performance in everyday use.


Key Features
  • Ultra-Durability: Survives drops from 10 ft and tumbles up to 7500 times.
  • High-Speed Processing: 45% faster scanning compared to previous models.
  • Versatile Scanning Range: Reads barcodes from contact to nearly 33 ft.
  • Ergonomic Design: Comfortable for all-day use.
  • Smart Charging Base: Drop-in charging for quick and efficient setup.

Specifications
  • Dimensions: 194.8mm x 76mm x 139.5mm (7.7 in x 3.0 in x 5.5 in)
  • Weight: 425g (15 oz)
  • Battery: 3,300 mAh Li-ion, up to 100,000 scans per charge
  • Operating Temperature: -20°C to 50°C (-4°F to 122°F)
  • Environmental Sealing: IP65 and IP68
  • Scan Performance: Reads standard 1D, 2D, and PDF codes
  • Warranty: Three-year factory warranty
Honeywell 2105IXLR-3USB-CLHN Barcode Scanner Overview

Ultra-Rugged Cordless Area-Imaging Scanner

Granit Ultra scanners expand capabilities and define the next generation of ultra-rugged scanning.

ULTRA SCAN PERFORMANCE

For a scanner to optimize productivity, it should read and transmit common barcodes nearly as fast as the user can pull the trigger, and Granit Ultra is engineered to do just that. Granit Ultra integrates high speed processing, AI(Artificial Intelligence) algorithms, and decoding enhancements to result in an average 45% scanning speed increase vs. Granit XP1, enabling improved productivity

ULTRA DURABILITY

In modern warehouse, distribution center, and manufacturing environments, any scanner must be durable enough to survive harsh operating conditions. Under exactly that kind of rough treatment, Granit is ready to deliver.

ULTRA EASE OF USE

Ready to operate right out of the box for many applications, Granit offers easy custom configuration in the time it takes to scan a barcode. For further workflow improvement, Granit can also read multiple codes in the field of view, organizing and outputting the data in a predefined order using Honeywell's Data Format Editor

The all new charge and communication base is loaded with features to simplify common tasks. Easy drop-in charging makes scanner placement in the cradle fast and efficient for flat work surfaces; engaging the latching mechanisms helps ensure secure retention for vertical or vehicle mounting.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable/Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Code 39, code 128, code 93, code 11, code 32 Pharmaceutical, codabar, EAN, UPC, China Post, GS1 databar

2D:

  • Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (Han Xin) code, postal code, PDF417, DotCode

Digital Watermarking:

  • Digimarc

OCR:

  • OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 point OCR typeface
Light Source:
Laser
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scan Pattern:
Area
Scanner Range:
Ultra Long Range
Scanning Distance:
98.43 ft
Features:
  • Notification LED
  • Beep
  • Vibration
  • Ergonomic Design
  • Data Formatter
Cable Type Included:
USB
Field of View (Horizontal):
45°
Field of View (Vertical):
14°
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:
  • 3m (10 ft): MIL-STD-810G, 25° C (77° F), 55% relative humidity
  • 2.5m (8.2 ft): 20 drops from -20° C to 50° C (4° F to 122° F), 55% relative humidity
  • 2m (6.5 ft): 50 drops from -30° C to 50° C (-22° F to 122° F), uncontrolled relative humidity
Minimum Print Contrast:
15%
Minimum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (Code 39):
100 mil
Minimum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (DataMatrix):
100 mil
Image Sensor Resolution:
1900 x 800
Illumination Type:
LED
Illumination Color:
Green
Air Electrostatic Discharge (+/-):
20kV
Contact Electrostatic Discharge (+/-):
8kV
AI-powered:
Yes
Network & Communication
Bluetooth:
Yes
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
  • USB
  • Serial
  • Keyboard Wedge
Power Description
Maximum Operating Power Consumption:
7.50 W
Standby Current:
120 mA
Battery Information
Battery Included:
Yes
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3300 mAh
Maximum Battery Run Time:
14 Hour
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Color Family:
Red
Product Color:
Red
Durability:
Drop Resistant
Height:
5.5"
Width:
3"
Length:
7.7"
Weight (Approximate):
14.99 oz
Miscellaneous
Package Contents:
  • GRANIT ULTRA 2105iXLR Barcode Scanner
  • Battery (Battery-SCN11)
  • USB Cable (CBL-500-300-S00)
  • Horizontal Base(CCB23-100BT-07N)
Ingress Protection (IP) Rating:
  • IP65
  • IP68
Application/Usage:
  • Warehouse
  • Distribution
  • Manufacturing
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell 2105IXLR-3USB-CLHN Barcode Scanner is also known as HSM-2105IXLR3USBCLHN or 2105IXLR3USBCLHN.
