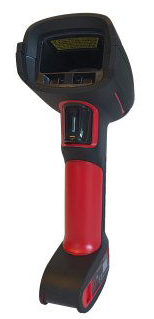

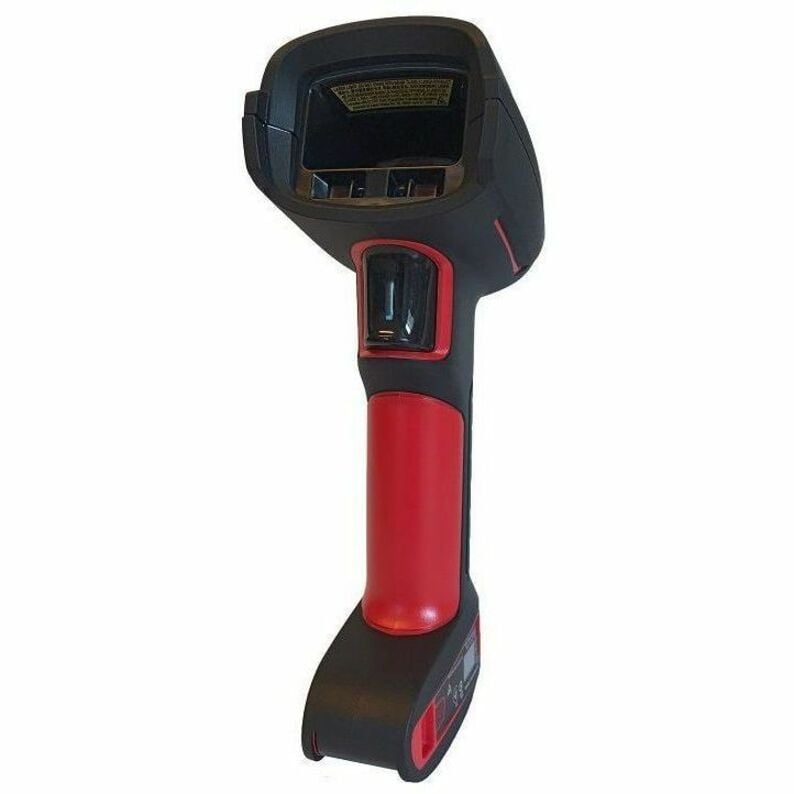

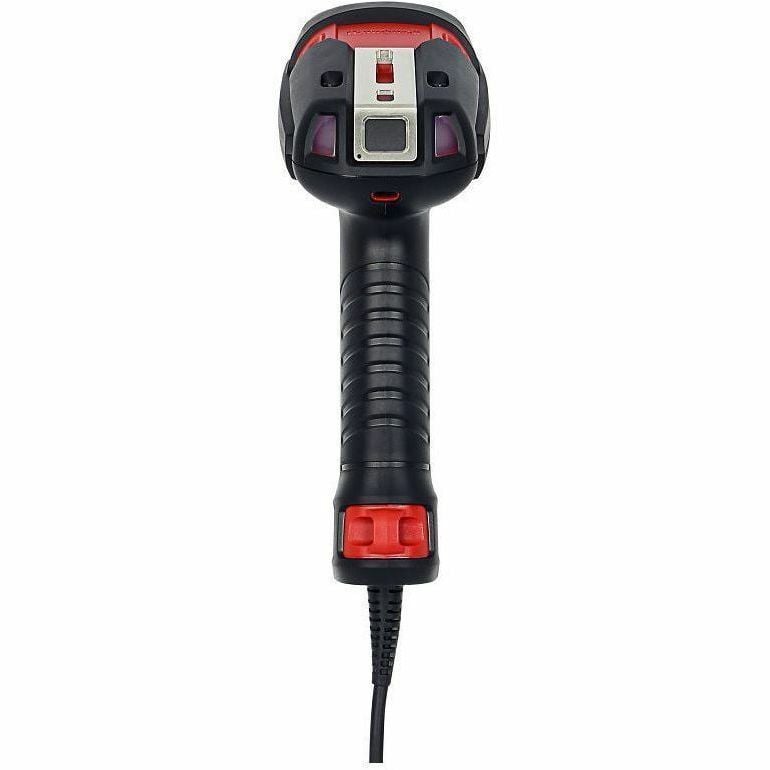

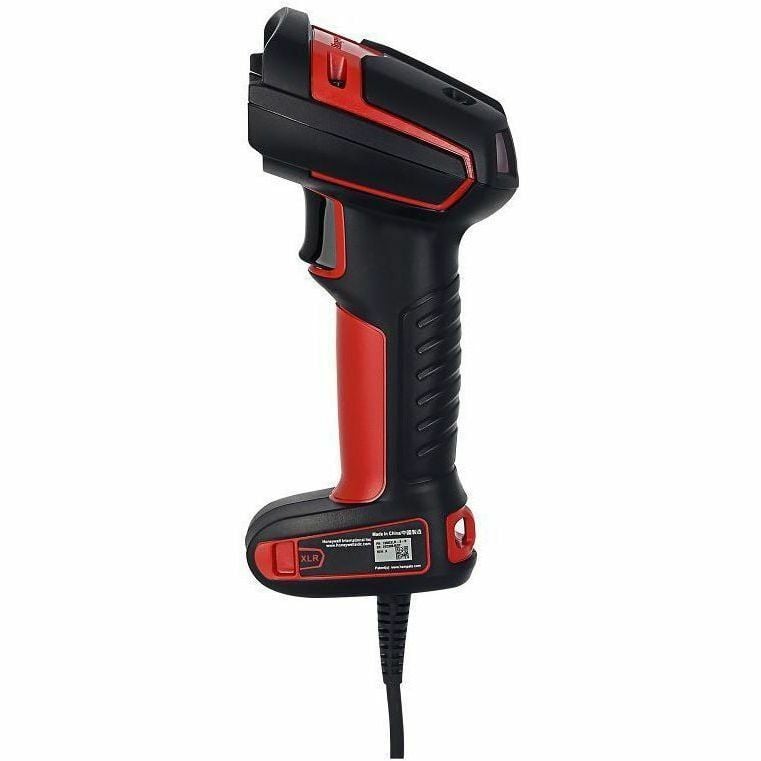

Honeywell Granit XP 1990iXLR Barcode Scanner Model Overview
The GRANIT™ XP 1990iXLR Ultra-Rugged Long Range Industrial Handheld Scanner is designed to excel in the toughest environments, ensuring optimum performance for warehouse and manufacturing workflows. With Honeywell’s advanced XLR technology, this scanner offers exceptional depth of field, allowing it to read barcodes at impressive distances of up to 24 meters. Engineered to withstand drops of up to 3 meters and 7,000 tumbles, the Granit XP combines durability with high-resolution scanning capabilities, making it an essential tool for maximizing productivity and minimizing downtime.
Key Features
Extreme Ruggedness: Survives 3 m (10 ft) drops and 7,000 tumbles.
High-Performance Scanning: Reads damaged and low-quality barcodes with ease.
Long Range Capability: Reads UPCs at 2 m (6.6 ft) and 100 mil codes at 24 m (79 ft).
Dust and Moisture Protection: IP67 rated for reliable performance in harsh conditions.
Makes Data Entry Fast: Optimizes productivity and reduces service costs.
Specifications
Mechanical:
Dimensions (L x W x H): 192 mm x 76 mm x 100 mm (7.6 in x 3.0 in x 3.9 in)
Weight - Corded: 320 g (11.3 oz)
User Indicators: Good Decode LEDs, Beeper (adjustable tone and volume), Vibration (adjustable)
Environmental:
Operating Temperature: -30°C to 50°C (-22°F to 122°F)
Humidity: Up to 95% relative humidity (non-condensing)
The Granit™ XP 1990iXLR is designed to offer premium scanning performance and full range scanning depth to drive efficiency and reliability in mission-critical applications. Its high durability supports low TCO. The new Granit™ XLR is form-fit for a variety of workflow applications from no-sacrifice near field scanning to extreme long range scanning operations enhancing workflow productivity.
The Granit™ XP XLR model is ideally suited to normal, near-field scanning operations on 1D and 2D barcodes, plus maximum range scanning of UPC up to 2 m (6.6 ft) and 100 mil codes up to 24 m (79 ft).
Granit™ XP provides premium performance scanning, even on damaged and low-quality barcodes. High-quality barcodes scan and transmit quickly.
The XLR model provides superior indoor and outdoor aiming visibility. The brighter, more visible aimer offers more accurate, intuitive aiming across the typical range of lighting conditions. The daylight aiming system offers accurate aiming in bright sunlight.
Built to survive harsh treatment including 3 m (10 ft) drops, 7,000 1 m (3.3 ft) tumbles, operating temperatures from -30°C to 50°C (-22°F to 122°F) and IP67 sealing, Granit XLR helps reduce service costs and increases device uptime.
This generation of Granit™ XP scanners continue to expand capabilities and redefine ultra-rugged scanning. With a 10' drop spec, Granit™ XP is engineered to keep on working after the impact of drops from loading docks, fork trucks, and picking trucks. The 1 m (3.3 foot) tumble test indicates long term durability with daily knocks and drops from workstation or waist height.A best-in-class 7,000 tumble specification helps ensure Granit™ scanners will be ready to work for the long term. And IP67 dust and moisture sealing protect scanning performance under harsh treatment. Granit™ 1990iXLR model begins with no-sacrifice near field scanning and expand to read UPC codes to 2 m (6.6 ft) and 100 mil (2.54mm) rack labels at 24 m (79 ft). Packed with essential reliable aiming features, the XLR laser aimer is visible in multiple lighting conditions. The daylight aiming system offers accurate aiming in bright sunlight with an easy to view green aiming solution. Created for applications where far range high speed scanning is needed to maximize productivity, and where durability is non-negotiable to help lower total cost of ownership, the Granit™ XP 1990iXLR scanner offers the optimal solution.
What is the maximum scanning range of the Honeywell 1990iXLR?
The Honeywell Granit XP 1990iXLR offers exceptional range capabilities, reading UPCs at 6.6 feet and 2.5 millimeter rack labels at 79 feet with precision. This ultra-long range makes it ideal for warehouse and logistics environments where scanning distance is critical to operational efficiency.
Is the Honeywell 1990iXLR suitable for harsh warehouse environments?
Yes, the 1990iXLR is built for demanding conditions with a deeply recessed, scratch and impact resistant window that prevents dust and moisture from entering the case. The scanner features IP67 and IP65 environmental sealing, and can withstand 50 drops from 6 feet and 7,000 tumbles per IEC specification, making it highly durable for warehouse and manufacturing use.
What barcode formats does the Honeywell 1990iXLR read?
The Honeywell Granit XP 1990iXLR is a 1D/2D barcode scanner capable of reading both one-dimensional and two-dimensional barcodes. This versatility allows it to handle standard UPC codes as well as more complex 2D formats used in modern logistics and inventory systems.
What connectivity options are available with this scanner?
The 1990iXLR-3SER-N model is a tethered, serial kit that includes an RS232 industrial grade cable (Part# CBL-020-300-C00) for connection to host systems. The scanner supports RS-232 TTL interface for reliable data transmission in industrial environments.
What is the XLR focus technology and how does it benefit scanning performance?
The XLR focus technology provides an enhanced depth of field range, allowing the scanner to maintain sharp focus across varying distances. This advanced focusing capability enables the 1990iXLR to read barcodes at both very close range (UPCs at 6.6 feet) and extreme distances (rack labels at 79 feet) with precision and consistency.
Can the Honeywell 1990iXLR operate in extreme temperature conditions?
Yes, the 1990iXLR is designed for extreme environments with an operating temperature range of -30°C to 50°C (-22°F to 122°F) and storage temperature capability from -40°C to 70°C (-40°F to 158°F). This wide temperature tolerance makes it suitable for cold storage facilities, outdoor logistics operations, and heated warehouse environments.
The Honeywell 1990iXLR-3SER-N Barcode Scanner is also known as
HSM-1990IXLR3SERN
or 1990IXLR3SERN.
Full specifications (PDF)
