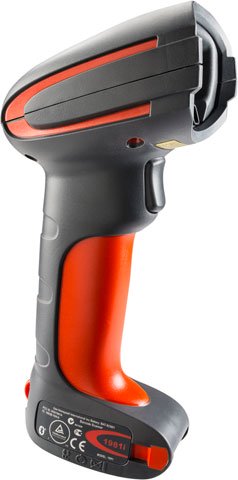

Honeywell Granit 1981i – Barcode Scanner – Cordless – 1D

Part Number: 1981IFR-3USB-5-N
Model: Granit 1981i
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Cordless
Form Factor
Handheld
Interface Options
Bluetooth, USB
Scanner Capability
1D

Product Description:

  Cordless Scanner, Honeywell Granit 1981i, 1D/2D Imager, General Purpose, USB Type A 3M Straight Cable/5V Host Power Cable, Handheld, Charge and Communication Base/USB Type A 3M Straight Cable/5V Host Power/Vibrator, Red
Explore all Honeywell Granit 1981i Barcode Scanners
Add to Quote
Honeywell 1981IFR-3USB-5-N Barcode Scanner
Honeywell 1981IFR-3USB-5-N Barcode Scanner
Honeywell 1981IFR-3USB-5-N Barcode Scanner
Honeywell 1981IFR-3USB-5-N Barcode Scanner
Honeywell 1981IFR-3USB-5-N Barcode Scanner
Honeywell 1981IFR-3USB-5-N Barcode Scanner
Honeywell 1981IFR-3USB-5-N Barcode Scanner Honeywell 1981IFR-3USB-5-N Barcode Scanner Honeywell 1981IFR-3USB-5-N Barcode Scanner Honeywell 1981IFR-3USB-5-N Barcode Scanner Honeywell 1981IFR-3USB-5-N Barcode Scanner Honeywell 1981IFR-3USB-5-N Barcode Scanner
Full specifications (PDF)

Honeywell Granit 1981i Barcode Scanner Model Overview

The Granit 1981i Industrial Full-Range Area-Imaging Scanner from Honeywell is designed for rugged environments, providing superior barcode scanning capabilities. From reading low-quality 1D and 2D codes from distances of 6 inches to over 50 feet, this wireless scanner ensures maximum productivity for operational efficiency. With Bluetooth™ technology for wireless connectivity up to 100 meters and a built-to-last design that withstands extreme conditions, the 1981i is the ideal choice for warehouses and distribution centers.

Key Features
  • Full-Range Area-Imaging Performance: Scans virtually all 1D and 2D barcodes from 6 in (15 cm) to over 50 ft (15 m) away.
  • Built Granit Tough: IP65 rated; withstands 5,000 tumbles from 3.2 ft (1 m) and 50 drops from 6.5 ft (2 m).
  • Easy to Use: Equipped with a laser-spot aimer and omni-directional scanning for effortless operation.
  • Efficient Wireless Performance: Bluetooth™ technology providing freedom of movement up to 100 meters (330 feet).
  • Single Scanning Solution: Consolidates multiple scanners in typical warehouse settings.


Specifications
  • Wireless: 2.4 to 2.5 GHz, Bluetooth v2.1, Class 1 (100m range)
  • Data Rate: Up to 1 Mbps
  • Battery: 2000 mAh Li-ion minimum
  • Dimensions: 133 mm x 75 mm x 195 mm (5.2" x 2.9" x 7.6")
  • Operating Temperature: -20°C to 50°C (-4°F to 122°F)
  • Drop Resistance: 50 2m (6.5') drops to concrete
  • Tumble Rating: 5,000 1m (40") tumbles
  • Environmental Sealing: IP65
  • Warranty: 3 years (1 year battery warranty)
Honeywell 1981IFR-3USB-5-N Barcode Scanner Overview

The Granit™: 1981i (wireless) area-imaging scanners are capable of reading 1D and 2D barcodes from 15 cm (6 in) to 15 m (50 ft). They':re packed with technologies that make them easy to use and take the guesswork out of scanning at extended ranges. And Granit 1981i scanners are IP65 rated to withstand harsh environments.

  • Tested to withstand the toughest environments, the Granit 1981i scanner is rated IP65 and can withstand 5,000 tumbles from 1 m (3.3 ft) and 50 drops to concrete from 2 m (6.5 ft).
  • The Granit 1981i scanner can replace and consolidate multiple purpose-built scanners in typical distribution center and warehouse environments, providing a single scanning solution.
  • Bluetooth wireless technology provides freedom of movement up to 100 m (330 ft) from the base and reduces interference with other wireless systems.
  • A laser-spot aimer, omnidirectional scanning and features such as centering take the guesswork out of scanning at extended ranges.
  • The Granit 1981i scanner scans low-density (100 mil) codes out to 16 m (52 ft) and high-density (2 mil) codes at close range -: and everything in between.
Granit 1981i (wireless) full-range area-imagers are capable of reading both 1D and 2D barcodes across a wide range of distances. From poor quality 2 mil codes scanned at close range to 100 mil codes hanging from warehouse rafters scanned at ranges of 16 m (52 ft), the Granit series is built to perform.With an unmatched range and the option of wireless freedom, Granit scanners maximize operator productivity in the harshest environments.Granit 1981i scanners are packed with technologies that make them simple to use -: technologies like an integrated laser pointer aiming system with auto-illumination, omnidirectional reading capability, and support for centering to take the guesswork out of scanning at extended ranges.Operators of fork trucks equipped with vehicle-mounted mobile computers, such as the Honeywell Thor™: series, will appreciate how the full-range scanning capability allows them to remain seated -: and hence more productive -: while scanning barcodes at extended ranges. And with Bluetooth®: technology, they':ll enjoy complete freedom of movement up to 100 m (328 ft) from the base.Like the entire Granit series, 1981i scanners deliver best-in-class durability with an IP65-rated housing. In harsh distribution center and warehouse environments, these scanners maximize your team':s productivity and lower the overall cost of ownership.
Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Image Sensor Type:
Imager
Scanner Range:
Extended Range
Scanning Distance:
49.21 ft
Cable Type Included:
USB
Field of View (Horizontal):
13°
Field of View (Vertical):
8°
Reading Angle (Skew):
80°
Reading Angle (Pitch):
70°
Maximum Ambient Light:
100000 lux
Drop Specification:

50 2 m 6.5 ft drops to concrete at -20 °C -4 °F

Minimum Element Resolution (Code 39):
7.5 mil
Maximum Element Resolution (Code 39):
100 mil
Minimum Element Resolution (DataMatrix):
7.5 mil
Maximum Element Resolution (DataMatrix):
100 mil
Network & Communication
Bluetooth:
Yes
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Product Color:
Red
Height:
7.7"
Width:
3"
Length:
5.2"
Weight (Approximate):
14.82 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP65
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:

Battery warranty:1-year

Item Numbers
UNSPSC: 43211701
