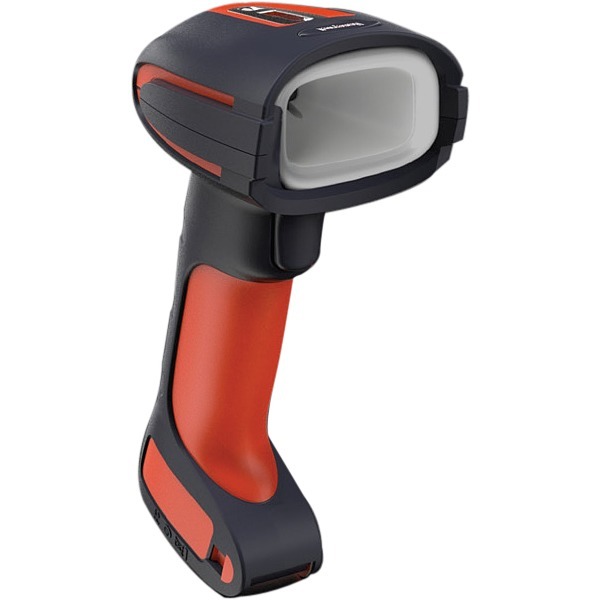

The direct part marks commonly used for product tracking and traceability in industries such as automotive, electronics, pharmaceutical, defense and aerospace are tough for conventional scanners. Not so for the super-tough Granit™ 1920i industrial areaimaging scanner. Part of the durable, market-proven Granit family, the Granit 1920i scanner captures virtually any direct part mark with ease, along with standard 1D and 2D barcodes on printed labels.
The secret lies in the Granit 1920i scanner's highly innovative lighting system, which allows the imager to optimally illuminate marks of any type, on any surface. Low-angle, direct lighting provides the uniform illumination required for dot peen and laser-etched marks. An integrated diffuser delivers the soft, indirect light required for marks on shiny, round or otherwise highly reflective surfaces.
Powered by Honeywell's revolutionary decoding architecture, the Granit 1920i scanner provides great scanning performance to read every type of direct part mark and ensure high first-pass read rates on even the toughest marks - regardless of size, surface, marking method or contrast.
The scanner is also capable of reading standard 1D and 2D barcodes on printed labels, delivering additional value - a single scanner to address your end-to-end scanning requirements across the complete workflow, from the production line to the warehouse.
FEATURES & BENEFITS
An innovative multiillumination system enables scanning of virtually any type of direct part mark - regardless of size, marking method or contrast.
The Honeywell specialized DPM decoder assures high and accurate reading yields on difficult direct part marks.
With its ability to read standard 1D and 2D barcodes on printed labels, the scanner provides companies with maximum value: a single solution to meet their end-to-end scanning needs.
Tested to withstand the toughest environments: rated IP65 and can withstand 5,000 tumbles from 1 m (3.3 ft) and 50 drops to concrete from 2 m (6.5 ft) - and temperatures as low as -30°C (-22°F).
A laser-spot aimer, omnidirectional scanning and features such as automatic cycling through multiple illumination modes make it easy for operators to target and use the scanner.
What barcode symbologies does the Honeywell CV-1200G-1D scanner read?
The Honeywell CV-1200G-1D reads standard 1D and GS1 DataBar symbologies, including PDF417 and 2D codes. It excels at decoding difficult-to-read barcodes—whether poorly printed, smudged, or faded—and handles high-density barcodes with resolution down to 3.5 mil, eliminating the need for specialty scanners. We offer this model as part of our complete AIDC solutions for warehouse and logistics operations.
What connectivity options are available with this Honeywell barcode scanner?
The CV-1200G-1D comes with multiple host system interfaces including USB (HID Keyboard, Serial, IBM OEM), RS-232 (TTL +5V), and KBW connections. The TSA version we offer includes a USB Type A 3m straight cable for immediate deployment. Additional connectivity via RS-232C (+/-12V) and IBM RS485 is supported through adapter cables available from our team.
Is the Honeywell CV-1200G-1D durable enough for warehouse environments?
Yes—the CV-1200G-1D is engineered for warehouse durability with an IP42 environmental sealing rating and is designed to withstand 30 drops to concrete from 1.5 meters. It features a shock-mounted PCB for greater impact resistance, a recessed trigger button protected by integrated rubber comold, and a scratch-resistant glass window. Operating temperatures range from 0°C to 50°C (32°F to 122°F), and it includes a 5-year factory warranty.
What are the power requirements for the CV-1200G-1D scanner?
The scanner operates on 5V +/- 5% input voltage with typical operating power consumption of 700mW (140 mA) and standby power of 350mW (70 mA). Its efficient power management minimizes battery drain in mobile operations, making it suitable for all-day warehouse and logistics use. Contact us today for integration guidance with your existing power infrastructure.
What's included in the USB Kit version of the CV-1200G-1D?
The TSA version USB Kit includes the red 1D/2D/DPM scanner (model 1920IDPM-3), a USB Type A 3m straight cable (CBL-500-300-S00-01), and a vibrator for tactile feedback. This complete kit is ready for immediate deployment in warehouse, retail, or logistics environments. Visit barcodesinc.com to configure additional accessories or contact our team for custom kit requirements.
How does the CV-1200G-1D perform in bright lighting conditions?
The CV-1200G-1D operates reliably across light levels from 0 to 100,000 lux, including direct sunlight scanning. Its advanced optics maintain consistent scan performance in outdoor dock areas, brightly lit warehouses, and variable lighting conditions common in logistics operations. This makes it an excellent choice for facilities requiring both indoor and outdoor barcode scanning capabilities.
The Honeywell CV-1200G-1D Barcode Scanner is also known as
HSM-1920IDPM3USBG
or 1920IDPM3USBG.
