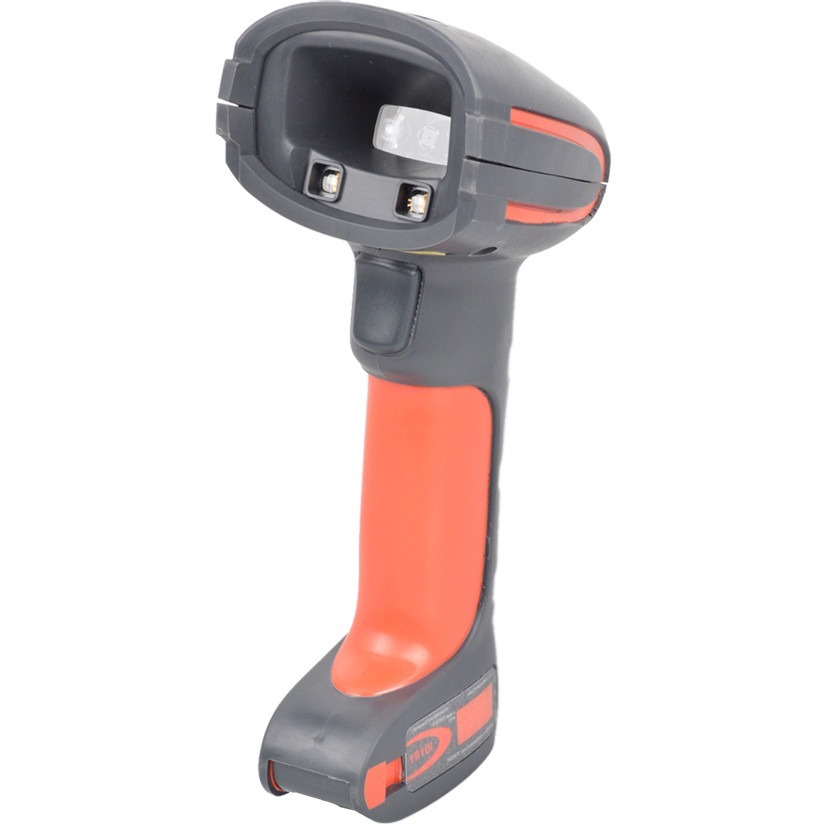

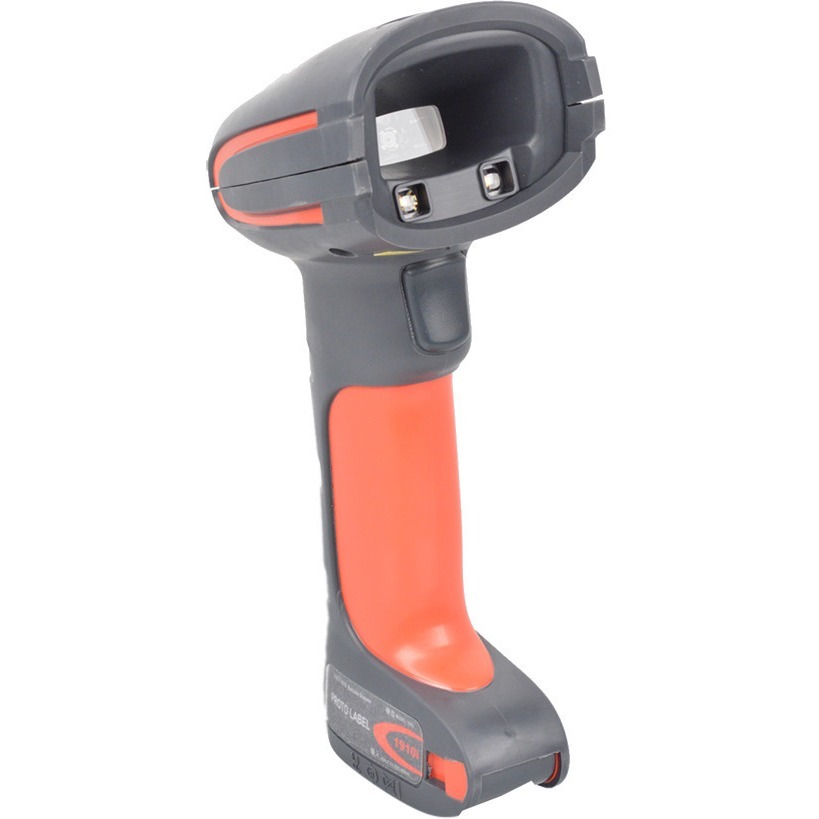

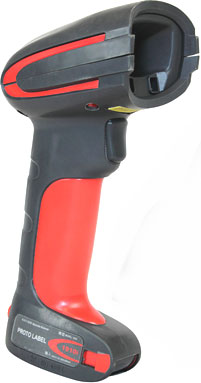

Honeywell Granit 1910i – Barcode Scanner

The Granit™ 1910i industrial-grade area-imaging scanner is engineered for maximum durability and exceptional performance in the toughest working conditions. With an IP65 rating, it survives harsh environments, enduring 5,000 tumbles and 50 drops from heights of up to 6.5 feet, even in extreme cold. Equipped with Honeywell's Adaptus™ 6.0 imaging technology, the Granit 1910i excels at reading even poorly printed or damaged bar codes, allowing operators to maintain high productivity without interruptions. Bright LEDs, a loud beeper, and a vibrating feedback mechanism ensure reliable decode confirmation, making it the ultimate choice for industrial applications.

Key Features

• Class-Leading Durability: Withstands 5,000 tumbles and 50 drops from 6.5' (2 m) at -30°C (-22°F).
• Optimized for Scanning-Intensive Applications: Aggressive bar code reading and enhanced feedback mechanism.
• TotalFreedom™ 2.0: Load and link multiple applications for improved functionality.
• Outstanding Scan Performance: Reads poorly printed and damaged bar codes effortlessly.
• Extended Linear Depth of Field: Scans 20 mil linear codes from up to 29.5" (75 cm).
• Remote Management: Remote MasterMind™ software for easy network management.

Specifications

• Dimensions: 133 mm x 75 mm x 195 mm (5.2" x 2.9" x 7.6")
• Weight: 300 g (10.6 oz)
• Input Voltage: 4.0 to 5.5 VDC
• Operating Temperature: -30°C to 50°C (-22°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: Up to 95% relative, non-condensing
• Drop: Survives 50 drops from 6.5' (2 m)
• Tumble: Designed for 5,000 tumbles of 3.3' (1 m)
• Environmental Sealing: IP65 rated
• Warranty: 3 years factory warranty

The Granit™ 1910i industrial-grade area-imaging scanner is designed to withstand the varied demands that exist in harsh working environments. Featuring a custom-built housing that is redefining the standard for scanner reliability, the IP65-rated Granit 1910i scanner is built to survive 5,000 1 m (3.3 ft) tumbles and 50 drops to concrete from 2 m (6.5 ft), even at -30°C (-22°F). As a result, businesses deploying this industry-leading offering can expect to experience minimal device downtime and a lower overall cost of ownership.

Powered by sixth-generation Honeywell Adaptus™ imaging technology and its revolutionary decoding architecture, the Granit 1910i scanner provides users with the same exceptional barcode reading performance as the best-in-class Xenon™ series of area-imaging scanners. From poorly printed and damaged codes to low-density linear codes, the Granit 1910i scanner is built to read virtually all barcodes with ease - supporting maximum operator productivity with its enhanced illumination, crisp laser aiming and extended depth of field.

Additionally, loud machinery and poor lighting conditions often pose a challenge for operators who rely on scanner feedback as confirmation of "good reads." The Granit 1910i scanner meets this challenge with bright LEDs, enhanced beeper volume and vibrating feedback response - ensuring rapid decode feedback and eliminating redundant scanning.

Created specifically for applications in which high-performance scanning is expected and durability is highly valued, the Granit 1910i scanner is the optimal solution for businesses operating in unpredictable conditions.

FEATURES & BENEFITS

The custom-built IP65-rated housing is able to withstand 5,000 1 m (3.3 ft) tumbles and survive 50 drops from 2 m (6.5 ft) at -30°C (-22°F), reducing service costs and increasing device uptime.

Adaptus 6.0 imaging technology provides aggressive barcode reading and unrivaled accuracy, while the scanner feedback is enhanced for use in extreme industrial environments.

The TotalFreedom™ area-imaging development platform enables the loading and linking of multiple applications to enhance image decoding, data formatting and image processing - eliminating the need for host system modifications.

With outstanding performance on poor-quality and damaged barcodes, the scanner helps users maintain productivity by providing a worry-free scanning solution that minimizes manual entry.

Scans out-of-reach items with ease and allows users to scan 20 mil linear codes out to 75 cm (29.5 in) without sacrificing performance on 2D codes.
