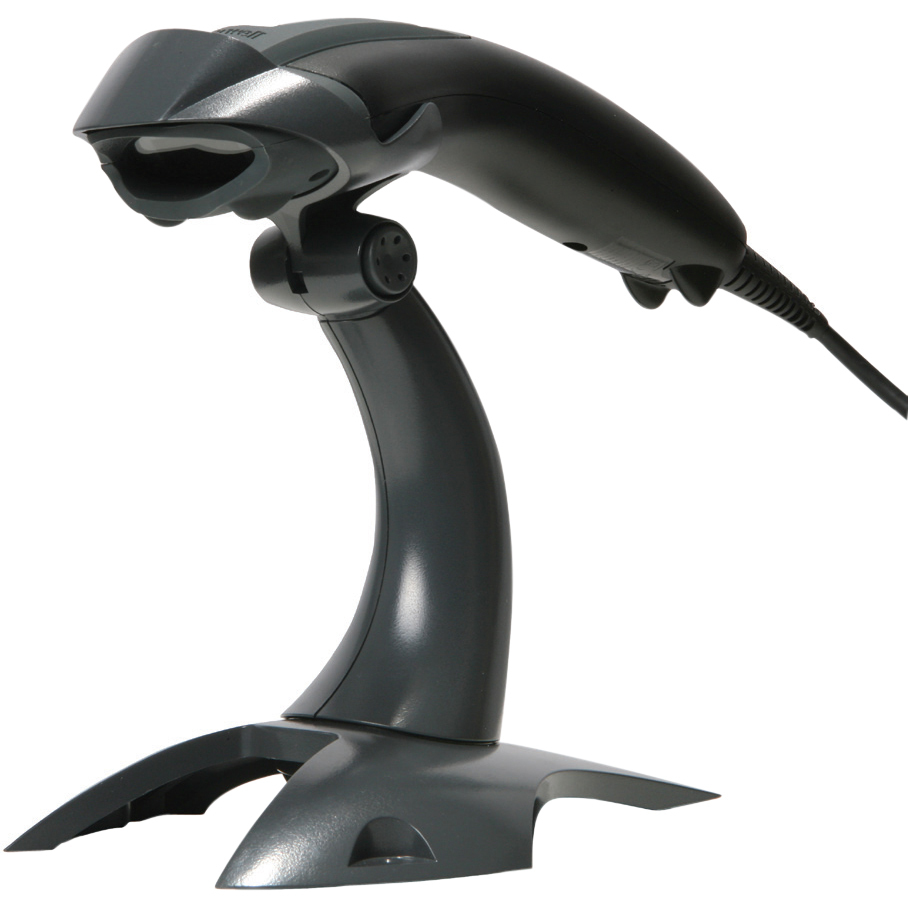

The Honeywell Voyager 1400g Area-Imaging Scanner is designed to adapt to the evolving needs of businesses, providing exceptional performance for reading 2D and linear bar codes. This reliable scanner combines versatility with affordability, enabling users to capture vast amounts of data with ease, whether from printed bar codes or mobile screens. With the ability to upgrade scanning capabilities as requirements change, the Voyager 1400g is an investment that ensures top-notch performance without the need for expensive additional hardware.
Key Features
Reliable Data Collection: Omnidirectional scanning of virtually all linear and 2D bar codes, including mobile and low-quality bar codes.
Remote MasterMind™ Ready: Significantly lowers ownership costs with a turnkey remote management solution.
Future Proof: Affordable scanning for current and future barcode needs all in one device.
Flexible Licensing Solution: Basic functionality with the option to purchase software licenses for advanced features as needed.
Specifications
Mechanical:
Dimensions: 43 mm x 180 mm x 66 mm (1.7" x 7.1" x 2.6")
Weight: 119 g (4.2 oz)
Electrical:
Input Voltage: 4.0 to 5.5 VDC
Operating Power: 2 W (400mA @ 5 VDC)
Standby Power: 0.45 W (90mA @ 5 VDC)
Environmental:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 0% to 95% relative, non-condensing
Drop: Withstands 30 drops from 1.5 m (5 ft) onto concrete
Environmental Sealing: IP42
Light Levels: 0 to 100,000 lux (9,290 foot-candles)
Scan Performance:
Scan Pattern: Area Image (640 x 480 pixel array)
Motion Tolerance: Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
Scan Angle: Horizontal 42.4°; Vertical 30.8°
Symbol Contrast: 35% minimum reflectance difference
Pitch, Skew: 60°, 70°
Decode Capability:
1400g1D: All standard 1D symbologies
1400gPDF: All standard 1D and PDF417 symbologies
1400g2D: All standard 1D, PDF417 and 2D symbologies
Warranty: 5 year factory warranty
Honeywell 1400GPDF-2USB Barcode Scanner Overview
Honeywell's Voyager 1400g is the ultimate 2D barcode scanner. This linear imager is capable of reading even poor quality and mobile 2D barcodes. 2D barcode scanners are becoming increasingly popular across a wide range of industries for a number of reasons. Enterprises have a growing need to capture large amounts of data, despite space constraints, while others are being required to read 2D barcodes due to government regulations or supplier mandates. An even larger group of enterprises simply have the desire to leverage emerging trends that require linear imagers with advanced area-imaging technology, without needing to purchase additional scanning hardware. The 1400g's features go above and beyond in meeting 2D scanning needs.
RS-232 (+5V signals), black, DB-9 Male, 3m (9.8'), coiled, external power with option for host power on pin 9 for connection to Wincor Beetle. Non-Cancelable/Non-Returnable.
Charge Only Cradle / Base (No Communication), Single Slot, Presentation style for hands free scanning, Compatible with Honeywell Xenon 1902 and Voyager 1452g. Power supply Purchased Separately (46-00525-6).
4-Bay Battery Charger. Includes North American desktop power supply, two mounting screws and instructions. Compatible with Honeywell 1202g, 3820, 3820I, 4820, 4820i, 1902, and 19011i Lithium Batteries. US Plug (Part# 50122315-001) sold separately.
4-Bay Battery Charger for use with Granit 1911i, Voyager 12xxg, Xenon 1902, 1952, Granit 1981i, Voyager 1452g, 1472g,3820, 3820I, 4820, 4820I, and 6320DPM scanners. Charges the Lithium-ion Batteries outside of the scanner. Includes North America Wallmount Power supply, Two Mounting Screws, and Instructions.
In Stock
$592.79
Top General Software Purchased With Honeywell 1400GPDF-2USB
Remote MasterMind - 1D or 2D Scanning Device Maintenance & Support Extension - one year term maintenance and support extension per managed scanner (must be ordered with matching new client license) to obtain this special pricing.
Charge Only Cradle / Base (No Communication), Single Slot, Presentation style for hands free scanning, Compatible with Honeywell Xenon 1902 and Voyager 1452g. Power supply Purchased Separately (46-00525-6).
What barcode symbologies does the Honeywell 1400g scanner support?
The Honeywell 1400g supports all standard 1D symbologies including UPC, Code 128, and more. The 1400g2D variant we offer also decodes PDF417 and 2D symbologies like QR codes, making it ideal for enterprises that need versatile area imaging technology today or may require it in the future.
What is included in the Fargo DTC1250e bundle?
The Fargo 051608 bundle includes the DTC1250e ID card printer system along with Asure ID software and an application package (AP). This complete solution is designed to get small-to-medium businesses up and running with full-color ID card printing right out of the box. Contact us today to learn more about what's included in this bundle.
Is the Honeywell 1400g compatible with USB connections?
Yes, the Honeywell 1400GPDF-2USB model features USB connectivity as its primary interface. It also supports keyboard wedge, RS232, and IBM 46xx (RS485) interfaces, giving you flexibility to integrate with various warehouse management and point-of-sale systems.
Is the Fargo DTC1250e suitable for small businesses?
Yes, the DTC1250e is specifically designed for small-to-medium businesses that need efficient, budget-friendly ID card printing. The system provides maximum efficiency in a sleek, user-friendly design, making it an ideal solution for organizations looking to print full-color plastic ID and technology cards without significant capital investment. Visit barcodesinc.com to explore this printer for your business needs.
What is the scanning range and motion tolerance of the 1400g?
The 1400g features an area image scan pattern with a 640 x 480 pixel array and can handle motion tolerances up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus. It has a horizontal scan angle of 42.4° and vertical scan angle of 30.8°, providing excellent coverage for retail and warehouse environments.
What types of cards can the Fargo DTC1250e print?
The DTC1250e prints full-color plastic ID cards and technology cards, making it versatile for employee badges, access cards, and other identification applications. The printer delivers high-quality color output on a budget, making it cost-effective for businesses of all sizes within the small-to-medium range.
Can the Honeywell 1400g withstand warehouse drop and environmental conditions?
The 1400g is engineered for durability with an IP42 environmental sealing rating and is designed to withstand 30 drops from 1.5 meters (5 feet) to concrete. It operates reliably in temperatures from 0°C to 40°C and humidity levels up to 95% non-condensing, making it suitable for demanding warehouse and retail environments.
How much maintenance does the Fargo DTC1250e require?
The DTC1250e is virtually maintenance-free, which means you can focus on your operations rather than printer upkeep. This low-maintenance design helps reduce operational costs and downtime, making it an efficient choice for busy organizations. We offer this printer to help streamline your ID card production workflow.
What warranty does the Honeywell 1400g include?
The Honeywell 1400g comes with a 5-year factory warranty, demonstrating Honeywell's confidence in the quality and reliability of this area imaging scanner. This extended coverage provides peace of mind for your enterprise investment.
What software comes with the Fargo DTC1250e bundle?
The bundle includes Asure ID software, which provides professional ID card design and management capabilities. Combined with the application package (AP), you have a complete software solution to design, manage, and print your ID cards efficiently. Contact us today for details on software features and licensing.
What are the power requirements for the Honeywell 1400g scanner?
The 1400g requires an input voltage of 4.0 to 5.5 VDC with operating power consumption of 2 W (400mA @ 5 VDC) and standby power of 0.45 W (90mA @ 5 VDC). This low power draw makes it efficient for continuous warehouse operations and reduces strain on your power infrastructure. Contact us today to learn more about integrating the 1400g into your AIDC system.
Is the Fargo DTC1250e user-friendly?
Yes, the DTC1250e features a sleek, user-friendly design that makes it accessible for operators of all skill levels. The intuitive interface combined with the included Asure ID software ensures that your team can quickly learn to produce professional-quality ID cards. We offer comprehensive support to help you get the most from your system.
The Honeywell 1400GPDF-2USB Barcode Scanner is also known as
HSM-1400GPDF-2USB
or 1400GPDF2USB.
Full specifications (PDF)
