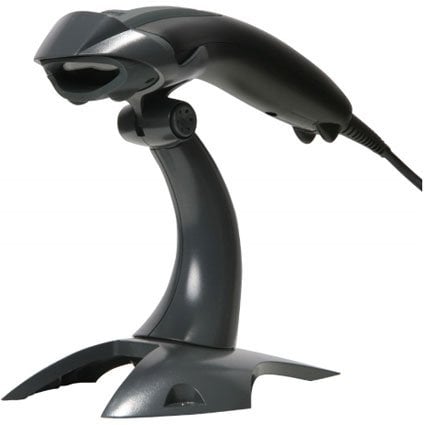

The Honeywell Voyager 1400g Area-Imaging Scanner is designed to adapt to the evolving needs of businesses, providing exceptional performance for reading 2D and linear bar codes. This reliable scanner combines versatility with affordability, enabling users to capture vast amounts of data with ease, whether from printed bar codes or mobile screens. With the ability to upgrade scanning capabilities as requirements change, the Voyager 1400g is an investment that ensures top-notch performance without the need for expensive additional hardware.
Key Features
Reliable Data Collection: Omnidirectional scanning of virtually all linear and 2D bar codes, including mobile and low-quality bar codes.
Remote MasterMind™ Ready: Significantly lowers ownership costs with a turnkey remote management solution.
Future Proof: Affordable scanning for current and future barcode needs all in one device.
Flexible Licensing Solution: Basic functionality with the option to purchase software licenses for advanced features as needed.
Specifications
Mechanical:
Dimensions: 43 mm x 180 mm x 66 mm (1.7" x 7.1" x 2.6")
Weight: 119 g (4.2 oz)
Electrical:
Input Voltage: 4.0 to 5.5 VDC
Operating Power: 2 W (400mA @ 5 VDC)
Standby Power: 0.45 W (90mA @ 5 VDC)
Environmental:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 0% to 95% relative, non-condensing
Drop: Withstands 30 drops from 1.5 m (5 ft) onto concrete
Environmental Sealing: IP42
Light Levels: 0 to 100,000 lux (9,290 foot-candles)
Scan Performance:
Scan Pattern: Area Image (640 x 480 pixel array)
Motion Tolerance: Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
Scan Angle: Horizontal 42.4°; Vertical 30.8°
Symbol Contrast: 35% minimum reflectance difference
Pitch, Skew: 60°, 70°
Decode Capability:
1400g1D: All standard 1D symbologies
1400gPDF: All standard 1D and PDF417 symbologies
1400g2D: All standard 1D, PDF417 and 2D symbologies
2D bar codes are becoming increasingly popular across a wide range of industries for a number of reasons. Some enterprises have a desire to capture large amounts of data, despite space constraints, while others are being required to read 2D bar codes due to government regulations or supplier mandates. And an even larger group of enterprises simply have the desire to leverage emerging trends that require area-imaging technology, today or in the future, without needing to purchase additional scanning hardware. Enterprises that recognize the importance of upgrading to area-imaging scanners are generally unwilling to accept a decline in scan performance. They are also looking for a solution that is capable of reading traditional paper-based bar codes, as well as bar codes found on alternative mediums, such as mobile phone screens. Built on the platform of Honeywell's world-renowned Voyager series of hand-held linear scanners, the Voyager 1400g delivers omnidirectional reading of linear bar codes, plus the ability to affordably upgrade the device to enable PDF and 2D bar code scanning-at the time of purchase or as scanning needs evolve. Performing at speeds that are comparable to laser-based scanners, the versatile and reliable Voyager 1400g can be customized to meet current and future scanning needs, lowering the total cost of ownership. With no need for additional functionality beyond linear and 2D bar code scanning, many enterprises are unwilling to pay for fully-featured areaimaging scanners. The Voyager 1400g enables PDF and 2D bar code scanning without extra value-added features, such as advanced image capture and processing applications, allowing Honeywell to offer 2D scanning at an attractive price. The Voyager 1400g offers an exceptional value for enterprises that require the versatility of area-imaging technology today or may need it in the future. Produced by a company with more than 15 years of experience in engineering quality area-imaging solutions, Honeywell's Voyager 1400g area-imaging scanner is a smart investment.
RS-232 (+5V signals), black, DB-9 Male, 3m (9.8'), coiled, external power with option for host power on pin 9 for connection to Wincor Beetle. Non-Cancelable/Non-Returnable.
Charge Only Cradle / Base (No Communication), Single Slot, Presentation style for hands free scanning, Compatible with Honeywell Xenon 1902 and Voyager 1452g. Power supply Purchased Separately (46-00525-6).
4-Bay Battery Charger. Includes North American desktop power supply, two mounting screws and instructions. Compatible with Honeywell 1202g, 3820, 3820I, 4820, 4820i, 1902, and 19011i Lithium Batteries. US Plug (Part# 50122315-001) sold separately.
4-Bay Battery Charger for use with Granit 1911i, Voyager 12xxg, Xenon 1902, 1952, Granit 1981i, Voyager 1452g, 1472g,3820, 3820I, 4820, 4820I, and 6320DPM scanners. Charges the Lithium-ion Batteries outside of the scanner. Includes North America Wallmount Power supply, Two Mounting Screws, and Instructions.
In Stock
$592.79
Top General Software Purchased With Honeywell 1400GPDF-2USB-1-N
Remote MasterMind - 1D or 2D Scanning Device Maintenance & Support Extension - one year term maintenance and support extension per managed scanner (must be ordered with matching new client license) to obtain this special pricing.
Charge Only Cradle / Base (No Communication), Single Slot, Presentation style for hands free scanning, Compatible with Honeywell Xenon 1902 and Voyager 1452g. Power supply Purchased Separately (46-00525-6).
What barcode symbologies does the Honeywell 1400g scanner support?
The Honeywell 1400g supports all standard 1D symbologies including UPC, Code 128, and Code 39. The 1400g2D variant we offer also decodes PDF417 and 2D symbologies like QR codes, making it ideal for enterprises that need versatile area imaging technology. This flexibility allows you to future-proof your scanning infrastructure as your barcode requirements evolve.
Is the Honeywell 1400g suitable for retail and warehouse environments?
Yes, the 1400g is an excellent choice for both retail and warehouse applications. It features area imaging technology that reads barcodes at various angles without manual repositioning, and it's designed to withstand 30 drops from 5 feet to concrete. The scanner's IP42 environmental sealing and ability to operate in light levels from 0 to 100,000 lux make it reliable in demanding warehouse and retail settings.
What connectivity options are available with the Honeywell 1400g?
The 1400g offers multiple host system interfaces including USB, Keyboard Wedge, RS232, and IBM 46xx (RS485) connectivity. Our 1400GPDF-2USB-1-N model specifically features USB connectivity, which provides both data transmission and power delivery for seamless integration with modern POS and warehouse management systems. Contact us today to discuss which connectivity option best fits your infrastructure.
What are the power consumption specifications for the Honeywell 1400g?
The 1400g operates at 4.0 to 5.5 VDC with an operating power consumption of 2W (400mA @ 5 VDC) and standby power of 0.45W (90mA @ 5 VDC). This low power draw makes it ideal for environments where power efficiency is important, and the USB connection available from us provides both power and data over a single cable.
How durable is the Honeywell 1400g for industrial use?
The Honeywell 1400g is built for industrial durability with a 5-year factory warranty and engineering designed to withstand 30 drops from 5 feet to concrete. It features IP42 environmental sealing and operates reliably in temperatures from 0°C to 40°C with humidity up to 95% non-condensing, making it suitable for harsh warehouse and logistics environments. Visit barcodesinc.com to explore our full range of rugged scanning solutions.
What is the scan range and reading capability of the 1400g area imager?
The 1400g uses a 640 x 480 pixel area imaging array with a horizontal scan angle of 42.4° and vertical scan angle of 30.8°, allowing it to read barcodes across a wide field of view. It can read barcodes moving at up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus and requires a minimum 35% reflectance difference for reliable decoding. This makes it highly versatile for both presentation and motion-based scanning applications available from us.
The Honeywell 1400GPDF-2USB-1-N Barcode Scanner is also known as
HSM-1400GPDF2USB1N
or 1400GPDF2USB1N.
Full specifications (PDF)
