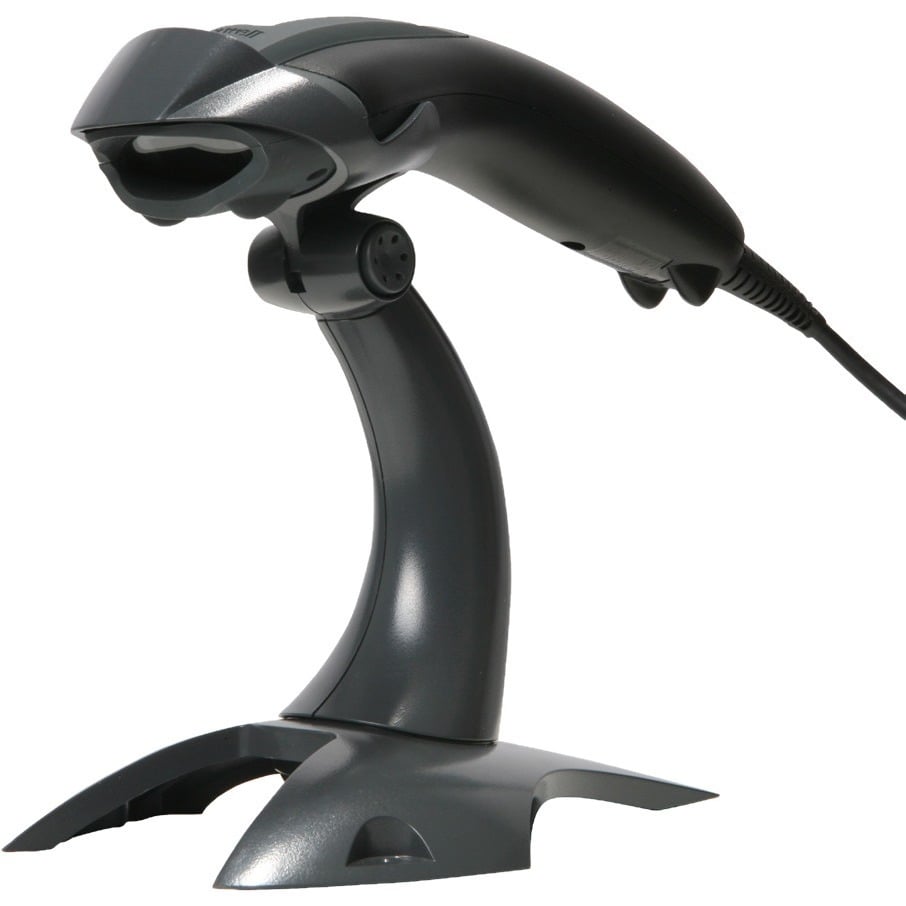

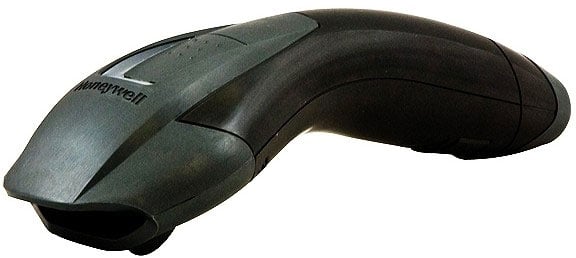

The Honeywell Voyager 1400g Area-Imaging Scanner is designed to adapt to the evolving needs of businesses, providing exceptional performance for reading 2D and linear bar codes. This reliable scanner combines versatility with affordability, enabling users to capture vast amounts of data with ease, whether from printed bar codes or mobile screens. With the ability to upgrade scanning capabilities as requirements change, the Voyager 1400g is an investment that ensures top-notch performance without the need for expensive additional hardware.
Key Features
Reliable Data Collection: Omnidirectional scanning of virtually all linear and 2D bar codes, including mobile and low-quality bar codes.
Remote MasterMind™ Ready: Significantly lowers ownership costs with a turnkey remote management solution.
Future Proof: Affordable scanning for current and future barcode needs all in one device.
Flexible Licensing Solution: Basic functionality with the option to purchase software licenses for advanced features as needed.
Specifications
Mechanical:
Dimensions: 43 mm x 180 mm x 66 mm (1.7" x 7.1" x 2.6")
Weight: 119 g (4.2 oz)
Electrical:
Input Voltage: 4.0 to 5.5 VDC
Operating Power: 2 W (400mA @ 5 VDC)
Standby Power: 0.45 W (90mA @ 5 VDC)
Environmental:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 0% to 95% relative, non-condensing
Drop: Withstands 30 drops from 1.5 m (5 ft) onto concrete
Environmental Sealing: IP42
Light Levels: 0 to 100,000 lux (9,290 foot-candles)
Scan Performance:
Scan Pattern: Area Image (640 x 480 pixel array)
Motion Tolerance: Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
Scan Angle: Horizontal 42.4°; Vertical 30.8°
Symbol Contrast: 35% minimum reflectance difference
Pitch, Skew: 60°, 70°
Decode Capability:
1400g1D: All standard 1D symbologies
1400gPDF: All standard 1D and PDF417 symbologies
1400g2D: All standard 1D, PDF417 and 2D symbologies
Warranty: 5 year factory warranty
Honeywell 1400GPDF-1 Barcode Scanner Overview
Honeywell's Voyager® 1400g is the ultimate 2D barcode scanner. This linear imager is capable of reading even poor quality and mobile 2D barcodes. 2D barcode scanners are becoming increasingly popular across a wide range of industries for a number of reasons. Enterprises have a growing need to capture large amounts of data, despite space constraints, while others are being required to read 2D barcodes due to government regulations or supplier mandates. An even larger group of enterprises simply have the desire to leverage emerging trends that require linear imagers with advanced area-imaging technology, without needing to purchase additional scanning hardware. The 1400g's features go above and beyond in meeting 2D scanning needs.
RS-232 (+5V signals), black, DB-9 Male, 3m (9.8'), coiled, external power with option for host power on pin 9 for connection to Wincor Beetle. Non-Cancelable/Non-Returnable.
Charge Only Cradle / Base (No Communication), Single Slot, Presentation style for hands free scanning, Compatible with Honeywell Xenon 1902 and Voyager 1452g. Power supply Purchased Separately (46-00525-6).
4-Bay Battery Charger. Includes North American desktop power supply, two mounting screws and instructions. Compatible with Honeywell 1202g, 3820, 3820I, 4820, 4820i, 1902, and 19011i Lithium Batteries. US Plug (Part# 50122315-001) sold separately.
4-Bay Battery Charger for use with Granit 1911i, Voyager 12xxg, Xenon 1902, 1952, Granit 1981i, Voyager 1452g, 1472g,3820, 3820I, 4820, 4820I, and 6320DPM scanners. Charges the Lithium-ion Batteries outside of the scanner. Includes North America Wallmount Power supply, Two Mounting Screws, and Instructions.
In Stock
$592.79
Top General Software Purchased With Honeywell 1400GPDF-1
Remote MasterMind - 1D or 2D Scanning Device Maintenance & Support Extension - one year term maintenance and support extension per managed scanner (must be ordered with matching new client license) to obtain this special pricing.
Charge Only Cradle / Base (No Communication), Single Slot, Presentation style for hands free scanning, Compatible with Honeywell Xenon 1902 and Voyager 1452g. Power supply Purchased Separately (46-00525-6).
What memory specifications does the Cisco UCS-NVMEM6-W1600 support?
The Cisco UCS-NVMEM6-W1600 is a 1.6TB 2.5-inch U.2 NVMe drive featuring WD SN840 Extreme Performance storage technology. This enterprise-grade NVMe solution is designed for high-performance server environments requiring fast data access and reliable storage. We offer this Cisco component as part of our comprehensive server parts inventory available from barcodesinc.com.
Is the Cisco UCS-NVMEM6-W1600 compatible with UCS server systems?
Yes, the Cisco UCS-NVMEM6-W1600 is engineered specifically for Cisco UCS server and compute node deployments. The U.2 form factor and NVMe interface ensure seamless integration with compatible UCS platforms. Contact us today to verify compatibility with your specific server configuration.
What are the typical use cases for the 1.6TB UCS NVMe drive?
The Cisco UCS-NVMEM6-W1600 is ideal for enterprise data centers, high-performance computing clusters, and virtualized environments requiring fast storage I/O and large capacity. Its 1.6TB capacity and WD SN840 performance characteristics make it suitable for database servers, analytics workloads, and mission-critical applications. Visit barcodesinc.com to explore our full range of Cisco server storage solutions.
How does the WD SN840 NVMe technology improve server performance?
The WD SN840 Extreme Performance NVMe drive delivers significantly faster read/write speeds compared to traditional SATA SSDs, reducing latency and improving application responsiveness in server environments. This technology is particularly beneficial for workloads involving large data transfers, virtualization, and real-time analytics. We offer this high-performance storage component to optimize your data center infrastructure.
What warranty and support does Cisco provide for the UCS-NVMEM6-W1600?
Cisco UCS server components, including the UCS-NVMEM6-W1600, typically include a 3-year warranty covering hardware defects and failures. Our team at Barcodes Inc can provide detailed warranty information and support options for your purchase. Contact us today for complete coverage details and enterprise support options.
Can I upgrade my existing Cisco UCS servers with the UCS-NVMEM6-W1600 drive?
The Cisco UCS-NVMEM6-W1600 can be integrated into compatible UCS server platforms that support U.2 NVMe form factor drives. Before upgrading, verify your server model's storage specifications and available drive bays. Contact us today—our team can help you determine compatibility and provide guidance on integrating this drive into your existing infrastructure.
The Honeywell 1400GPDF-1 Barcode Scanner is also known as
HSM-1400GPDF-1
or 1400GPDF1.
Full specifications (PDF)
