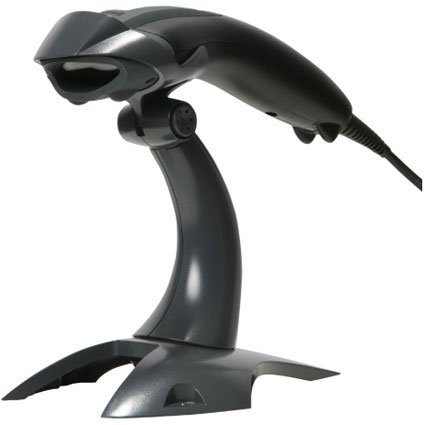

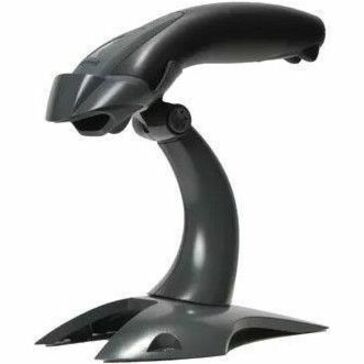

The Honeywell Voyager 1400g Area-Imaging Scanner is designed to adapt to the evolving needs of businesses, providing exceptional performance for reading 2D and linear bar codes. This reliable scanner combines versatility with affordability, enabling users to capture vast amounts of data with ease, whether from printed bar codes or mobile screens. With the ability to upgrade scanning capabilities as requirements change, the Voyager 1400g is an investment that ensures top-notch performance without the need for expensive additional hardware.
Key Features
Reliable Data Collection: Omnidirectional scanning of virtually all linear and 2D bar codes, including mobile and low-quality bar codes.
Remote MasterMind™ Ready: Significantly lowers ownership costs with a turnkey remote management solution.
Future Proof: Affordable scanning for current and future barcode needs all in one device.
Flexible Licensing Solution: Basic functionality with the option to purchase software licenses for advanced features as needed.
Specifications
Mechanical:
Dimensions: 43 mm x 180 mm x 66 mm (1.7" x 7.1" x 2.6")
Weight: 119 g (4.2 oz)
Electrical:
Input Voltage: 4.0 to 5.5 VDC
Operating Power: 2 W (400mA @ 5 VDC)
Standby Power: 0.45 W (90mA @ 5 VDC)
Environmental:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 0% to 95% relative, non-condensing
Drop: Withstands 30 drops from 1.5 m (5 ft) onto concrete
Environmental Sealing: IP42
Light Levels: 0 to 100,000 lux (9,290 foot-candles)
Scan Performance:
Scan Pattern: Area Image (640 x 480 pixel array)
Motion Tolerance: Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
Scan Angle: Horizontal 42.4°; Vertical 30.8°
Symbol Contrast: 35% minimum reflectance difference
Pitch, Skew: 60°, 70°
Decode Capability:
1400g1D: All standard 1D symbologies
1400gPDF: All standard 1D and PDF417 symbologies
1400g2D: All standard 1D, PDF417 and 2D symbologies
Warranty: 5 year factory warranty
Honeywell 1400G2D-2USB-N Barcode Scanner Overview
2D bar codes are becoming increasingly popular across a wide range of industries for a number of reasons. Some enterprises have a desire to capture large amounts of data, despite space constraints, while others are being required to read 2D bar codes due to government regulations or supplier mandates. And an even larger group of enterprises simply have the desire to leverage emerging trends that require area-imaging technology, today or in the future, without needing to purchase additional scanning hardware.
Enterprises that recognize the importance of upgrading to area-imaging scanners are generally unwilling to accept a decline in scan performance. They are also looking for a solution that is capable of reading traditional paper-based bar codes, as well as bar codes found on alternative mediums, such as mobile phone screens.
Built on the platform of Honeywell's world-renowned Voyager series of hand-held linear scanners, the Voyager 1400g delivers omnidirectional reading of linear bar codes, plus the ability to affordably upgrade the device to enable PDF and 2D bar code scanning-at the time of purchase or as scanning needs evolve. Performing at speeds that are comparable to laser-based scanners, the versatile and reliable Voyager 1400g can be customized to meet current and future scanning needs, lowering the total cost of ownership.
With no need for additional functionality beyond linear and 2D bar code scanning, many enterprises are unwilling to pay for fully-featured areaimaging scanners. The Voyager 1400g enables PDF and 2D bar code scanning without extra value-added features, such as advanced image capture and processing applications, allowing Honeywell to offer 2D scanning at an attractive price.
The Voyager 1400g offers an exceptional value for enterprises that require the versatility of area-imaging technology today or may need it in the future. Produced by a company with more than 15 years of experience in engineering quality area-imaging solutions, Honeywell's Voyager 1400g area-imaging scanner is a smart investment.
RS-232 (+5V signals), black, DB-9 Male, 3m (9.8'), coiled, external power with option for host power on pin 9 for connection to Wincor Beetle. Non-Cancelable/Non-Returnable.
Charge Only Cradle / Base (No Communication), Single Slot, Presentation style for hands free scanning, Compatible with Honeywell Xenon 1902 and Voyager 1452g. Power supply Purchased Separately (46-00525-6).
4-Bay Battery Charger. Includes North American desktop power supply, two mounting screws and instructions. Compatible with Honeywell 1202g, 3820, 3820I, 4820, 4820i, 1902, and 19011i Lithium Batteries. US Plug (Part# 50122315-001) sold separately.
4-Bay Battery Charger for use with Granit 1911i, Voyager 12xxg, Xenon 1902, 1952, Granit 1981i, Voyager 1452g, 1472g,3820, 3820I, 4820, 4820I, and 6320DPM scanners. Charges the Lithium-ion Batteries outside of the scanner. Includes North America Wallmount Power supply, Two Mounting Screws, and Instructions.
In Stock
$592.79
Top General Software Purchased With Honeywell 1400G2D-2USB-N
Remote MasterMind - 1D or 2D Scanning Device Maintenance & Support Extension - one year term maintenance and support extension per managed scanner (must be ordered with matching new client license) to obtain this special pricing.
Charge Only Cradle / Base (No Communication), Single Slot, Presentation style for hands free scanning, Compatible with Honeywell Xenon 1902 and Voyager 1452g. Power supply Purchased Separately (46-00525-6).
What type of barcode technology does the Honeywell 1400g use?
The Honeywell 1400g uses area imaging technology, which allows it to read both 1D barcodes and 2D codes like QR codes and PDF417 formats. This versatile imaging solution is ideal for enterprises that need flexibility in barcode capture today or may require expanded capabilities in the future. We offer the 1400g as a smart investment for growing businesses.
Is the Honeywell 1400g2d-2USB-N a corded or wireless scanner?
The Honeywell 1400g2d-2USB-N is a corded scanner that connects via USB interface, making it ideal for fixed workstations in retail, warehouse, and logistics environments. The USB connection provides both power and data transmission in a single reliable connection. Contact us today if you need guidance on corded versus wireless scanning solutions for your operation.
What are the main use cases for the Honeywell 1400g barcode scanner?
The Honeywell 1400g is well-suited for retail point-of-sale, warehouse inventory management, receipt scanning, and general-purpose barcode capture applications. Its area imaging technology makes it particularly valuable for businesses that need to scan multiple barcode formats or transition from 1D to 2D barcodes. Visit barcodesinc.com to explore how the 1400g fits your specific workflow requirements.
How does the Honeywell 1400g compare to other area imaging scanners?
The Honeywell 1400g represents an exceptional value proposition for enterprises seeking area imaging versatility without premium pricing. Built by Honeywell, a company with over 15 years of experience engineering quality imaging solutions, the 1400g delivers reliable 1D and 2D barcode reading in a handheld form factor. Our team can help you compare the 1400g with other options available from us to match your budget and performance needs.
What connectivity options does the 1400g barcode scanner offer?
The 1400g2d-2USB-N model features USB connectivity, which is the standard for most modern point-of-sale and computer systems. USB provides a straightforward plug-and-play connection with no additional configuration required in most environments. Contact us today if you need alternative connectivity options or have specific integration requirements.
Is the Honeywell 1400g suitable for warehouse and logistics operations?
Yes, the Honeywell 1400g is an excellent choice for warehouse and logistics environments where you need to capture both traditional 1D barcodes and modern 2D codes on shipping labels and inventory tags. Its handheld design and area imaging capability make it versatile for various picking, receiving, and sorting tasks. Visit barcodesinc.com or contact us today to discuss how the 1400g can improve your warehouse operations.
The Honeywell 1400G2D-2USB-N Barcode Scanner is also known as
HSM-1400G2D2USBN
or 1400G2D2USBN.
