Full specifications (PDF)
Recommended Usage:
Barcode Scanner

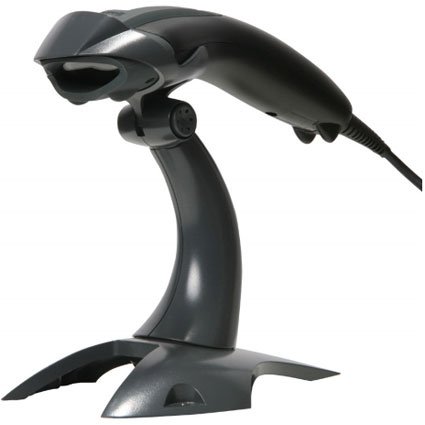

Honeywell Voyager 1400g – Barcode Scanner – Corded – 2D – Scanner with Cable and Stand
Part Number:
1400G2D-2USB-EZ-N
Model:
Voyager 1400g
Honeywell 1400g Barcode Scanner Model Overview
The Honeywell Voyager 1400g Area-Imaging Scanner is designed to adapt to the evolving needs of businesses, providing exceptional performance for reading 2D and linear bar codes. This reliable scanner combines versatility with affordability, enabling users to capture vast amounts of data with ease, whether from printed bar codes or mobile screens. With the ability to upgrade scanning capabilities as requirements change, the Voyager 1400g is an investment that ensures top-notch performance without the need for expensive additional hardware.
Key Features
- Reliable Data Collection: Omnidirectional scanning of virtually all linear and 2D bar codes, including mobile and low-quality bar codes.
- Remote MasterMind™ Ready: Significantly lowers ownership costs with a turnkey remote management solution.
- Future Proof: Affordable scanning for current and future barcode needs all in one device.
- Flexible Licensing Solution: Basic functionality with the option to purchase software licenses for advanced features as needed.
Specifications
- Mechanical:
- Dimensions: 43 mm x 180 mm x 66 mm (1.7" x 7.1" x 2.6")
- Weight: 119 g (4.2 oz)
- Electrical:
- Input Voltage: 4.0 to 5.5 VDC
- Operating Power: 2 W (400mA @ 5 VDC)
- Standby Power: 0.45 W (90mA @ 5 VDC)
- Environmental:
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
- Humidity: 0% to 95% relative, non-condensing
- Drop: Withstands 30 drops from 1.5 m (5 ft) onto concrete
- Environmental Sealing: IP42
- Light Levels: 0 to 100,000 lux (9,290 foot-candles)
- Scan Performance:
- Scan Pattern: Area Image (640 x 480 pixel array)
- Motion Tolerance: Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
- Scan Angle: Horizontal 42.4°; Vertical 30.8°
- Symbol Contrast: 35% minimum reflectance difference
- Pitch, Skew: 60°, 70°
- Decode Capability:
- 1400g1D: All standard 1D symbologies
- 1400gPDF: All standard 1D and PDF417 symbologies
- 1400g2D: All standard 1D, PDF417 and 2D symbologies
- Warranty: 5 year factory warranty
Technical Information
Physical Characteristics
Color Details:
Black
Miscellaneous
Cable Length:
4.92 ft
Package Contents:
USB Type A 1.5m Straight Cable
Compatibility:
Honeywell Voyager 1400g General Duty Scanner
Item Numbers
UNSPSC:
31162800
Recommended Accessories
Category
- Batteries (1)
- Cables, Connectors, and Adapters (19)
- Computer Accessories (1)
- Docks and Cradles (3)
- General Software (3)
- Miscellaneous (7)
- Mounting Hardware and Stands (1)
- Power Device (2)
- Scanner Accessories (10)
Recommended Accessories for Model: Honeywell 1400G2D-2USB-EZ-N Barcode Scanner
Top Batteries Purchased With Honeywell 1400G2D-2USB-EZ-N
-
Honeywell BAT-SCN01A BatteryReplacement battery, Lithium-ion. Compatible with Honeywell Voyager 1202g, 1452g, Xenon 1902, Granit 1911i, Granit 1981i, 3820 and 3820i cordless scanners.In Stock$83.31
Top Cables, Connectors, and Adapters Purchased With Honeywell 1400G2D-2USB-EZ-N
-
Honeywell CBL-500-300-S00 Cables, Connectors, and AdaptersAccessory, Honeywell USB Cable, Straight, Type A, 5V Host Power, 9.8' (3m) Length, Color: Black, Compatible with Select Honeywell Scanners.In Stock$33.11 -
Honeywell CBL-220-300-C00 Cables, Connectors, and AdaptersRS-232 (+5V signals), black, DB-9 Male, 3m (9.8'), coiled, external power with option for host power on pin 9 for connection to Wincor Beetle. Non-Cancelable/Non-Returnable.Item on backorder — chat for lead time$32.03 -
Honeywell CBL-720-300-C00 Cables, Connectors, and AdaptersKeyboard Wedge, black, PS2, 3m (9.8'), coiled, 5 V external power with option for host powerIn Stock$34.06
Top Computer Accessories Purchased With Honeywell 1400G2D-2USB-EZ-N
-
Honeywell CBL-720-300-C00 Cables, Connectors, and AdaptersKeyboard Wedge, black, PS2, 3m (9.8'), coiled, 5 V external power with option for host powerIn Stock$34.06
Top Docks and Cradles Purchased With Honeywell 1400G2D-2USB-EZ-N
-
Honeywell COB01 AccessoryCharge Only Cradle / Base (No Communication), Single Slot, Presentation style for hands free scanning, Compatible with Honeywell Xenon 1902 and Voyager 1452g. Power supply Purchased Separately (46-00525-6).In Stock$162.94 -
Honeywell MB4-BAT-SCN01NAD06 Accessory4-Bay Battery Charger. Includes North American desktop power supply, two mounting screws and instructions. Compatible with Honeywell 1202g, 3820, 3820I, 4820, 4820i, 1902, and 19011i Lithium Batteries. US Plug (Part# 50122315-001) sold separately.In Stock$603.60 -
Honeywell MB4-BAT-SCN01NAW06 Accessory4-Bay Battery Charger for use with Granit 1911i, Voyager 12xxg, Xenon 1902, 1952, Granit 1981i, Voyager 1452g, 1472g,3820, 3820I, 4820, 4820I, and 6320DPM scanners. Charges the Lithium-ion Batteries outside of the scanner. Includes North America Wallmount Power supply, Two Mounting Screws, and Instructions.In Stock$592.79
Top General Software Purchased With Honeywell 1400G2D-2USB-EZ-N
-
Honeywell TF2-EPDL SoftwareSoftware, Honeywell EasyDL, driver's license and ID parsing. (Decode Board serial number required for order processing.)In Stock$83.23 -
Honeywell SW-PDF-SCANNER SoftwareSOFTWARE, PDF417 LICENSE KEY FOR VOYAGER 1400G SERIES OF PRODUCTSItem on backorder — chat for lead time$70.63 -
Honeywell TF2-EZGS1 SoftwareSOFTWARE, EASYGS1 LICENSE KEY FOR XENON, VUQUESTItem on backorder — chat for lead time$103.43
Top Miscellaneous Purchased With Honeywell 1400G2D-2USB-EZ-N
-
Honeywell REM-CLIENT-SCAN ProductsRemote MasterMind - 1D or 2D Scanner license with one year of software maintenance and support includedItem on backorder — chat for lead time$23.90 -
Honeywell REM-MNT-SCAN-1MO ProductsRemote MasterMind - Bioptic Scanner Software Maint. & Support 'True-up' - one month ext. - use to Align existing and new device maint.Item on backorder — chat for lead time$10.60 -
Honeywell REM-MNT-SCAN-1YR ProductsRemote MasterMind - 1D or 2D Scanning Device Maintenance & Support Extension - one year term maintenance and support extension per managed scanner (must be ordered with matching new client license) to obtain this special pricing.Item on backorder — chat for lead timePlease Call for Pricing or to Purchase
Top Mounting Hardware and Stands Purchased With Honeywell 1400G2D-2USB-EZ-N
-
Honeywell STND-15F03-009-6 AccessoryStand, Flexible Rod, Weighted Mid-Sized Universal Base, 6", Gray, Compatible with Honeywell Voyager 1250g.Item on backorder — chat for lead time$41.09
Top Power Device Purchased With Honeywell 1400G2D-2USB-EZ-N
-
Honeywell 46-00525-6 Power DeviceAccessory, Honeywell Power Supply, 1A Output Current, 90 to 255 AC Input Voltage, North American Plug, Compatible with Select Honeywell Scanners.In Stock$56.43 -
Honeywell PS-050-4000D-NA-6 Power DevicePOWER SUPPLY, N.A. PLUG, 5VDC 4AMP, DESKTOP, LEVEL 6Item on backorder — chat for lead time$103.37
Top Scanner Accessories Purchased With Honeywell 1400G2D-2USB-EZ-N
-
Honeywell 46-00525 AccessoryPower supply, North American plug, 1A output current, 90 to 255 AC input voltage, 50-60 Hz, 5.2 VDCItem on backorder — chat for lead timePlease Call for Pricing or to Purchase -
Honeywell COB01 AccessoryCharge Only Cradle / Base (No Communication), Single Slot, Presentation style for hands free scanning, Compatible with Honeywell Xenon 1902 and Voyager 1452g. Power supply Purchased Separately (46-00525-6).In Stock$162.94
-
Honeywell HOLDER-004-U AccessoryDesktop/wall mount holder for Voyager 1200G. Non-Cancelable/Non-Returnable.In Stock$31.33
Frequently Asked Questions
What barcode types can the Honeywell 1400G2D scanner read?
The Honeywell 1400G2D decodes all standard 1D symbologies, PDF417, and 2D barcodes, making it versatile for enterprise environments that need comprehensive barcode coverage. This area imaging technology allows you to capture driver's licenses, QR codes, and traditional linear barcodes from a single device. We offer the 1400G2D as a smart investment for warehouses and logistics operations requiring multi-format scanning capabilities.
Is the Honeywell 1400G2D compatible with my existing USB system?
Yes, the 1400G2D connects via USB and is plug-and-play compatible with standard Windows and Linux systems. It also supports alternative interfaces including Keyboard Wedge, RS232, and IBM 46xx (RS485) if needed for legacy systems. Contact us today to verify compatibility with your specific IT infrastructure.
How durable is the Honeywell 1400G2D for warehouse environments?
The 1400G2D is engineered to withstand 30 drops from 1.5 meters (5 feet) to concrete and operates reliably in temperatures from 0°C to 40°C with up to 95% humidity. It features IP42 environmental sealing to protect against dust and moisture in demanding warehouse conditions. The device includes a 5-year factory warranty, backed by Honeywell's 15+ years of area imaging expertise.
What is the scan range and speed of the Honeywell 1400G2D?
The 1400G2D uses a 640 x 480 pixel area imaging sensor with motion tolerance up to 10 cm/s (4 in/s) for 13 mil UPC codes at optimal focus. It offers a horizontal scan angle of 42.4° and vertical angle of 30.8°, allowing flexible scanning positions in logistics operations. The scanner handles pitch and skew angles up to 60° and 70°, accommodating real-world warehouse scanning scenarios.
How much power does the Honeywell 1400G2D consume?
The 1400G2D operates at just 2W during active scanning (400mA @ 5 VDC) and draws only 0.45W in standby mode, making it energy-efficient for continuous warehouse operations. The low power consumption reduces operational costs and heat generation in high-volume scanning environments. Visit barcodesinc.com for integration guidance on power management with your existing infrastructure.
Can the Honeywell 1400G2D read barcodes in bright warehouse lighting?
Yes, the 1400G2D is rated for light levels from 0 to 100,000 lux (9,290 foot-candles), meaning it performs reliably in both dimly lit storage areas and brightly lit packing stations. The area imaging technology automatically adapts to varying ambient light conditions without manual adjustment. We offer the 1400G2D for logistics environments where lighting conditions vary throughout the facility.
The Honeywell 1400G2D-2USB-EZ-N Barcode Scanner is also known as
HSM-1400G2D2USBEZN
